Product Name |

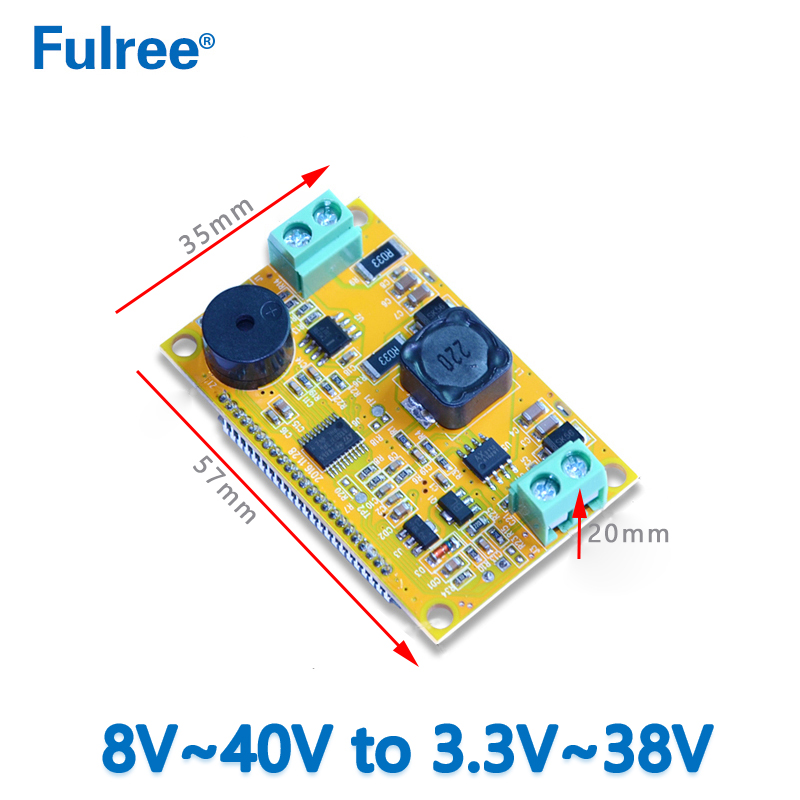

Fulree DC DC Converter Module 8-40V to 3.3-38V Adjustable 3A |
|
|
Brand |
Fulree |
|
|
Model No. |
F08400333803 | |
|
Module Properties |
non-isolated buck module |
|
|
Rectification |
synchronous rectification |
|
|
Input |
||
|
Input Voltage |
DC 12V 24V |
|
|
Input Voltage Range |
DC 8-40V |
|
|
Output |
||
|
Output Voltage |
DC 3.3V-38V Adjustable (Only can be used as step down module, the input voltage must be 3V more than the output voltage,default set 5V) |
|
|
Output Current |
3A Max |
|
|
Output Power |
15W |
|
|
Conversion Efficiency |
90% | |
|
Voltage regulation |
±1% |
|
|
Load regulation |
± 2% |
|
|
Ripple (Full load test) |
< 150mV |
|
|
No-load current |
<100mA |
|
|
Working Temperature |
-20~125℃ |
|
|
Protection |
Over-current protection |
|
|
Short-circuit protection |
||
|
Reverse Polarity Protection |
||
|
Over-current Alarm: it can be adjusted, default set 3A |
||
|
Installation |

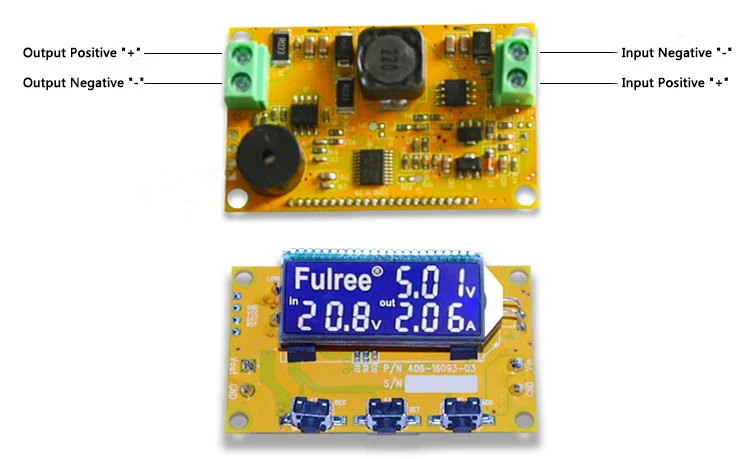

VIN---Input; VOUT---Output; GND---Ground | |
|
Application |
DIY 3A adjustable step down power supply module |
|
|
Certification |
CE/RoHS/FCC |
|
|

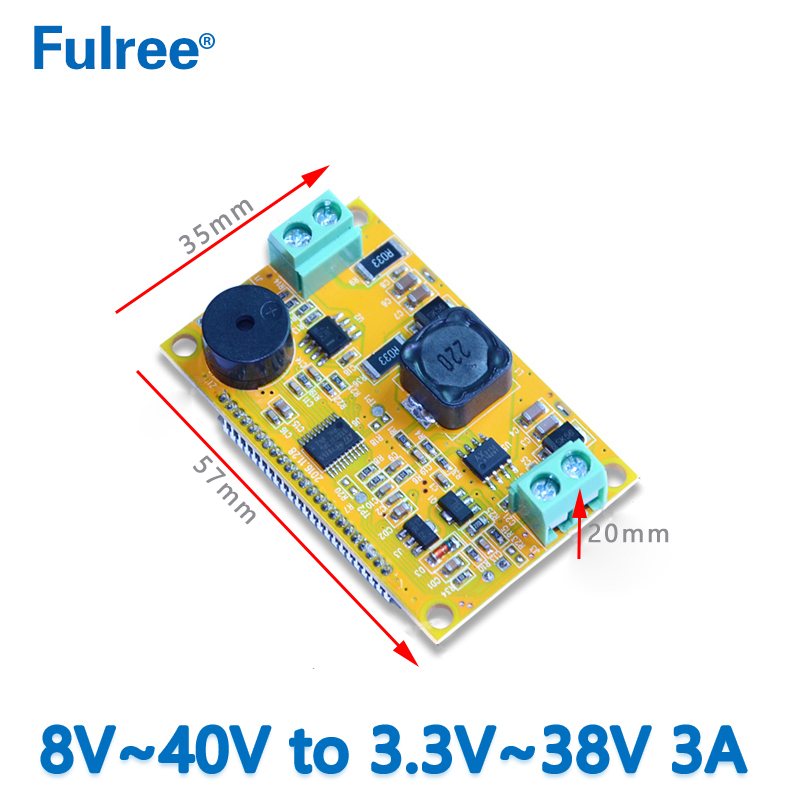

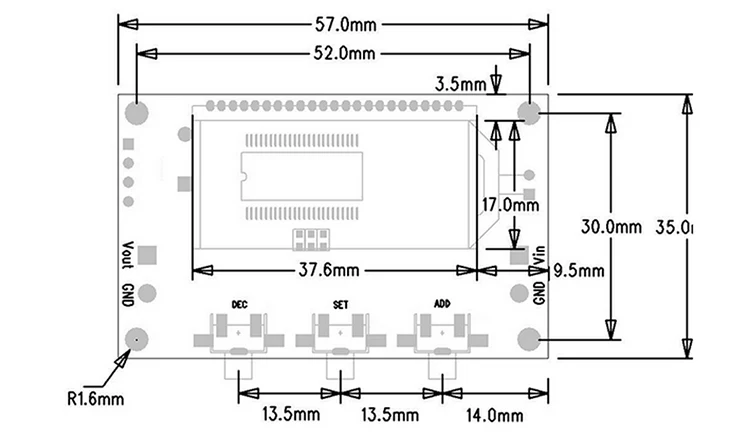

Product Size (L x W x H) |
57*35*20mm |
|
|
Product Weight |
N.W 26g/pc, G.W 30g/pc |
|
|
Warranty |
12 months, lifetime up to 100,000 hours |
|
|
Cooling Way |
Free air convection |
|
|
OEM&ODM Service |
Accept | |

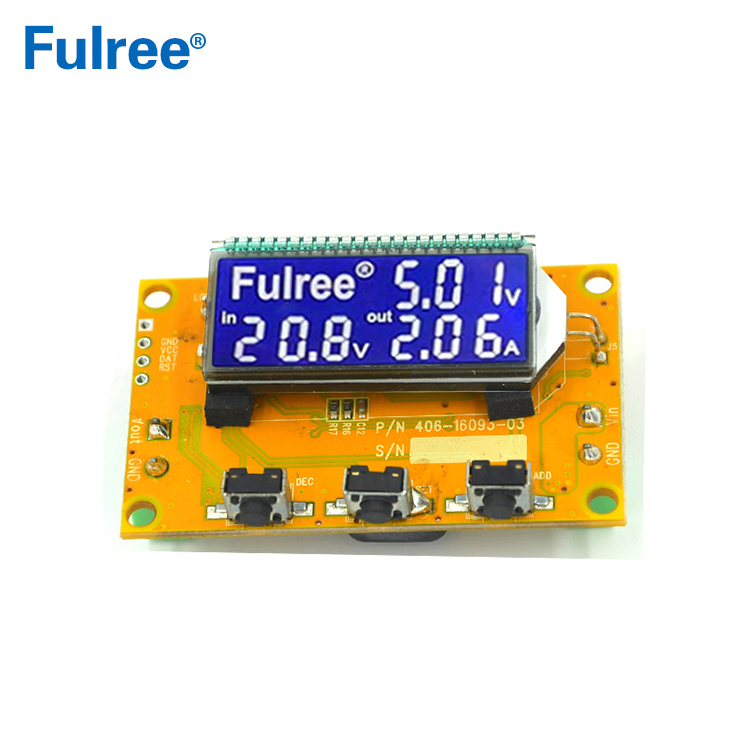

3A Adjustable Step Down Power Supply Module 8-40V to 3.3-38V with Dual Voltage and Current LED Display
