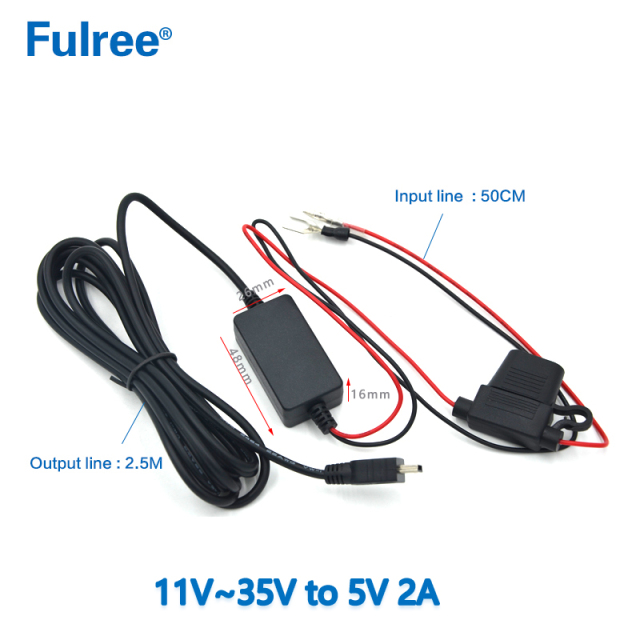

3M 10FT Mini Micro USB INPUT   DC  12V 24V (11V-35V) to  Output DC 5V  1A 2A (2.5A Max)Dash Cam Hardwire Kit Low Voltage Protection GPS Radar Detector Charging DC DC Converter

>Input voltage: DC 12V 24V (11V-35V)

>Output voltage: DC 5V

>Output current: 1A 2A (2.5A Max)

>Output Power: 12.5W Max

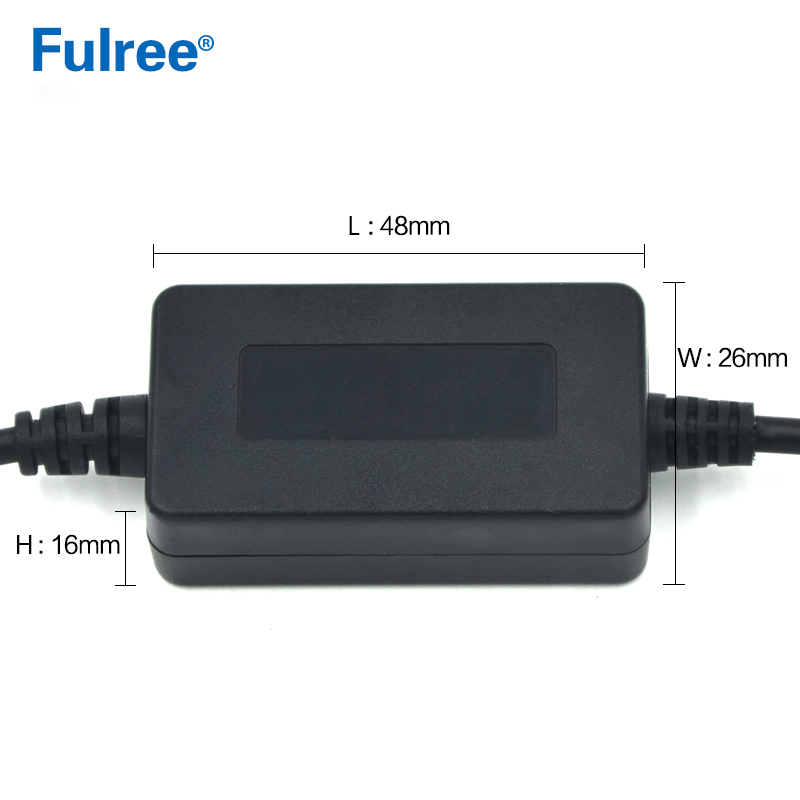

>Product Size: L48mm*W26mm*H16mm(not include the cable)

>Product Weight: 90g/pc

Benifits:



[Compatible 12 – 24V Vehicles]This hardwire kit connects the camera directly to the car, truck, bus, suvs, or big rig for continuously power, accepts voltage from any type of vehicles runs on 12 – 24V.

[24X7 Parking Surveillance]Directly to the battery for constant 24hrs/7days power to protect against theft when your car is in the parking lot.

[Power Supply]Directly to the ignition wire for power only so it can turn on and off with the ignition and you don't have to worry about plugging in the charger, or turning the dashcam on, or any such stuff.

[Low voltage protection]It has a smart low voltage protection system that will automatically shut off the power to your dash cam when the battery voltage drops to 11V, thus preventing it draining the battery.

[Mulitiple uses]Mini / Micro USB plug compatible with all mini usb dash cams GPS navigator and radar detector etc, it always frees up the cigarette lighter for other devices.



Specifications:

 • Module Properties: non-isolated buck module (BUCK)

 • Rectification: synchronous rectification • Minimum pressure difference: 3V

 • Conversion efficiency: 90% • Soft-start time: 500mS • Output ripple: 50mV (MAX) 20M-

bandwidth

 • Full load temperature rise: 50°c

 • Load regulation: ± 1%

 • Voltage regulation: ± 2%

 • Dynamic response speed: 5% 200uS • Operating Temperature: Industrial (-20°c to +65°c) ( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)



Feature:

  • 2.5A Over Current protection • 5.6V Over Voltage protection• 11V Low Voltage protection, Output Short-circuit protection • Waterproof: NONE

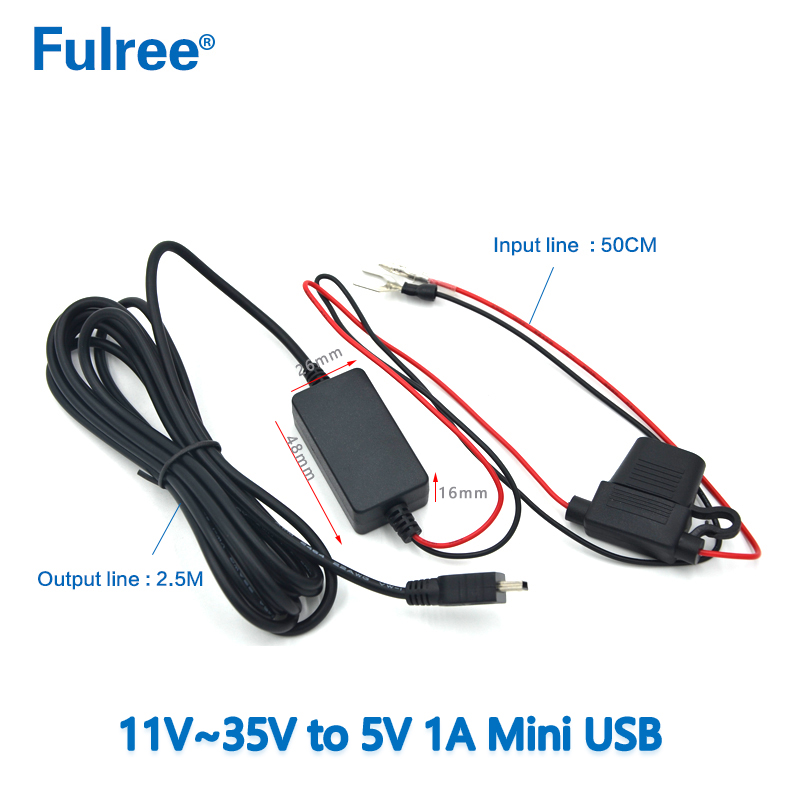

DC DC Converter 12V 24V to 5V 2.5A Max Output Mini USB

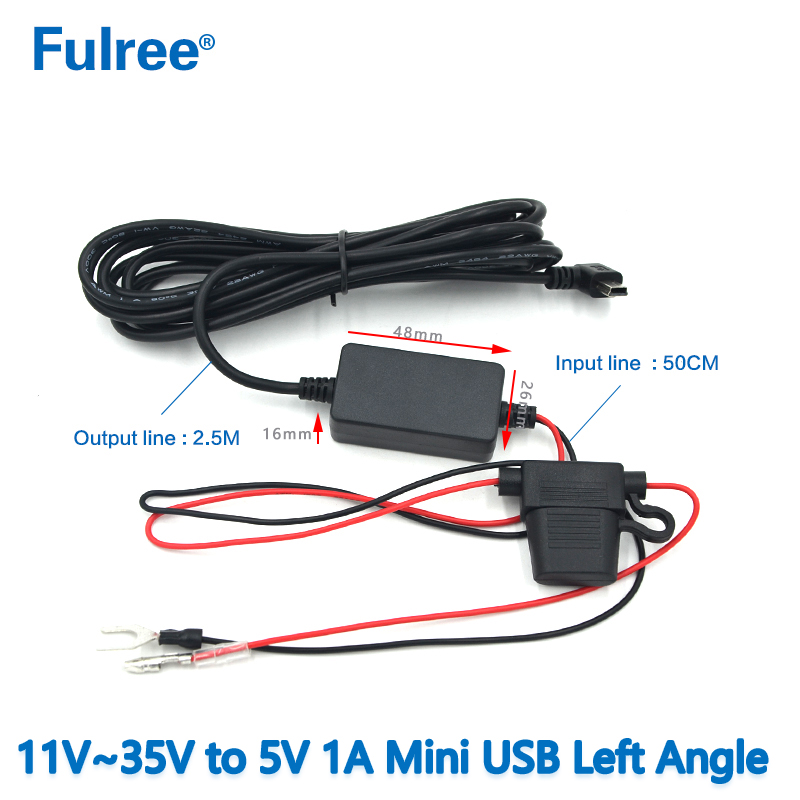

DC DC Converter 12V 24V to 5V 2.5A Max Output Mini USB Left Angled

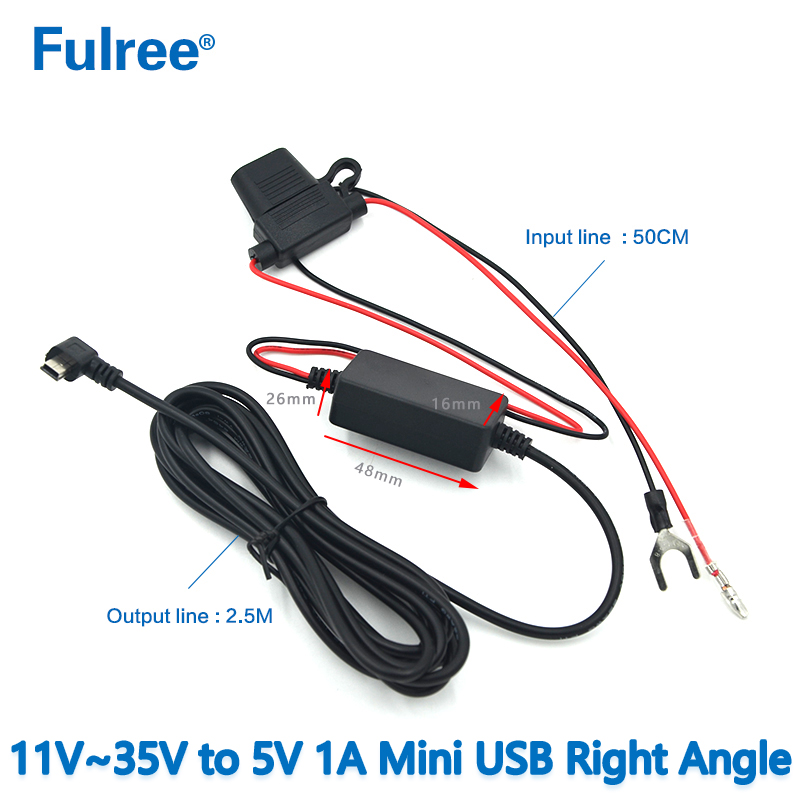

DC DC Converter 12V 24V to 5V 2.5A Max Output Mini USB Right Angled

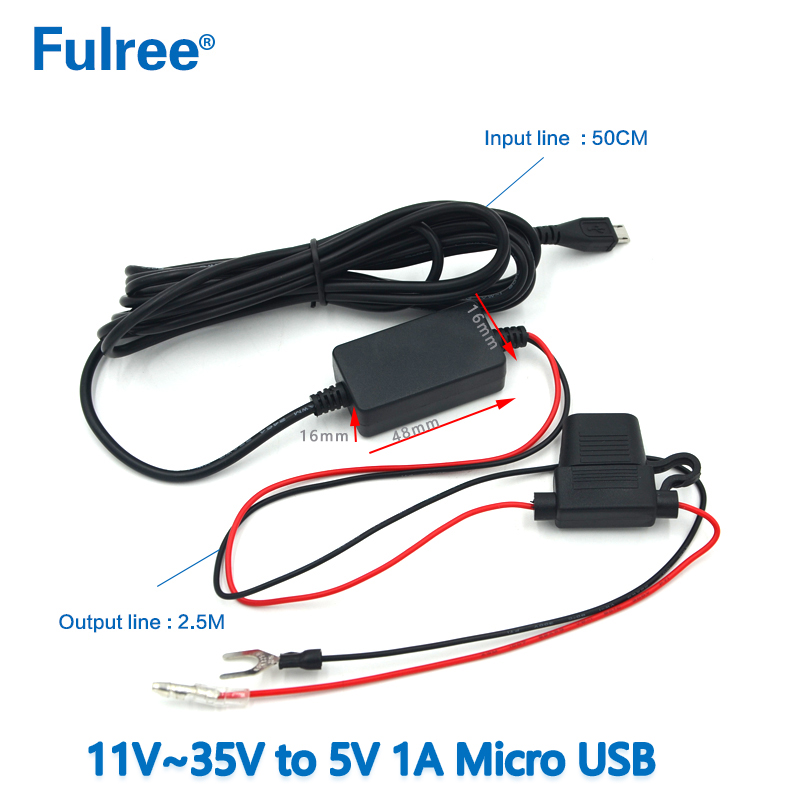

DC DC Converter 12V 24V to 5V 2.5A Max Output Micro USB

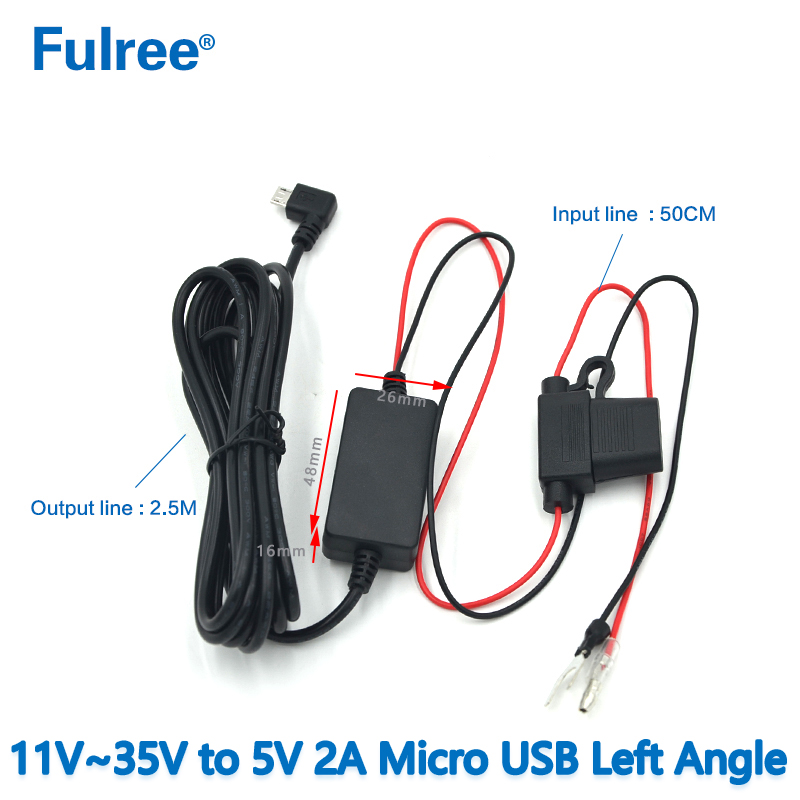

DC DC Converter 12V 24V to 5V 2.5A Max Output Micro USB Left Angled

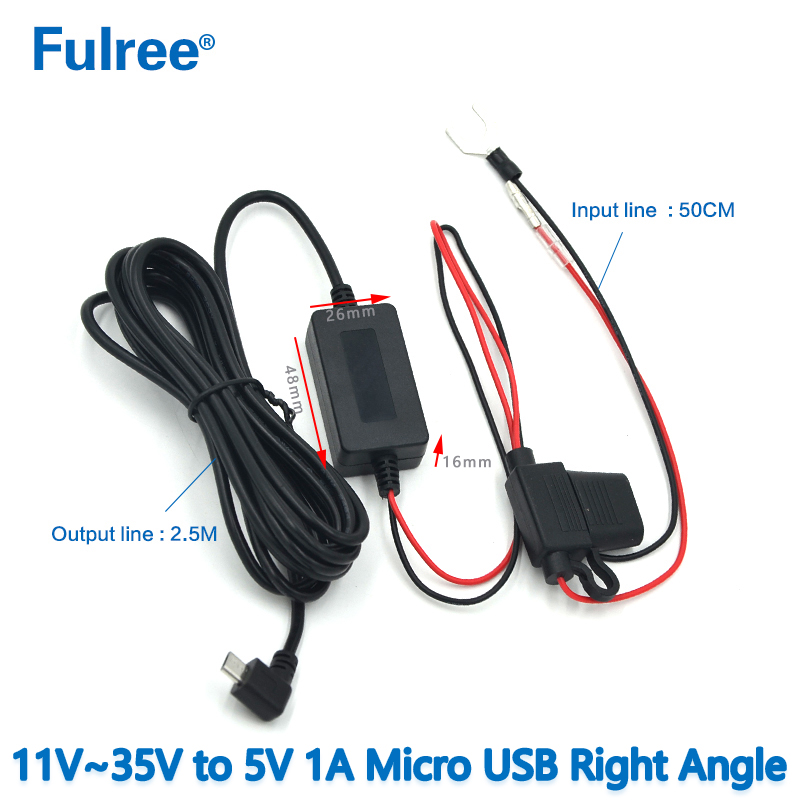

DC DC Converter 12V 24V to 5V 2.5A Max Output Micro USB Right Angled
