Input DC 12V/24V(8.5-40V) to Output DC 5V 3A 5A DC-DC converter
Input voltage: DC12V / 24V (Wide Voltage 8.5V-40V)
Output Voltage: DC: 5V
Output current: 3A 5A
Full power, high conversion rate: more than 90%, the power consumption 20MA
Ripple: 40MV, adapt to the environment temperature: -40 ℃ ~ + 85 ℃ industrial grade,Waterproof and shockproof, ABS flame retardant plastic casing, epoxy potting.
Protection: Enter the instant pressure, output over-current, output short circuit, chip overheating protection.
Welding wire mode, the connection as follows:
Input: red (+) black line (-)
Output: the yellow line (+) black line (-)

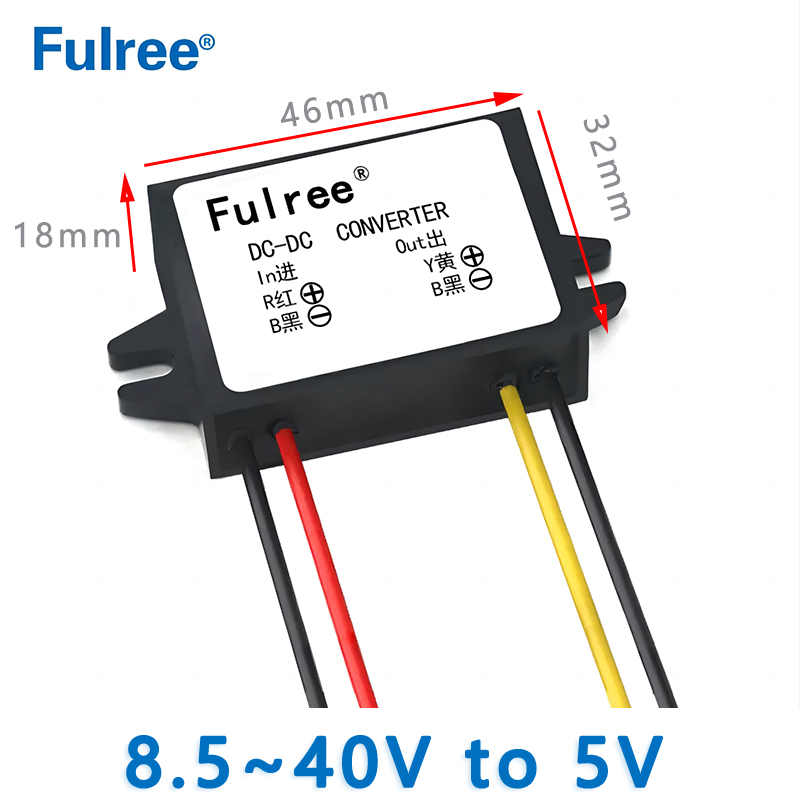

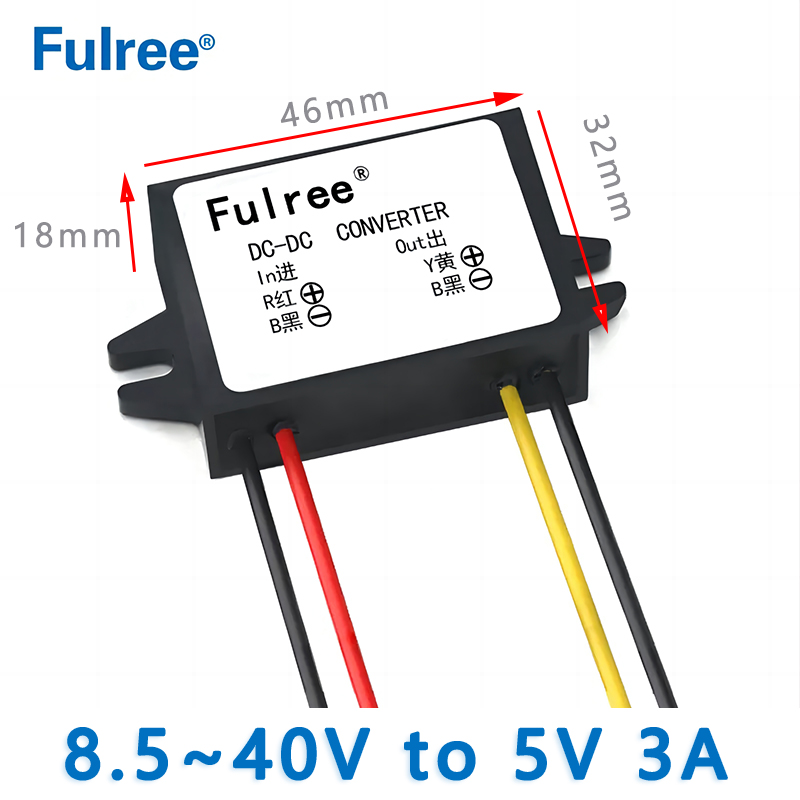

Slim volume: 46 * 32 * 18MM (L * W * H)
Weight: 53 g / month
Sale: normal use, shelf life of one year.
| Model | YS-1224-5V-15W/YS-1224-5-25W |
| Input rated voltage | DC12V/24V |
| Input voltage range | DC(8.5-40)V |
| Efficiency | up to 90% of the output |
| Output voltage | DC 5V |
| Output current | 3A 5A |
| Output rated power | 15 W 25W |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Ripple | 40MV |
| Working temperature | -40℃~+85℃ |
| Waterproof rating | IP68 |
| Over-voltage protection | YES |
| Over-current protection | YES |
| Over-temperature protection | YES |
| Short-circuit protection | NO |
| Item size | 46 * 32 * 18MM |
| N. Weight | 53g |
| Cooling way | Free air convection |
Product Details: DC-DC 12V24V turn 5V 10A 15A 20A 25A DC converter
Input voltage: DC 24V (wide voltage 8.5V-40V)
Output voltage: DC 5V
output current: 10A 15A 20A 25A.
As used in the LED car display, you can take 9-11 P10 monochrome board long-term work undefined.Non-isolated power supply, synchronous rectification, the main components imported brands.
Full power, high conversion rate: more than 93%, power consumption: 100MA
Ripple: 40MV, adapt to the environment temperature: -40 ℃ ~ + 85 ℃ industrial grade Using heat silicone potting, waterproof, shockproof.
Protection: Enter the instant pressure, output short circuit, output overcurrent, overtemperature protection chip.
Wiring instructions are as follows:
Input IN: red (+) black line (-), the output OUT: yellow line (+) black line (-)
(Note: No reverse polarity protection, wiring carefully, otherwise the power supply may be damaged)

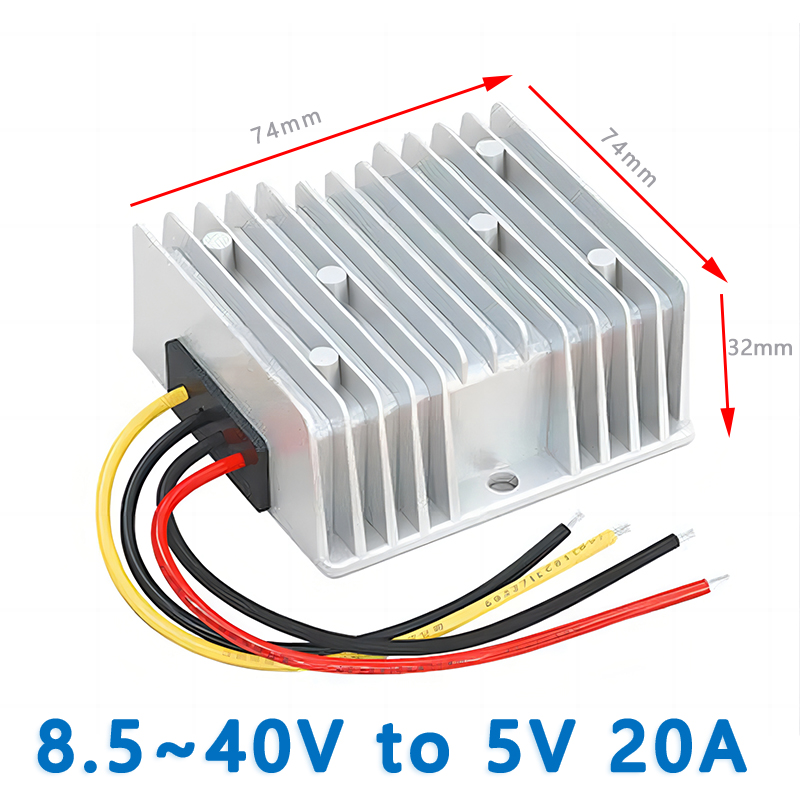

Volume Specifications: 74 * 74 * 32MM (L * W * H) Weight: 300 g / month
| Model | DC 12V/24V(8.5-40V) to DC 5V 10A 15A 20A 25A |
| Input rated voltage | DC12V/24V |
| Input voltage range | DC(8.5-40)V |
| Efficiency | up to 93% of the output |
| Output voltage | DC 5V |
| Output current | 10A 15A 20A 25A |
| Output rated power | 50 W 75W 100W 125W |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Ripple | 100MV |
| Working temperature | -40℃~+85℃ |
| Waterproof rating | IP68 |
| Over-voltage protection | YES |
| Over-current protection | YES |
| Over-temperature protection | YES |
| Short-circuit protection | NO |
| Item size | 74*74*32MM |
| N. Weight | 300g |
| Cooling way | Free air convection |
