Input DC 24V (15-40V) to Output DC 12V 2A / 3A / 5A Max DC converter Car CCTV DVR Camera Monitoring Power Supply
Product Description
|
Product Name
|
Fulree 24V DC TO 12V DC Converter Module
|
|
Brand
|
Fulree
|
|
Model No.
|
F24J12V2A4L / F24J12V3A4L / F24J12V5A4L
(Old: FJ24D12A2 / FJ24D12A3 / FJ24D12A5)
|
|
Module Properties
|
non-isolated buck module
|
|
Rectification
|
synchronous rectification
|
|
Input
|
|
Input Voltage
|
DC 24V
|
|
Input Voltage Range
|
DC 15-40V
|
|
Output
|
|
Output Voltage
|
DC 12V
|
|
Output Current
|
2A / 3A / 5A Max, auto-adaption
|
|
Output Power
|
24W / 36W / 60W Max
|
|
Conversion Efficiency
|
92%
|
|
Voltage regulation
|
±1%
|
|
Load regulation
|
± 2%
|
|
Ripple (Full load test)
|
< 100mV
|
|
No-load current
|
< 100mA
|
|
Working Temperature
|
-20~65℃
|
|
Waterproof Rating
|
IP68
|
|
Protection
|
Over-current protection
|
| Overheat Protection |
|
Short circuit Protection
|
|
Input/Output Reverse Polarity Protection
|
No, please follow label instructions wiring strictly: red for input positive, black is negative, yellow for output positive
|
|
Application
|
GPS Navigation, Monitoring,
Electrical appliances, industrial equipment and so on.
|
|
Certification
|
CE/RoHS
|
|
Case Material
|
Aluminum, anti-shock, anti-drop, anti-moisture, anti-dust and so on
|
|

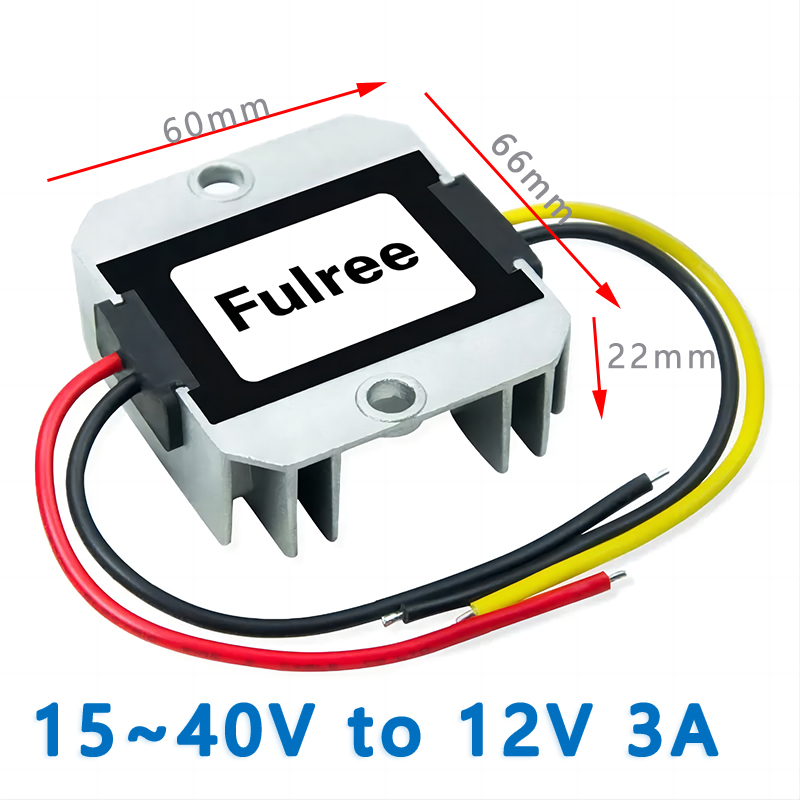

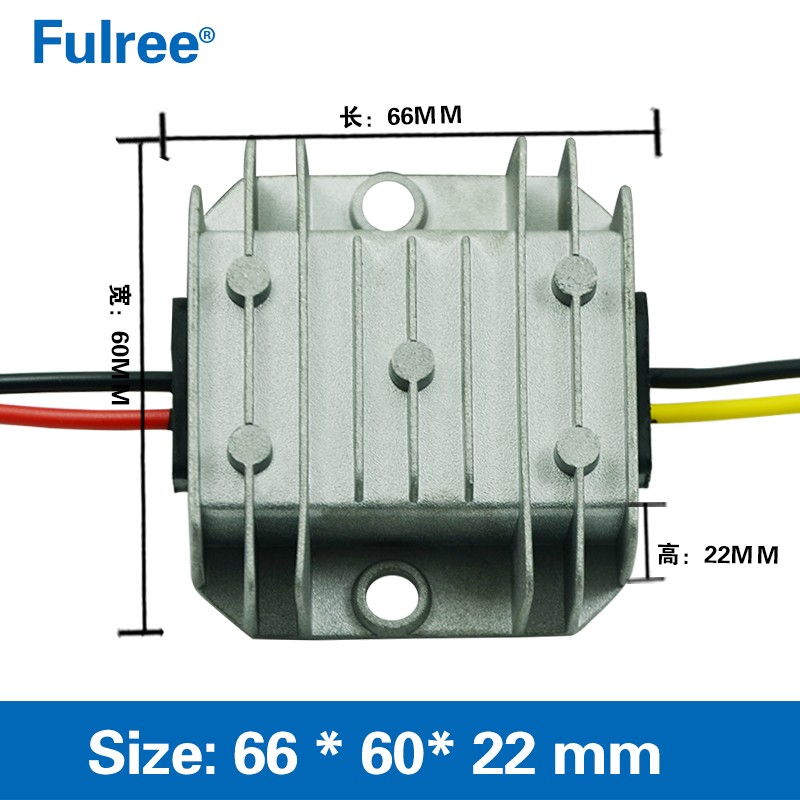

Product Size (L x W x H)
|
66*60*22mm
|
|
Installation Cable Length
|
13-14cm
|
|
Product Weight
|
125g
|
|
Warranty
|
12 months, lifetime >20,000 hours
|
|
Cooling Way
|
Free air convection
|
|
Customized Service
|
Accept customized converter such as input/output voltage, cable, interface and etc, Contact Fulree Now!
|

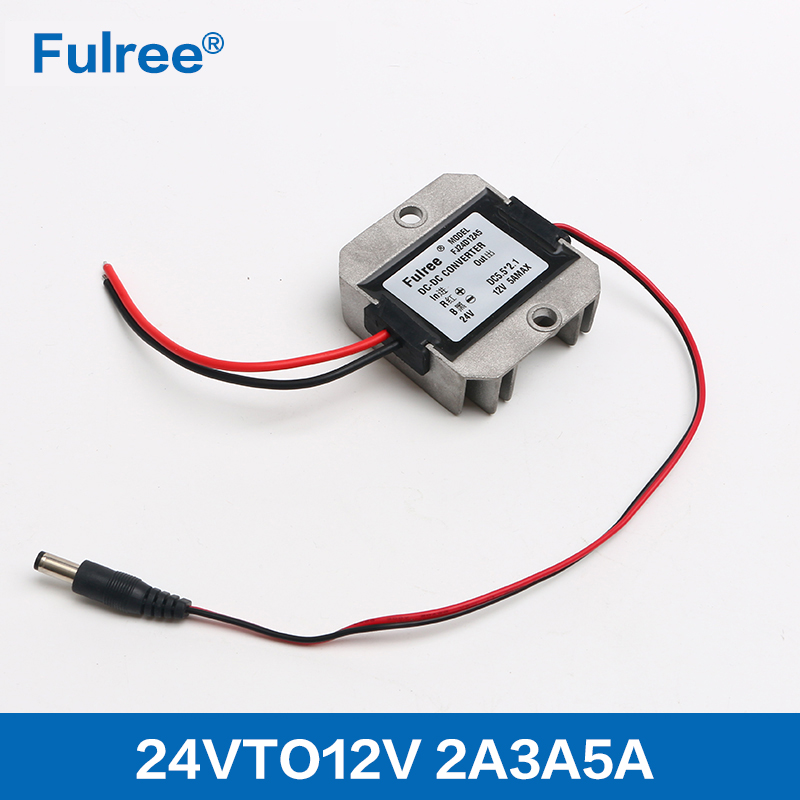

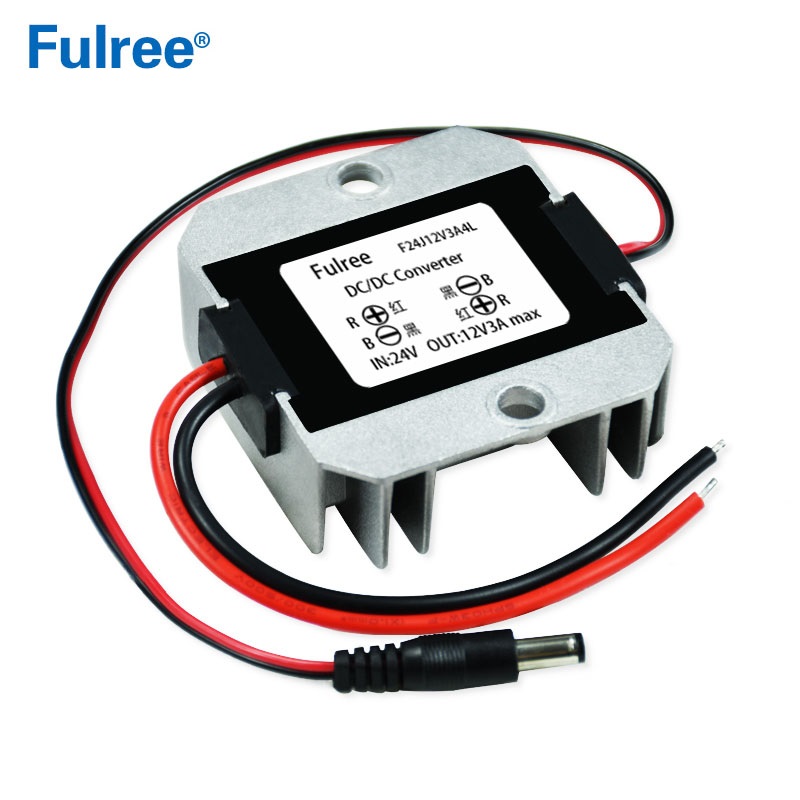

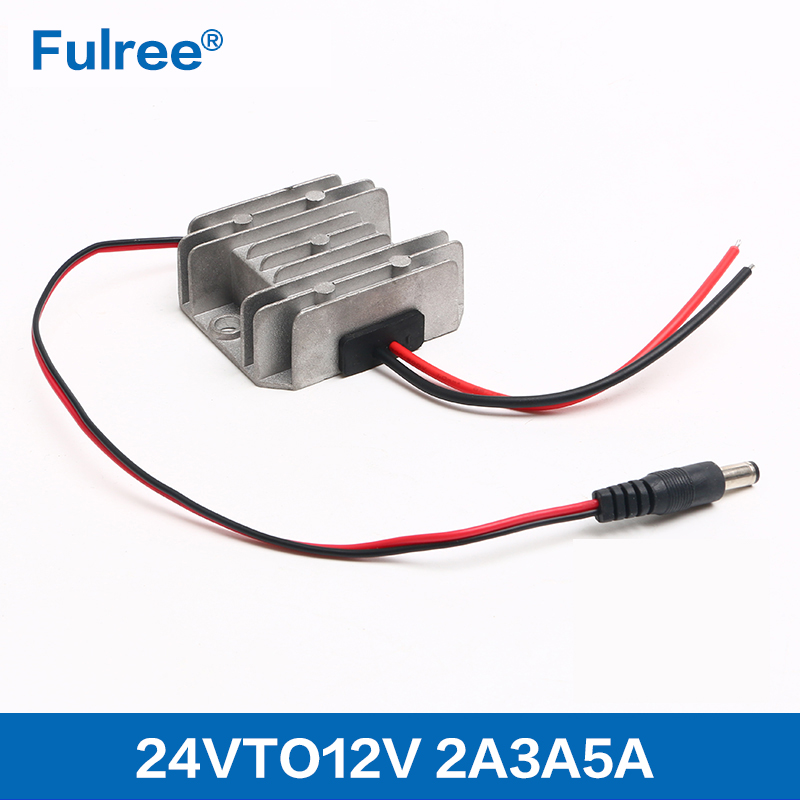

Product Picture
Why Choose Fulree?
Service ......... RMA(24/7 Technical Support), OEM, ODM
Quality...........100% full inspection before delivery, Less than 0.5% of failure rate!
Warranty....... Up to 12 months!
Price..................Competitive Factory Price!
Professional......Produce security DC DC converter for 8 years in China!
Reliable.............One of the largest power supply business manufacturers in China!
Assurance.........Any problem of quality, Fulree would refund the payment!
Payment.............T/T bank wire transfer, Escrow, West Union and Paypal!
Delivery...............Fast! After receive payment 3-15 days for normal small orders!
Privacy …….....Protect your sales area, designs, ideas and all your private information!
Fulree................Your best DC DC Converter Solution Choice! We Design and support!
FAQ
Attention
