Fulree Input DC 12V(10-16V ) to Output DC 24V 10A 25A 30A 40A 50A 80A 100A 240W 600W 720W 960W 1200W 1920W 2400W DC TO DC Step Up Converter
Input DC 12V(10V-16V) to Output DC 24V 10A max 240W car booster power supply waterproof DC-DC converter
Precautions:

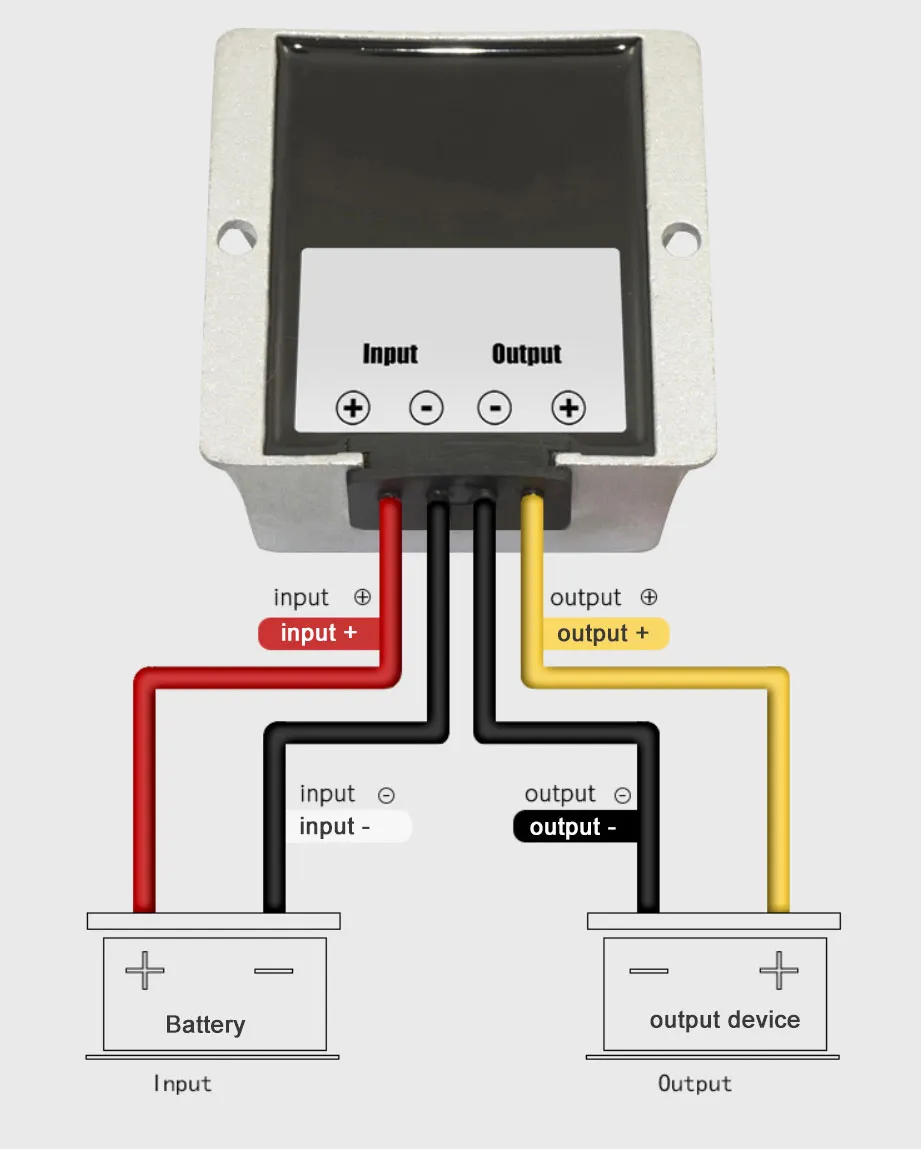

1. Make sure that all polarities are correct before wiring. Reverse connection will burn out the converter. Please connect the fuse at the input terminal (fuse not provided by the original factory)
2. Ensure that the battery energy and voltage are sufficient, otherwise the converter will be in the protection state.
3. Ensure that the installation environment is well ventilated to avoid over temperature protection and limit current output.
parameter
| Output current |
0-10A |
| Output power |
240W |
| Input voltage |
DC(10-16)V |
| Output voltage |
24V |
| Voltage accuracy |
±1% |
| Load regulation rate |
±0.2% |
| Linear adjustment rate |
±0.2% |
| No-load current |
≤70mA |
| Ripple |
<80mV |
| Conversion efficiency |
94%~96% |
| Module nature |
DC-DC non-isolated power supply module |
| Protection grade |
IP68 |
| Working temperature |
-35°C~+80°C |

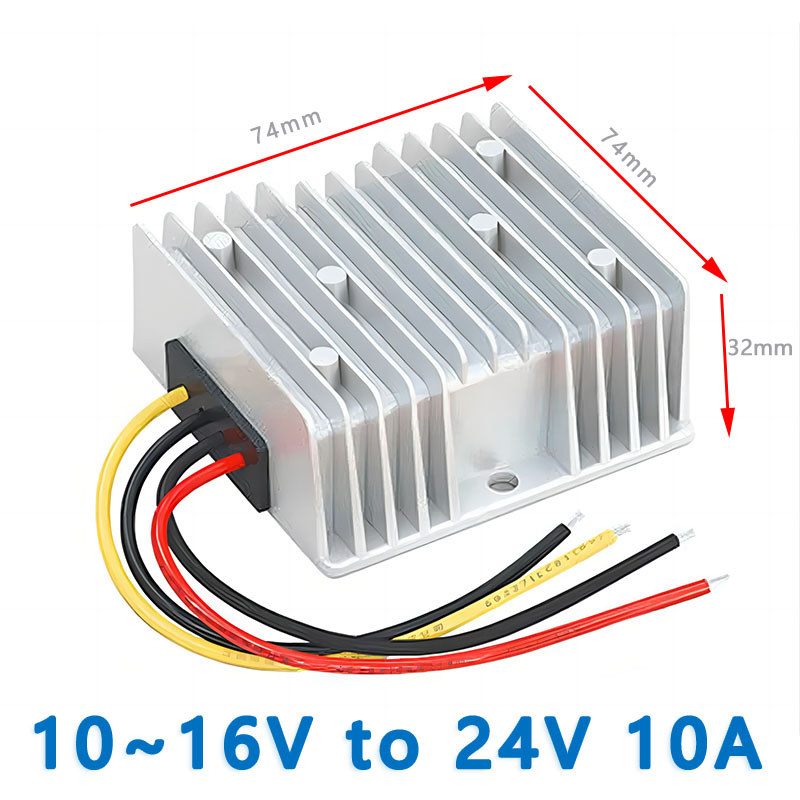

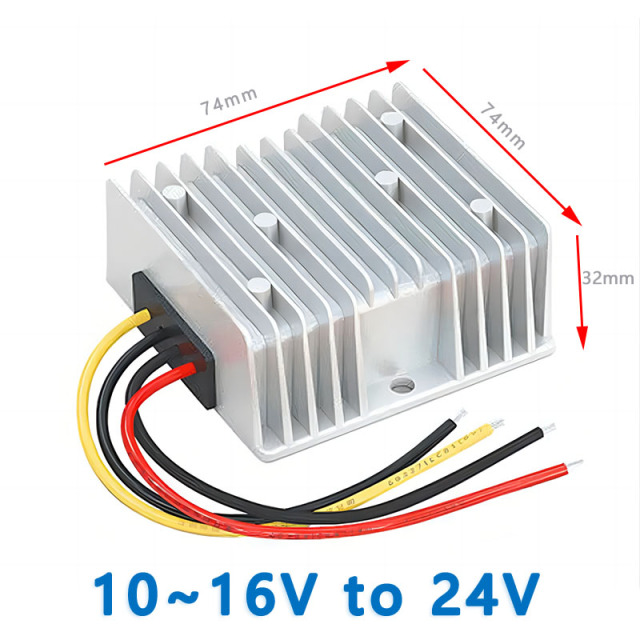

| Dimensions |
length 74*width 74*height 32mm |
| Net weight |
300g |
| Wiring mode: |
lead, wire length 16.5CM |
| Protection function |
• Over current protection
• Over voltage protection
• Over temperature rotection
• Short circuit protection
|
| Warranty time |
1 year |
| Lifespan |
>100000 hours |

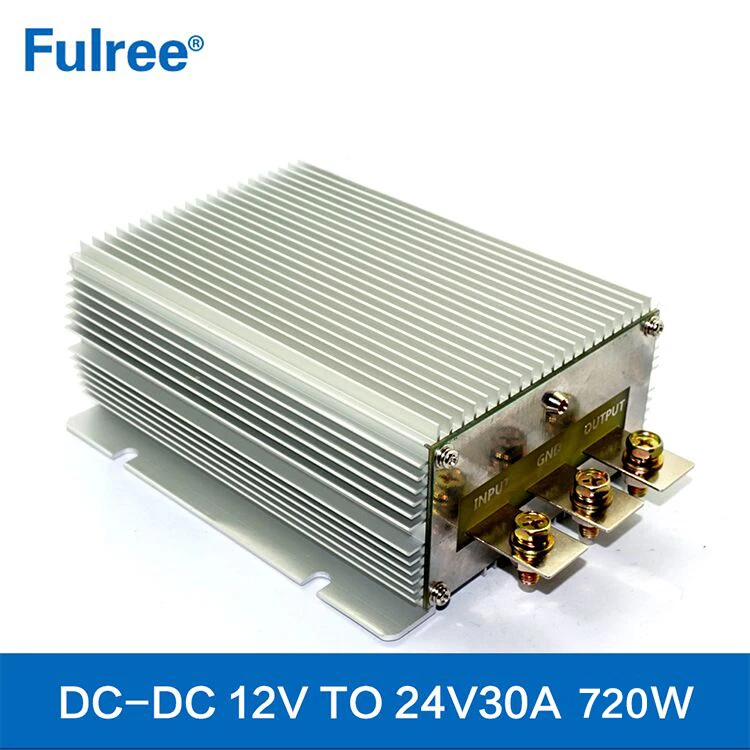

| Model |
122425 / 122430 |
| Type |
DC DC Converter |
| Input rated voltage |
DC 12V |
| Input voltage range |
DC 10-16V |
| Efficiency |
95% |
| Output voltage |
DC 24V |
| Output current |
25A / 30A Max |
| Output rated power |
600W / 720W Max |
| Voltage regulation |
< 1% |
| Load regulation |
< 2% |
| Working temperature |
-40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use,
or to enhance heat dissipation)
|
| Module Properties |
non-isolated boost module
|
| Rectification |
synchronous rectification |
| Waterproof rating |
IP68 |
| Full load temperature rise: |
50°c |
| Protection |
Over-current,Over-voltage and Overheat Protection |
| Input/Output Installation |
INPUT---------Input Positive“+”
GND------Input/Output Negative "-"
OUTPUT------Output Positive "+" |
| NW |
1.65kg |

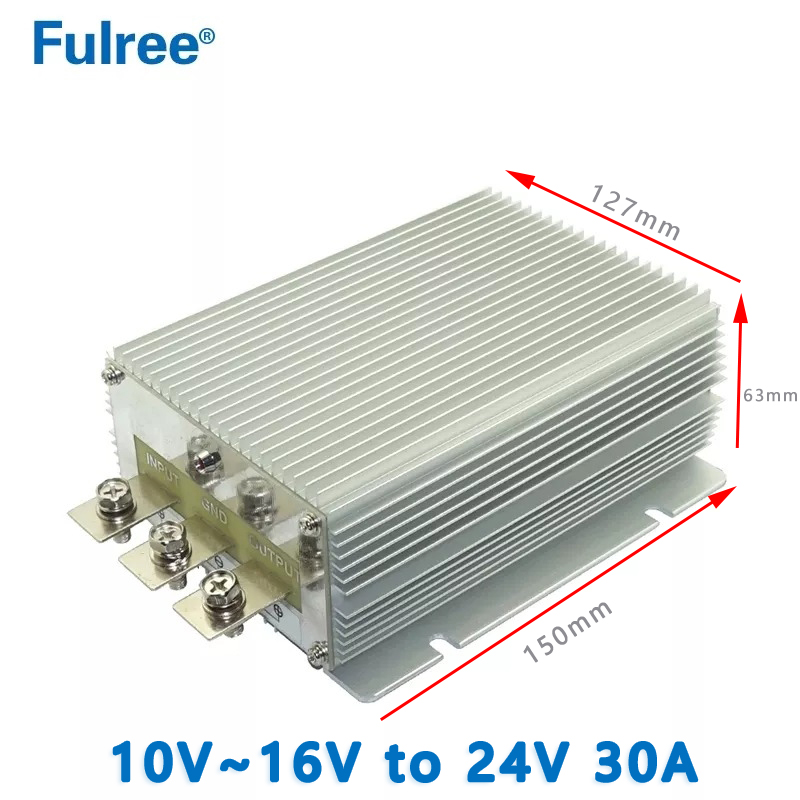

| Product size |
150*127*63mm |
|
Other output current
option for 12V to 24V
DC DC Converter
|
15A/20A/25A(pls contact with our sales manager if need) |
|
Attention:
>Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged
>To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.
|

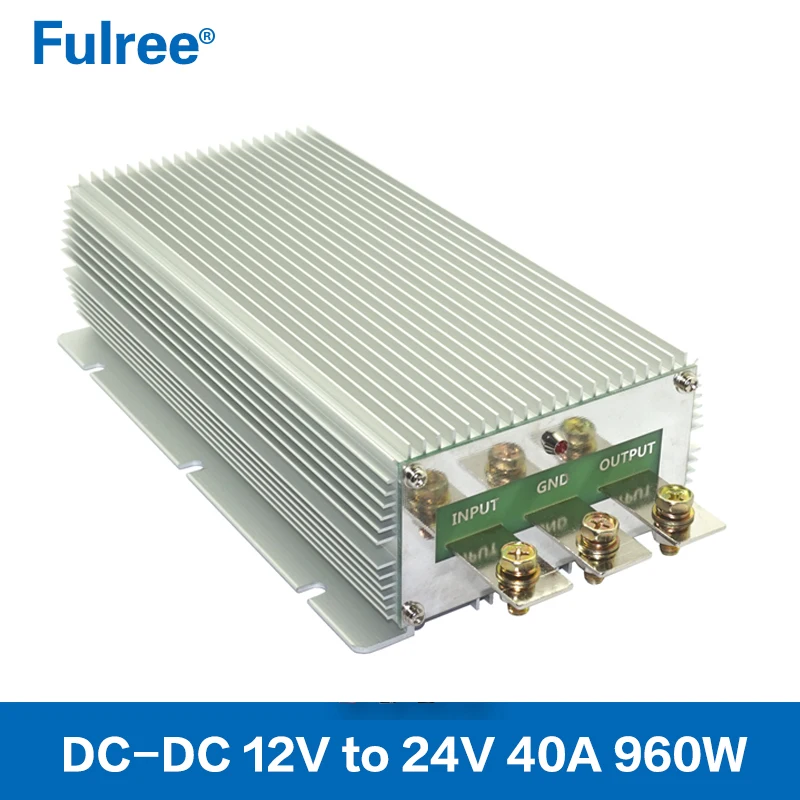

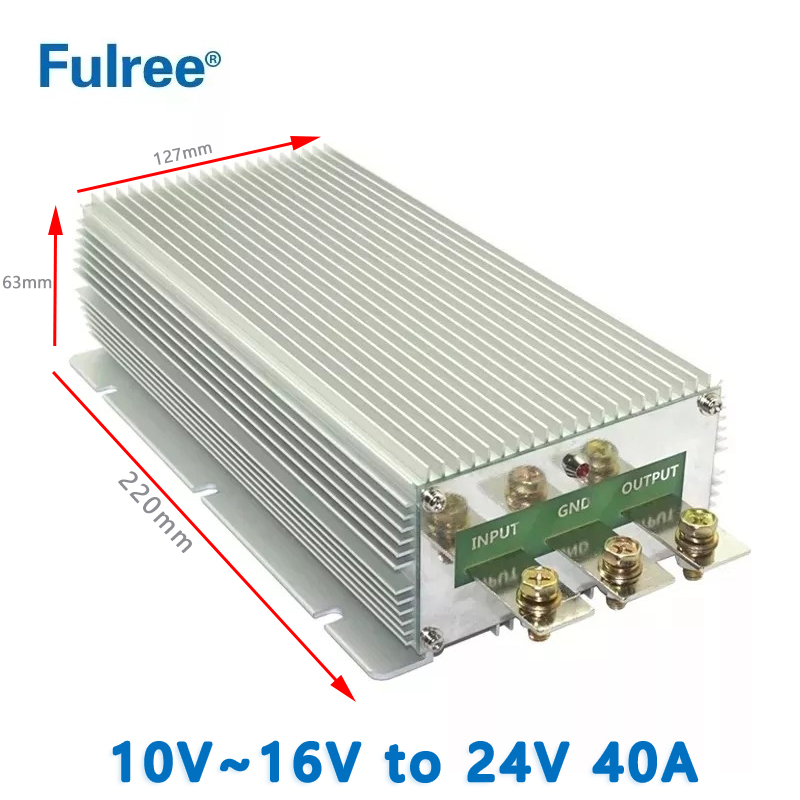

Fulree DC DC Converter 12V to 24V 40A 960W
|
Product Name
|
Fulree DC DC Converter 12V to 24V 40A 960W
|
|
Brand
|
Fulree
|
|
Model No.
|
122440 |
|
Module Properties
|
non-isolated boost module
|
|
Rectification
|
synchronous rectification
|
|
Input
|
|
Input Voltage
|
DC 12V
|
|
Input Voltage Range
|
DC 10-16V
|
|
Output
|
|
Output Voltage
|
DC 24V
|
|
Output Current
|
40A Max
|
|
Output Power
|
960W Max
|
|
Conversion Efficiency
|
97.5% (half load), 96% (full load) |
|
Voltage regulation
|
±1%
|
|
Load regulation
|
± 2%
|
|
Ripple (Full load test)
|
< 180mV
|
|
No-load current
|
50-60mA
|
|
Working Temperature
|
-40~80℃
|
|
Waterproof Rating
|
IP68
|
|
Protection
|
Over-current protection
|
|
Over-voltage protection
|
|
Overheat protection
|
|
Input/Output Installation
|
INPUT---------Input Positive“+”
GND------Input/Output Negative "-"
OUTPUT------Output Positive "+" |
|
Application
|
Electric motors, fans, Audio, Trucks, Golf Carts ,Forklifts
GPS Navigation, Monitoring, Air conditioning
LED car display, DVD, LED bulb lights
Wind Power System, Solar Panel Power System
Electrical appliances, water pumps, industrial equipment, telecommunications and so on.
|
|
Certification
|
CE/RoHS
|
|
Case Material
|
Aluminum, anti-shock, anti-drop, anti-moisture, anti-dust and so on
|
|

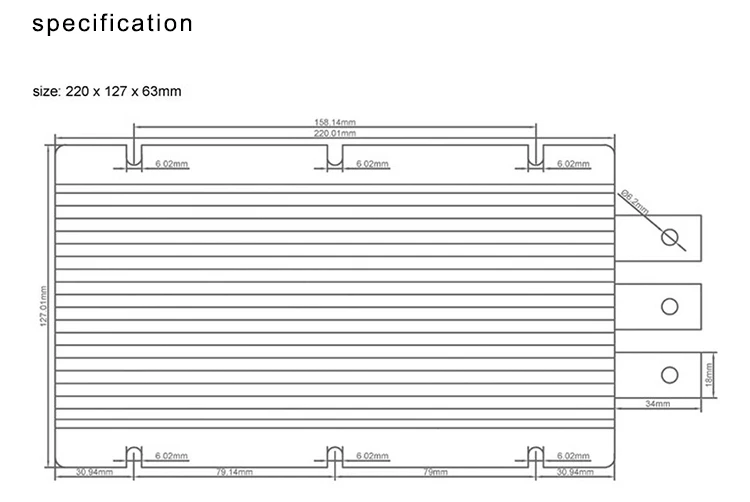

Product Size (L x W x H)
|
220*127*63mm
|
|
Product Weight
|
2.35kg
|
|
Warranty
|
12 months, lifetime up to 100,000 hours
|
|
Cooling Way
|
Free air convection
|
|
OEM&ODM Service
|
Accept |

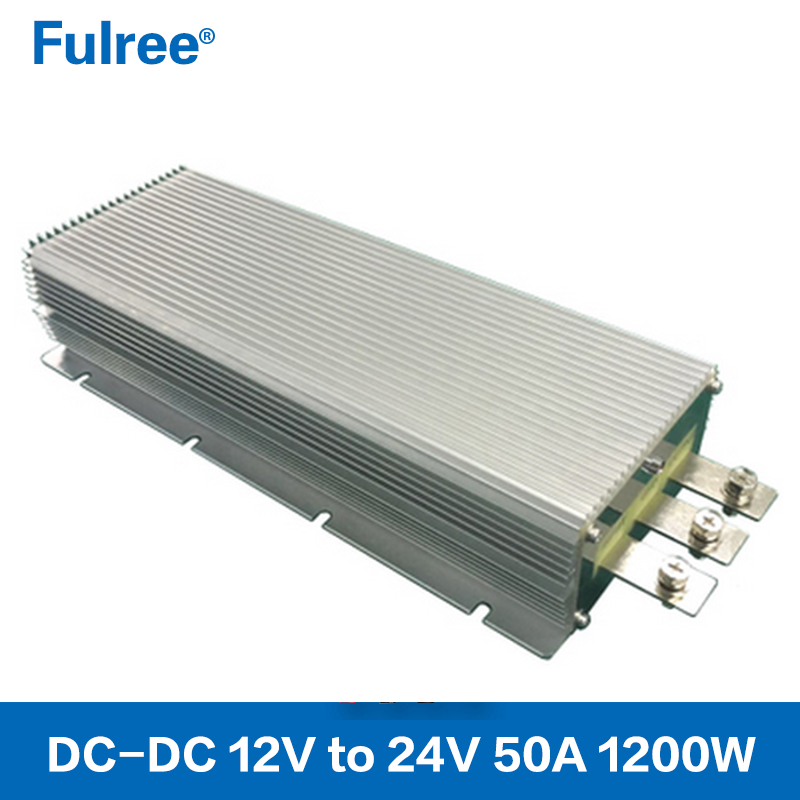

1200W Booster 12V to 24V 50A DC Step Up Converter
|
Product Name
|
1200W Booster 12V to 24V DC Step Up Converter
|
|
Brand
|
Fulree
|
|
Model No.
|
122450 |
|
Module Properties
|
non-isolated boost module
|
|
Rectification
|
synchronous rectification
|
|
Input
|
|
Input Voltage
|
DC 12V
|
|
Input Voltage Range
|
DC 10-16V
|
|
Output
|
|
Output Voltage
|
DC 24V
|
|
Output Current
|
50A Max
|
|
Output Power
|
1200W Max
|
|
Conversion Efficiency
|
97.5% (half load), 96% (full load) |
|
Voltage regulation
|
±1%
|
|
Load regulation
|
± 2%
|
|
Ripple (Full load test)
|
< 180mV
|
|
No-load current
|
50-60mA
|
|
Working Temperature
|
-40~80℃
|
|
Waterproof Rating
|
IP68
|
|
Protection
|
Over-current protection
|
|
Over-voltage protection
|
|
Overheat protection
|
|
Input/Output Installation
|
INPUT---------Input Positive“+”
GND------Input/Output Negative "-"
OUTPUT------Output Positive "+" |
|
Application
|
Electric motors, fans, Audio, Trucks, Golf Carts ,Forklifts
GPS Navigation, Monitoring, Air conditioning
LED car display, DVD, LED bulb lights
Wind Power System, Solar Panel Power System
Electrical appliances, water pumps, industrial equipment, telecommunications and so on.
|
|
Certification
|
CE/RoHS
|
|
Case Material
|
Aluminum, anti-shock, anti-drop, anti-moisture, anti-dust and so on
|
|
Product Size (L x W x H)
|
330*127*63mm
|
|
Product Weight
|
3.2kg
|
|
Warranty
|
12 months, lifetime up to 100,000 hours
|
|
Cooling Way
|
Free air convection
|
|
OEM&ODM Service
|
Accept |

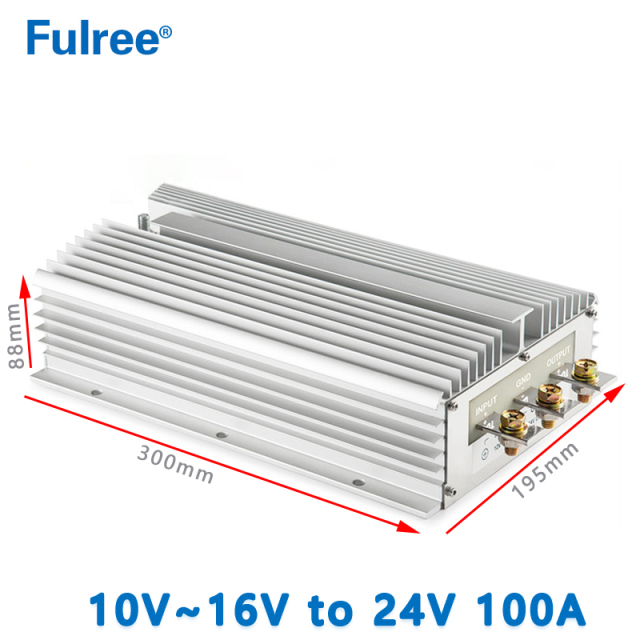

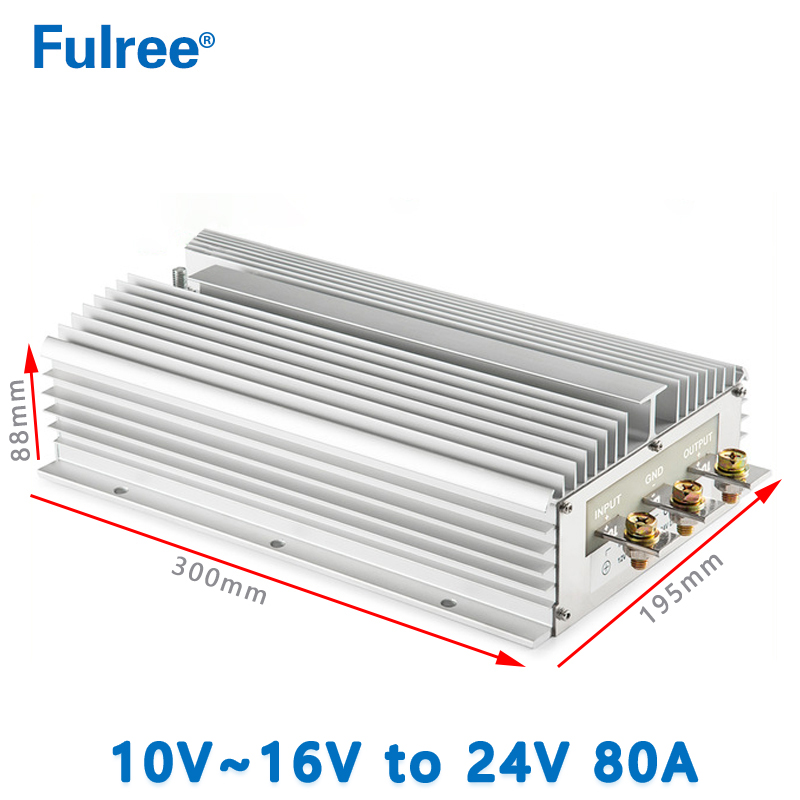

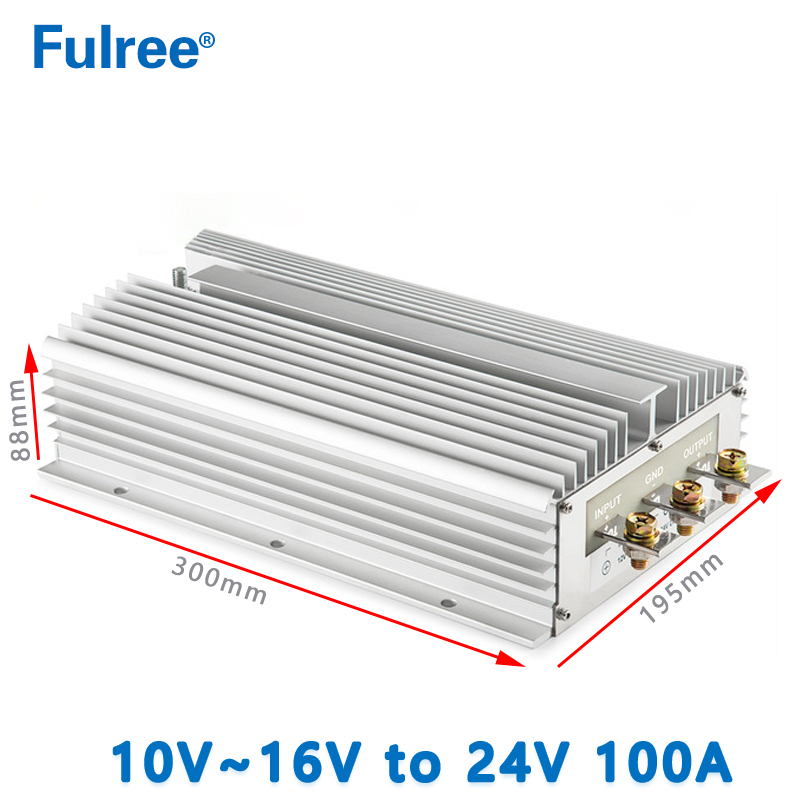

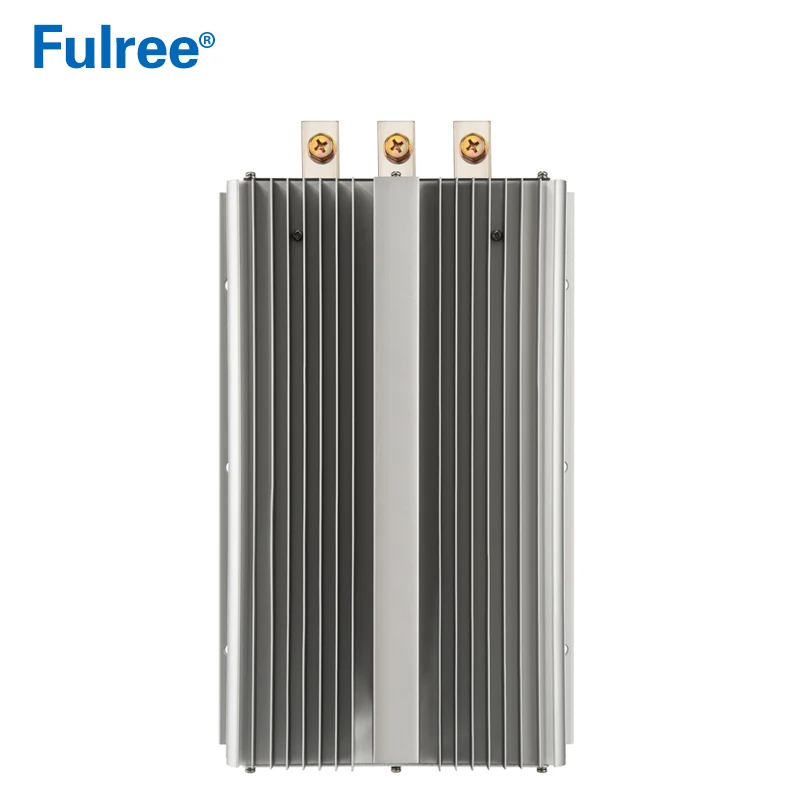

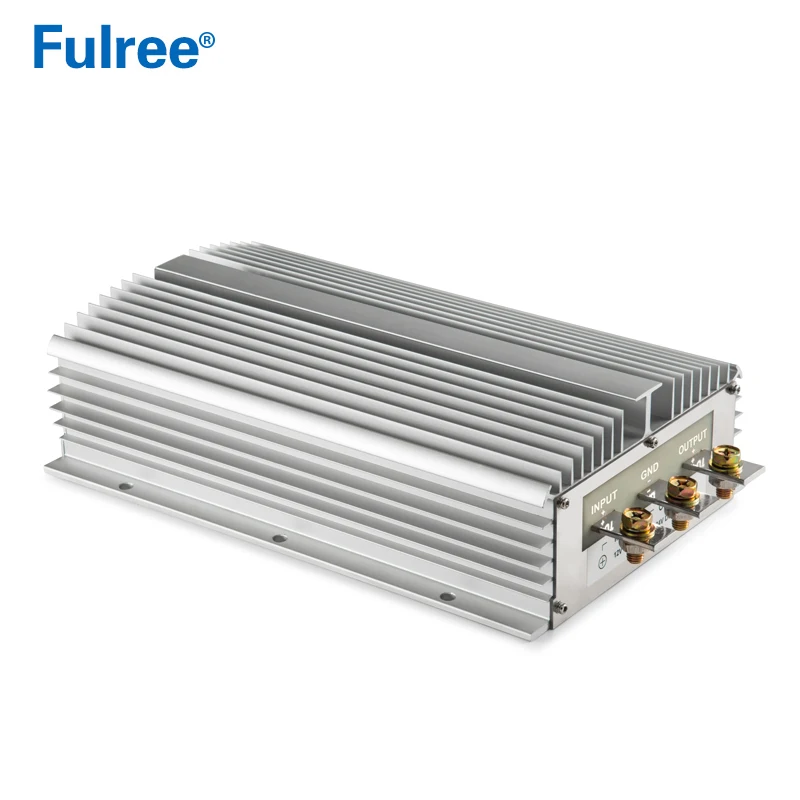

12V to 24V 80A / 100A DC Step Up Converter
|
Product Name
|
12V to 24V 80A / 100A DC Step Up Converter
|
|
Brand
|
Fulree
|
|
Model No.
|
122480 / 1224100 |
|
Module Properties
|
non-isolated boost module
|
|
Rectification
|
synchronous rectification
|
|
Input
|
|
Input Voltage
|
DC 12V
|
|
Input Voltage Range
|
DC 10-16V
|
|
Output
|
|
Output Voltage
|
DC 24V
|
|
Output Current
|
80A / 100A Max
|
|
Output Power
|
1920W / 2400W Max
|
|
Conversion Efficiency
|
94% |
|
Voltage regulation
|
±1%
|
|
Load regulation
|
± 2%
|
|
Ripple (Full load test)
|
240mV
|
|
No-load current
|
50-60mA
|
|
Working Temperature
|
-40~80℃
|
|
Waterproof Rating
|
IP68
|
|
Protection
|
Over-current protection
|
|
Over-voltage protection
|
| Overheat protection |
|
Input/Output Installation
|
INPUT---------Input Positive“+”
GND------Input/Output Negative "-"
OUTPUT------Output Positive "+" |
|
Application
|
Electric motors, fans, Audio, Trucks, Golf Carts ,Forklifts
GPS Navigation, Monitoring, Air conditioning
LED car display, DVD, LED bulb lights
Wind Power System, Solar Panel Power System
Electrical appliances, water pumps, industrial equipment, telecommunications and so on.
|
|
Certification
|
CE/RoHS
|
|
Case Material
|
Aluminum, anti-shock, anti-drop, anti-moisture, anti-dust and so on
|
|
Product Size (L x W x H)
|
303*195*88mm
|
|
Product Weight
|
6kg/pc
|
|
Warranty
|
12 months, lifetime up to 100,000 hours
|
|
Cooling Way
|
Free air convection
|
|
OEM&ODM Service
|
Accept |
Product Picture
