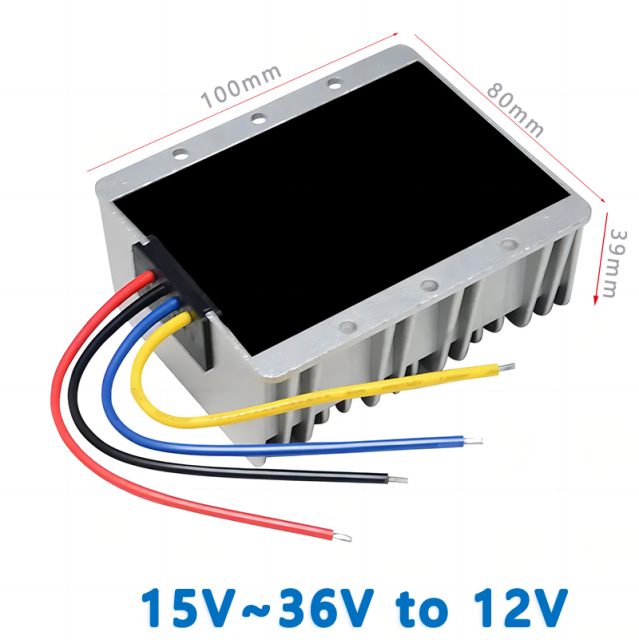

Fulree Input DC 24V(15-36V) to Output DC 12V 15A Isolated DC to DC Converter
Product Name | DC 24V(15-36V) to Output DC 12V |
Brand | Fulree |
Module Properties | isolated buck module |
Input |
Input Voltage | DC 24V(15-36V) |
Input Voltage Range | DC 24V(15-36V) |
Output |
Output Voltage | DC 12V |
Output Current | 15A |
Output Power | 180W |
Conversion Efficiency | 95% (@ 12V in) |
Protection | Over-current protection |
Over-voltage protection |
Overheat protection |
Short-circuit protection |
Application | Trucks,Golf Carts,Forklifts,Buses,Loaders,Logging Vehicles Wind Power System,Solar Power System, Electromotor,Telecommunications,Boat & Yacht and so on... |
Certification | CE/RoHS/FCC |
Case Material | Aluminum, anti-shock, anti-drop, anti-moisture, anti-dust and so on |
Product Size (L x W x H) | 100*80*39mm |
Product Weight | 500g |
Warranty | 12 months, lifetime up to 100,000 hours |
Cooling Way | Free air convection |
OEM&ODM Service | Accept |
Product Picture

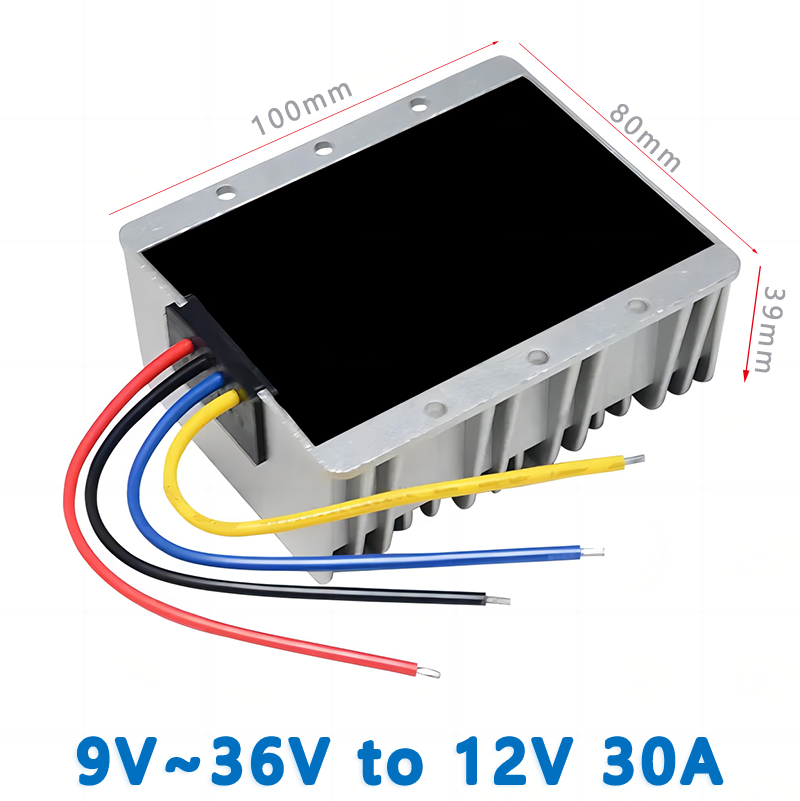

Fulree Input DC 12V 24V(9~36V) to Output DC 12V 20A 25A 30A Isolated DC to DC Converter
Product Name | DC 12V 24V(9~36V) to DC 12V |
Brand | Fulree |
Module Properties | isolated buck module |
Input |
Input Voltage | DC 12V 24V(9~36V) |
Input Voltage Range | DC 12V 24V(9~36V) |
Output |
Output Voltage | DC 12V |
Output Current | 20A 25A 30A |
Output Power | 240W 300W 360W |
Conversion Efficiency | 95% (@ 12V in) |
Protection | Over-current protection |
Over-voltage protection |
Overheat protection |
Short-circuit protection |
Application | Trucks,Golf Carts,Forklifts,Buses,Loaders,Logging Vehicles Wind Power System,Solar Power System, Electromotor,Telecommunications,Boat & Yacht and so on... |
Certification | CE/RoHS/FCC |
Case Material | Aluminum, anti-shock, anti-drop, anti-moisture, anti-dust and so on |
Product Size (L x W x H) | 100*80*39mm |
Product Weight | 500g |
Warranty | 12 months, lifetime up to 100,000 hours |
Cooling Way | Free air convection |
OEM&ODM Service | Accept |
Product Picture
