| Model | 1503B |
| Input rated voltage | DC 12V |
| Input voltage range | DC 8-15V |
| Efficiency | 94% (half load), 91% (full load) |

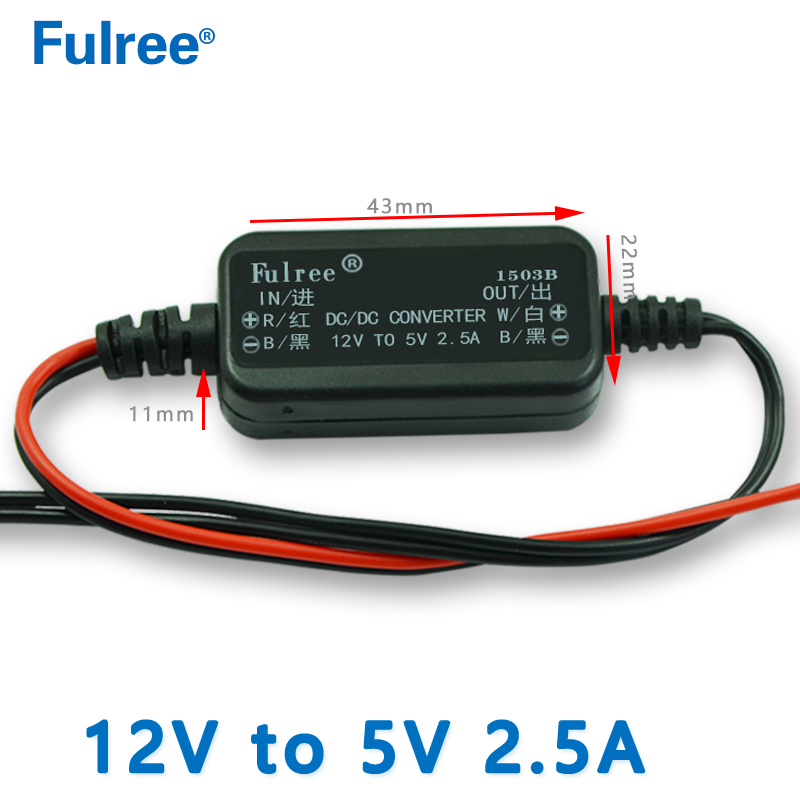

| Output voltage | 5V |
| Output current | 2.5A MAX |
| Output rated power | 12.5W |
| Output peak power | 15W |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Working temperature |
-40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation) |
| Module Properties |
non-isolated buck module(buck) |
| Rectification | synchronous rectification |
| Waterproof rating | IP68 |
| Full load temperature rise: | 50°c |
| Protection | Over-current, Over-temperature, Short-circuit protection,Input Reverse Polarity Protection |
| NW | 15G |
| Product size | 43*22*11MM |
|
Packing Information |
500PCS/CTN, Carton Size:53*23*29CM,G.W 8.50KG/CTN |
|

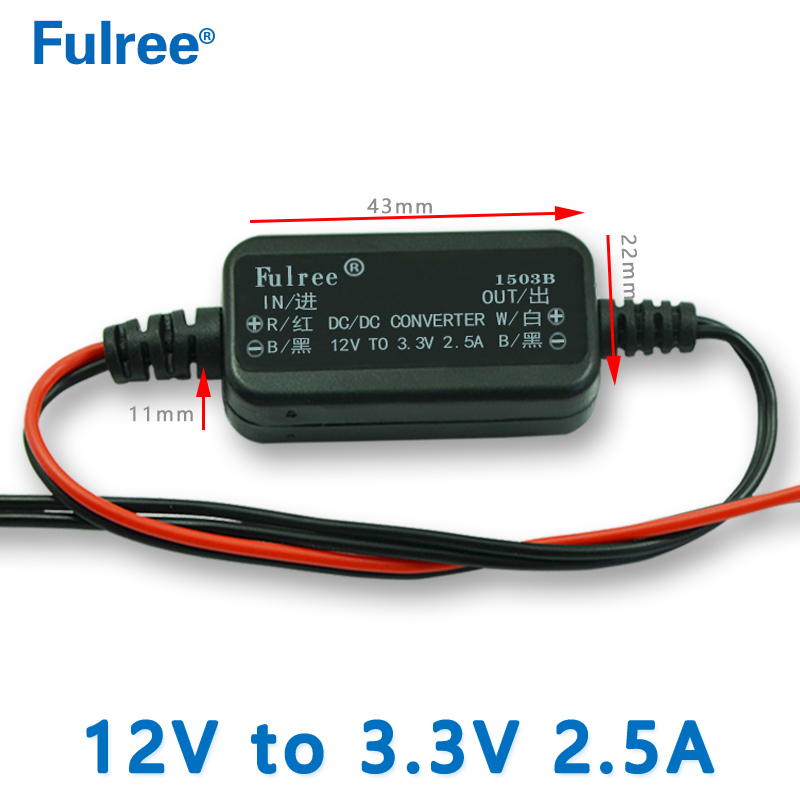

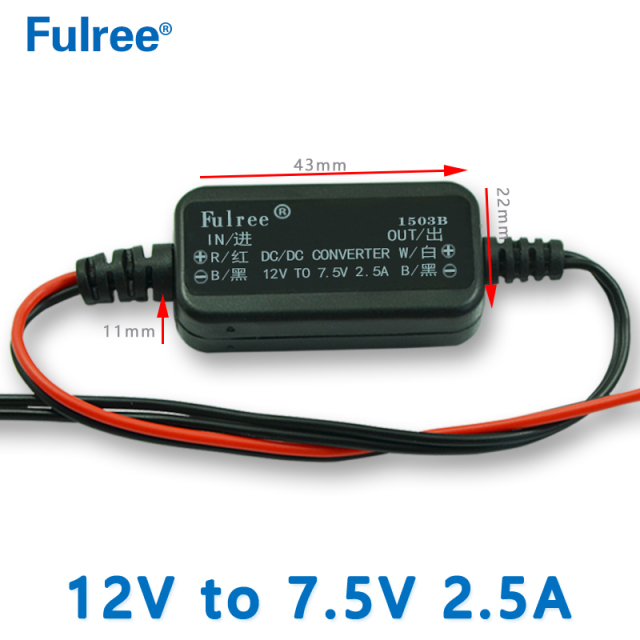

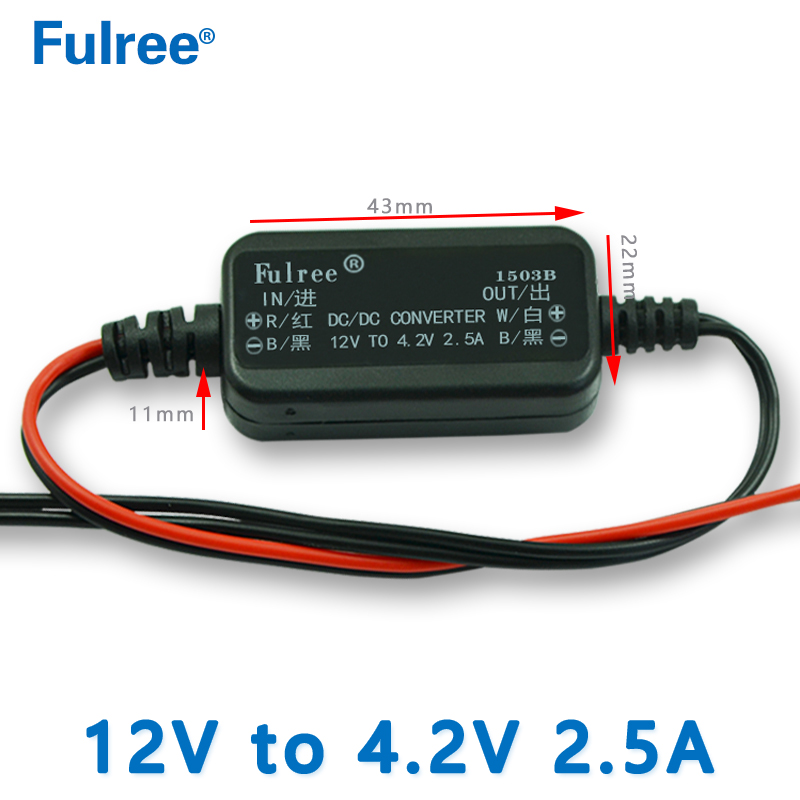

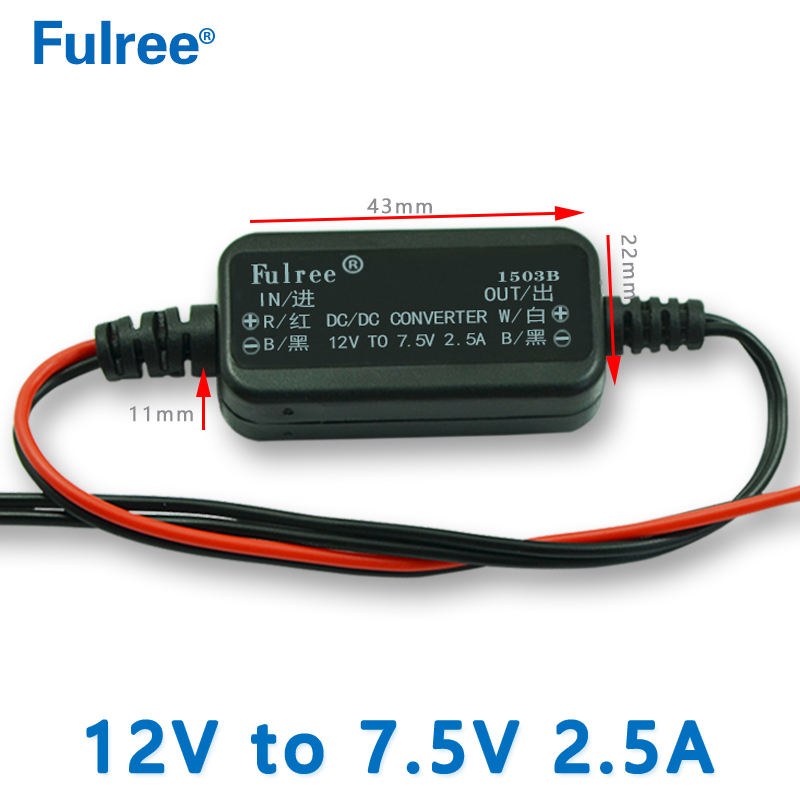

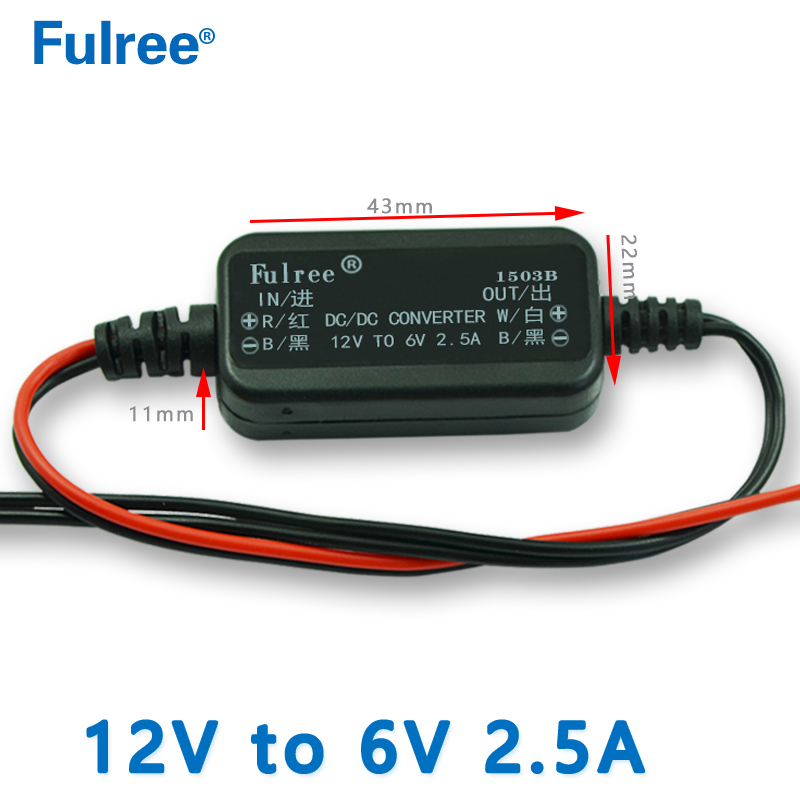

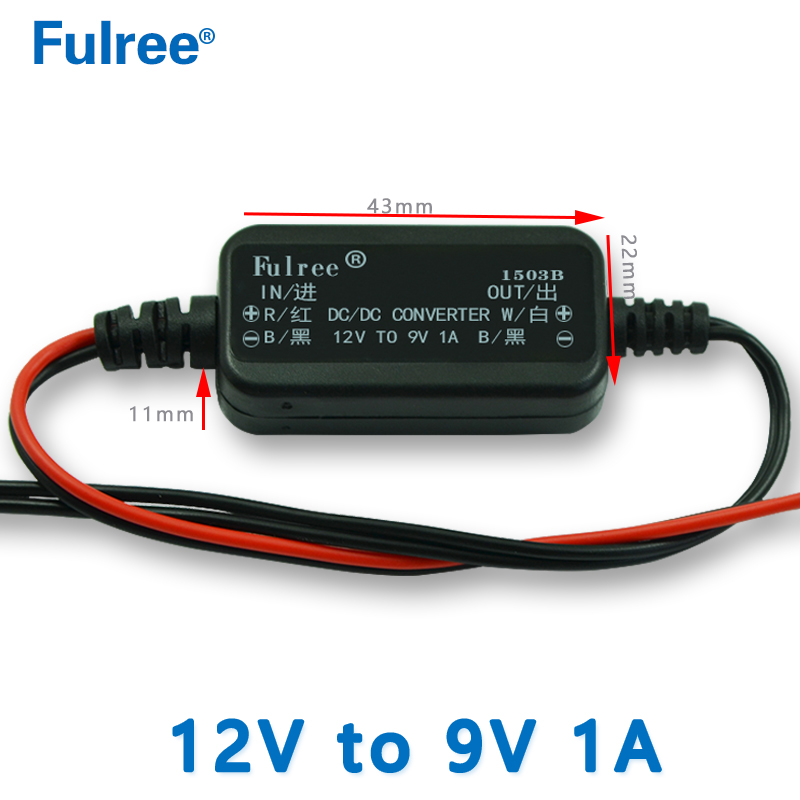

Other output Volt option for 12v to |
3.3V, 4.2V, 6V, 7.5V, 9V(pls contact with our sales manager if need) |
|
Attention: >Pls install according to the the label strictly |
|
