Product Name |

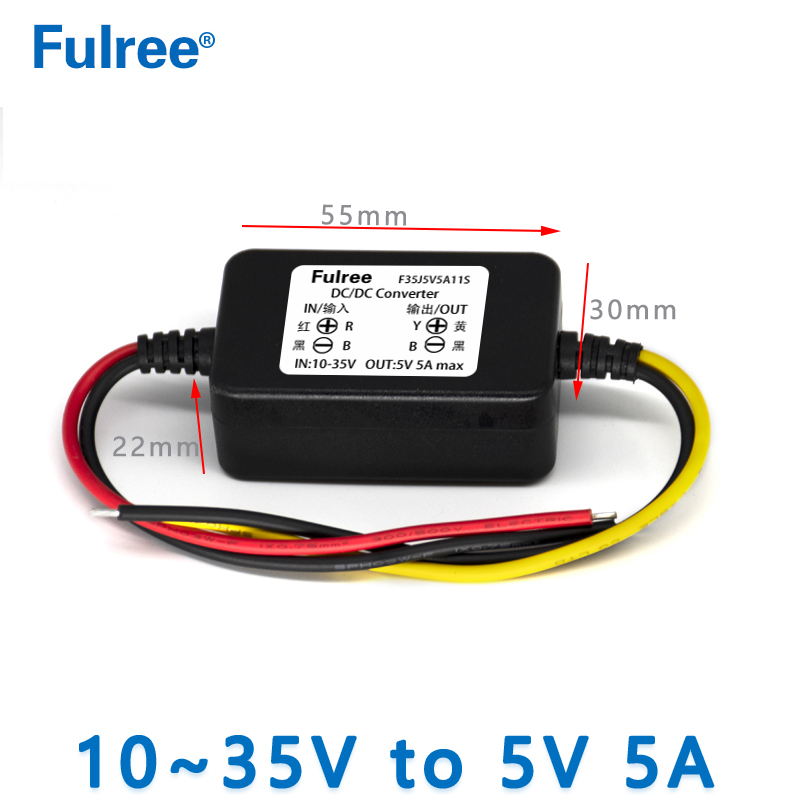

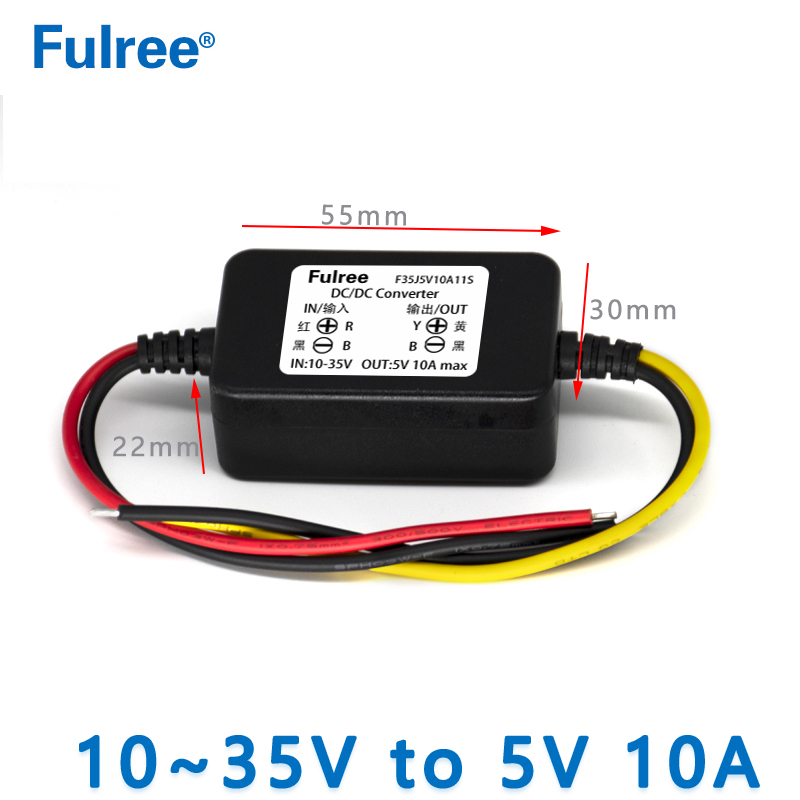

Fulree DC DC Converter 12V 24V to 5V 3A 5A 10A |
|
|
Brand |
Fulree |
|
|
Model No. |
F35J5V*A11S | |
|
Module Properties |
non-isolated boost module |
|
|
Rectification |
synchronous rectification |
|
|
Input (13-14cm) |
||
|
Input Voltage |
DC 12V 24V |
|
|
Input Voltage Range |
DC 10-35V |
|
|
Output (13-14cm) |
||
|
Output Voltage |
DC 5V |
|
|
Output Current |
3A 5A 10A Max |
|
|
Output Power |
15W 25W 50W Max |
|
|
Conversion Efficiency |
>95% | |
|
Voltage regulation |
±1% |
|
|
Load regulation |
± 2% |
|
|
Ripple (Full load test) |
< 150mV |
|
|
No-load current |
<100mA |
|
|
Working Temperature |
-40~80℃ |
|
|
Waterproof Rating |
IP68 |
|
|
Protection |
Overheat protection |
|
|
Output Short-circuit protection |
||
|
Application |
Electric motors, fans, Audio, Trucks, Golf Carts ,Forklifts | |
|
Certification |
CE/RoHS |
|
|
Case Material |
Plastic, anti-shock, anti-drop, anti-moisture, anti-dust and so on |
|
|
Product Size (L x W x H) |
55*35*22mm |
|
|
Product Weight |
55g |
|
|
Warranty |
12 months, lifetime up to 100,000 hours |
|
|
Cooling Way |
Free air convection |
|
|
OEM&ODM Service |
Accept | |
|

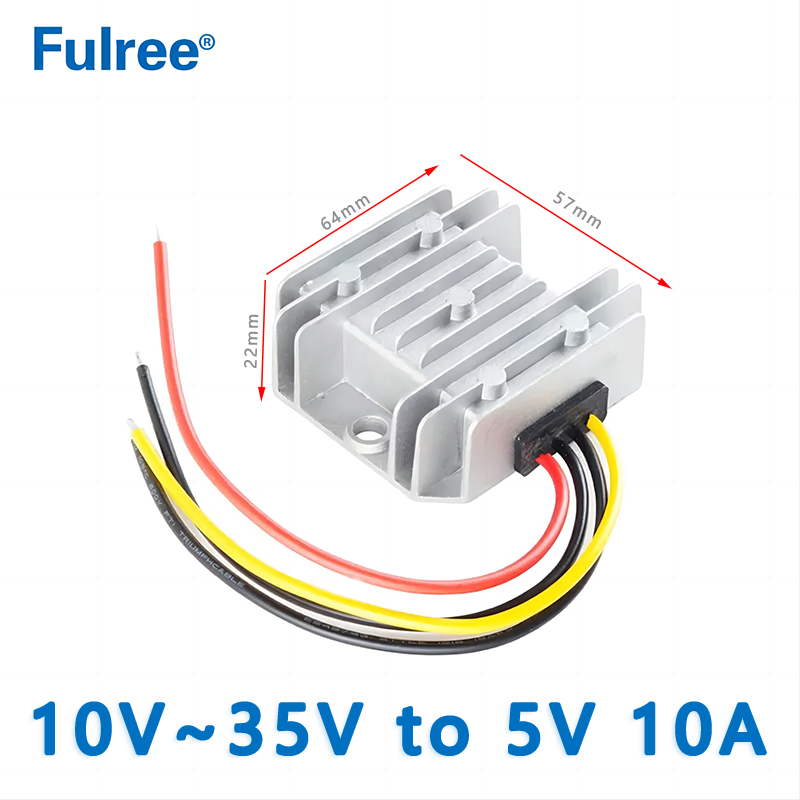

Product Name |

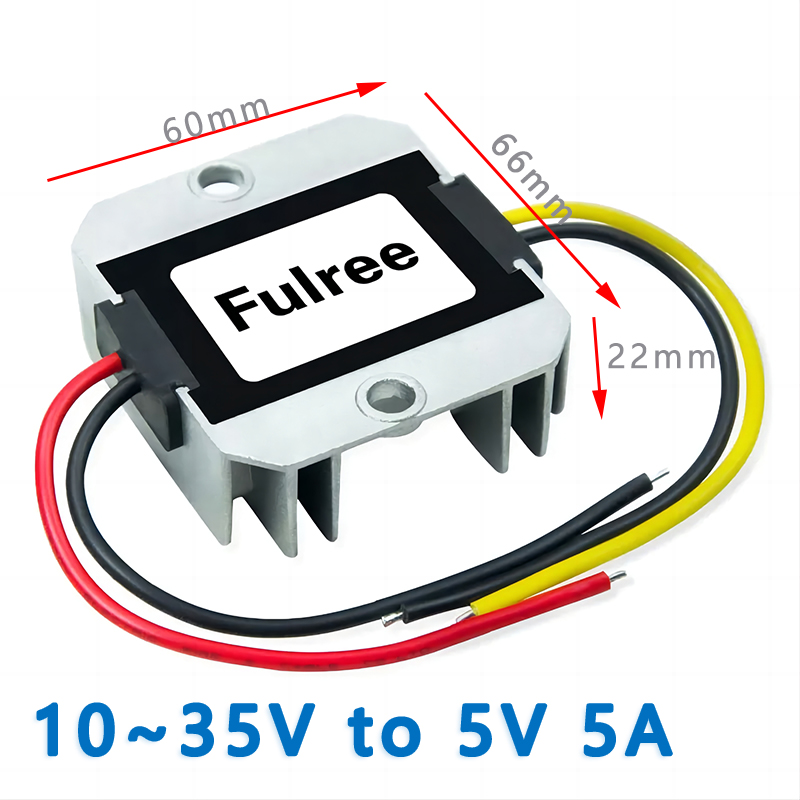

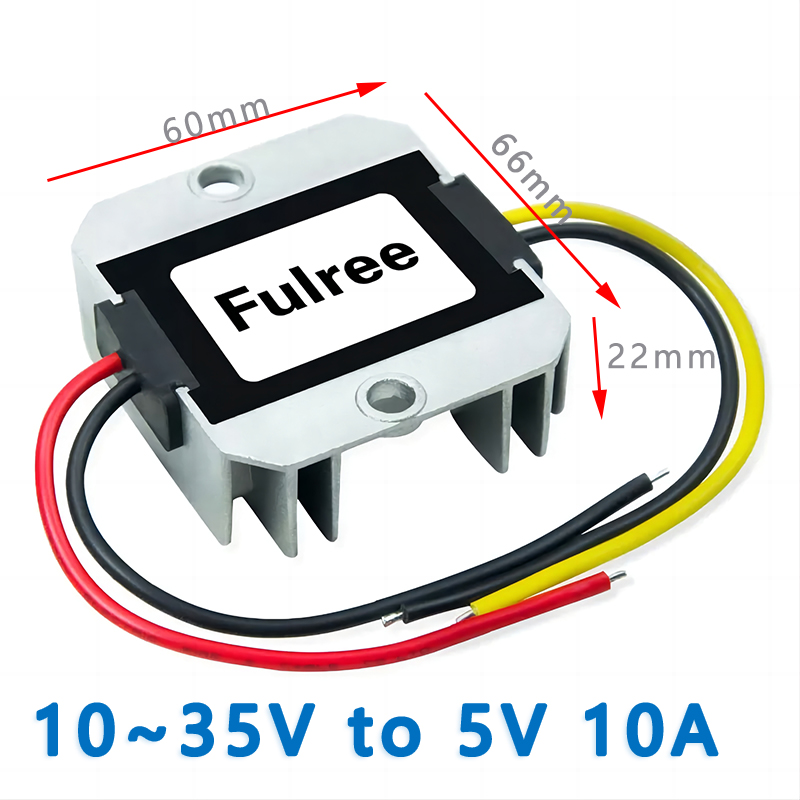

Fulree DC DC Converter 12V 24V to 5V 10A 50W |
|
|
Brand |
Fulree |
|
|
Model No. |
F35J5V3A4L/F35J5V3=5A4L/F35J5V8A4L/F35J5V10A4L/ (Old:C240503/C240505/C240508/C240510) |
|
|
Module Properties |
non-isolated buck module |
|
|
Rectification |
synchronous rectification |
|
|
Input (13-14CM) |
||
|
Input Voltage |
DC 12V / 24V |
|
|
Input Voltage Range |
DC 10-35V |
|
|
Output (13-14CM) |
||
|
Output Voltage |
DC5V |
|
|
Output Current |
auto-adaption 0~10A Max 3A / 5A / 8A / 10A |
|
|
Output Power |
50W Max 15W / 25W / 40W / 50W |
|
|
Conversion Efficiency |
96% |
|
|
Voltage regulation |
±1% |
|
|
Load regulation |
± 2% |
|
|
Ripple (Full load test) |
< 150mV |
|
|
No-load current |
< 100mA |
|
|
Working Temperature |
-40~85℃ |
|
|
Waterproof Rating |
IP68 |
|
|
Protection |
Over-current protection 12A |
|
|
Overheat protection 150℃ |
||
|
Output Short-circuit protection |
||
|
Full waterproof potting |
||
|
Input/Output Reverse Polarity Protection |
No, please follow label instructions wiring strictly: red for input positive, black is negative, yellow for output positive. If you need this function, please contact with us to customize it. |
|
|
Application |
Electric motors, fans, Audio, Trucks, Golf Carts ,Forklifts GPS Navigation, Monitoring, Air conditioning LED car display, DVD, LED bulb lights Wind Power System, Solar Panel Power System, Photo voltaic energy Electrical appliances, water pumps, industrial equipment, telecommunications and so on. |
|
|
Certification |
CE/RoHS |
|
|
Case Material |
Die Casting Aluminum Alloy, anti-shock, anti-drop, anti-moisture, anti-dust and so on |
|
|
Installation Cable Length |
13-14cm |
|
|
Product Weight |
100g |
|
|
Warranty |
12 months, lifetime up to 100,000 hours |
|
|
Cooling Way |
Free air convection |
|
|
OEM Service |
Accept OEM logo/label/manual/packing box, Contact Fulree Now! |
|
|
Customized Service |
Accept customized converter such as input/output voltage, cable, interface and etc, Contact Fulree Now! |
|

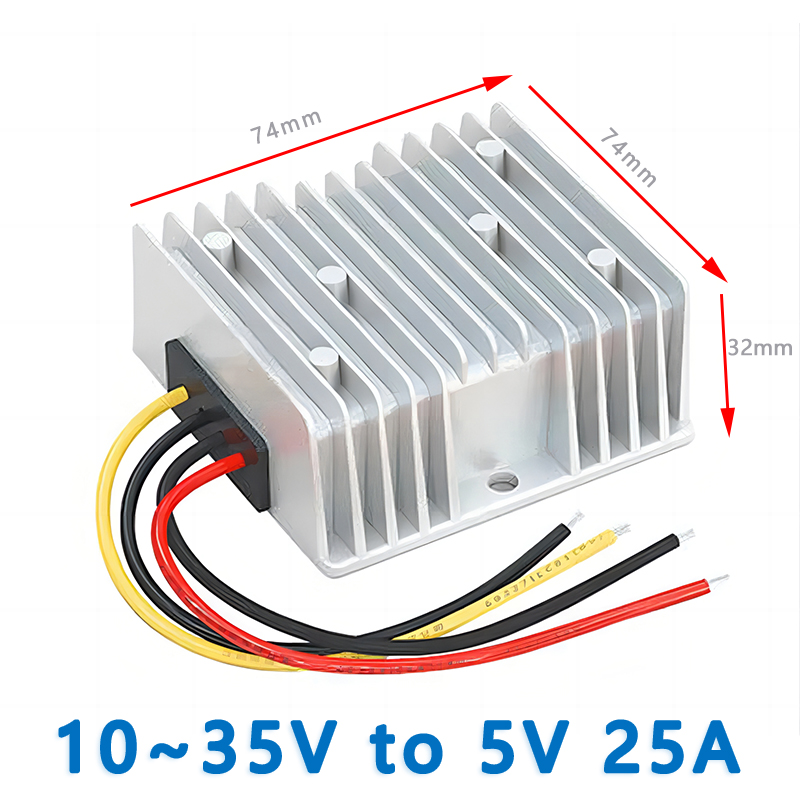

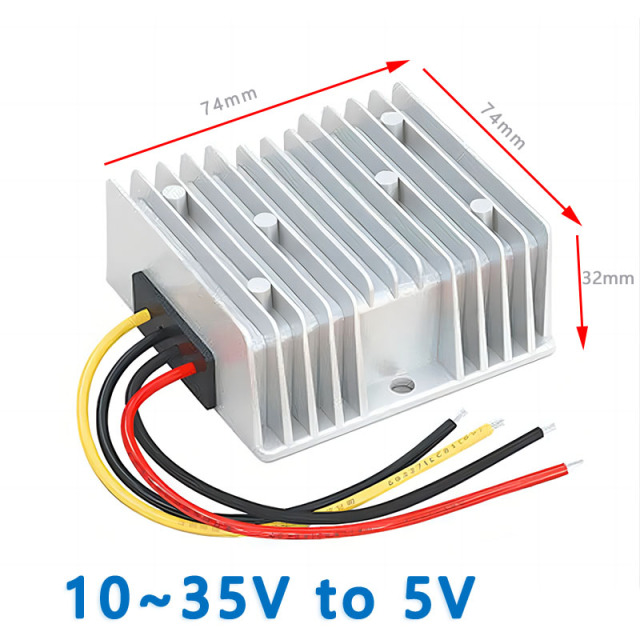

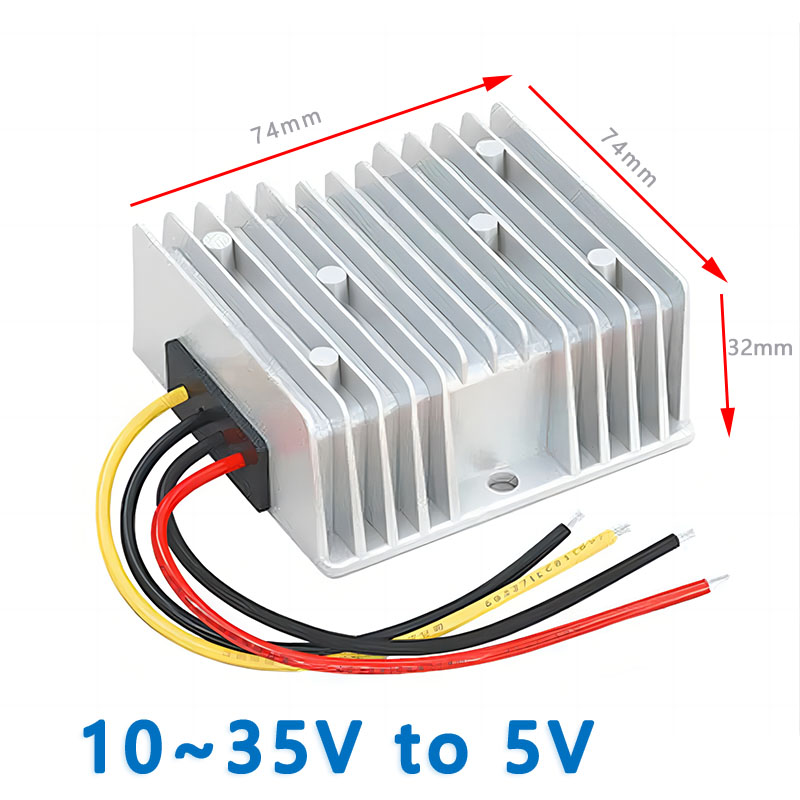

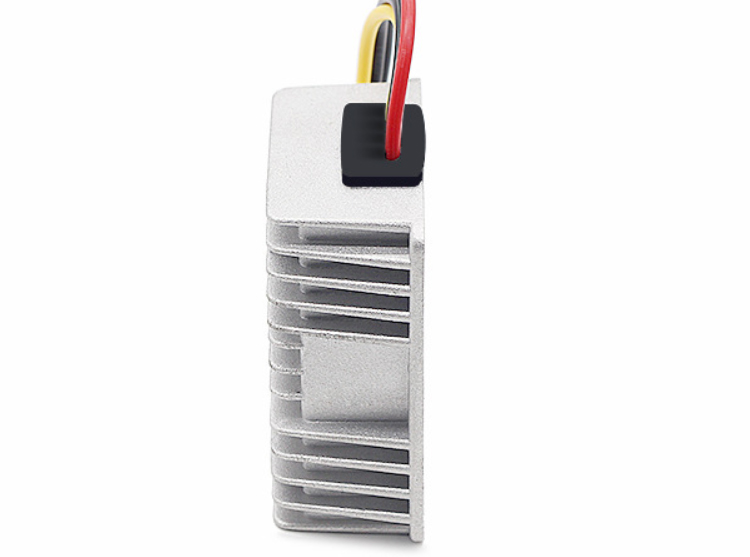

| Product model | 12V/24V to 5V10A15A20A30A |
| Input voltage | 12V/24V ( 10V-35V) |
| Output voltage | DC5V |
| Output current | 10A15A20A30A |
| output power | 50W75W100W150W |

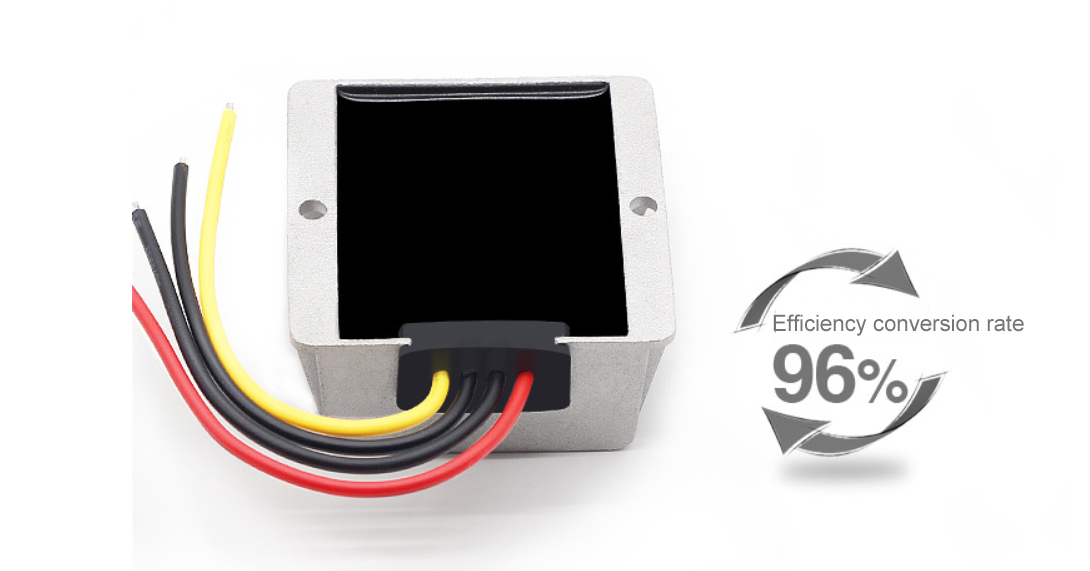

| conversion efficiency | 96% |
| Module properties | Non isolated power supply |
| Working greenhouse | -20°C~80°C |
| Overall dimension | 74mm*74mm*32mm |
| Weight | 240g |
| Degree of protection | IP68 |

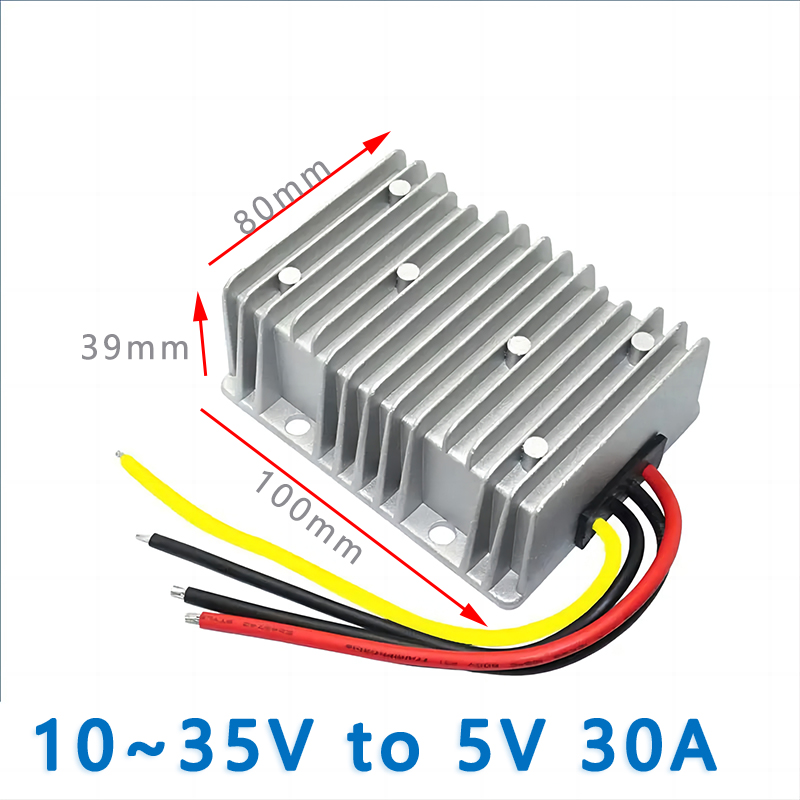

| Product model | 12V/24V to 5V30A35A40A |
| Input voltage | 12V/24V ( 10V-35V) |
| Output voltage | DC5V |
| Output current | 30A35A40A |
| conversion efficiency | 96% |
| Module properties | Non isolated power supply |
| Working greenhouse | -40°C~80°C |
| Overall dimension | 100*80*38mm |
| Weight | 500g |
| Degree of protection | IP67 |
