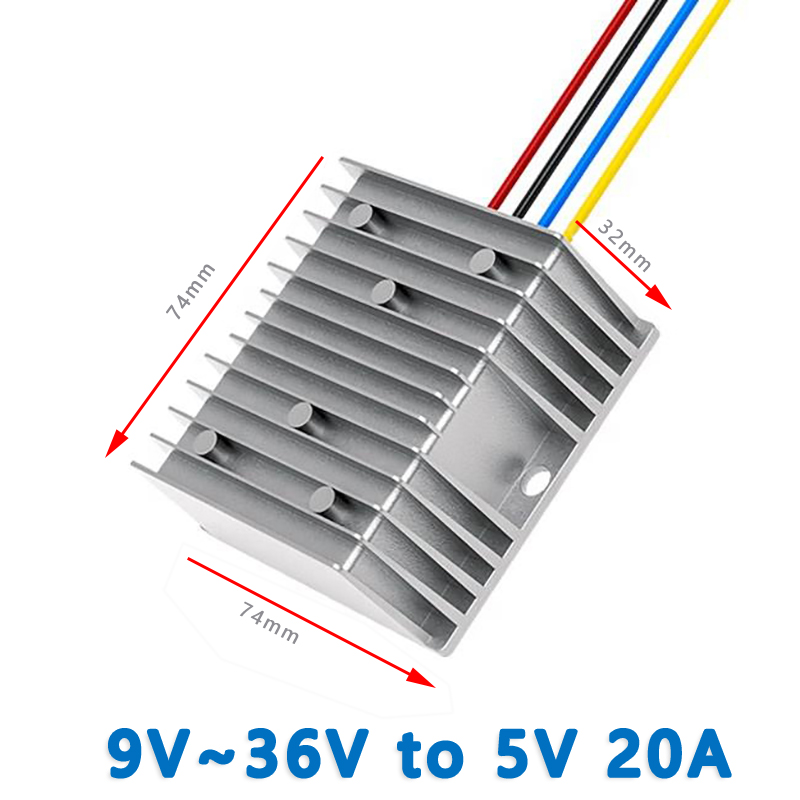

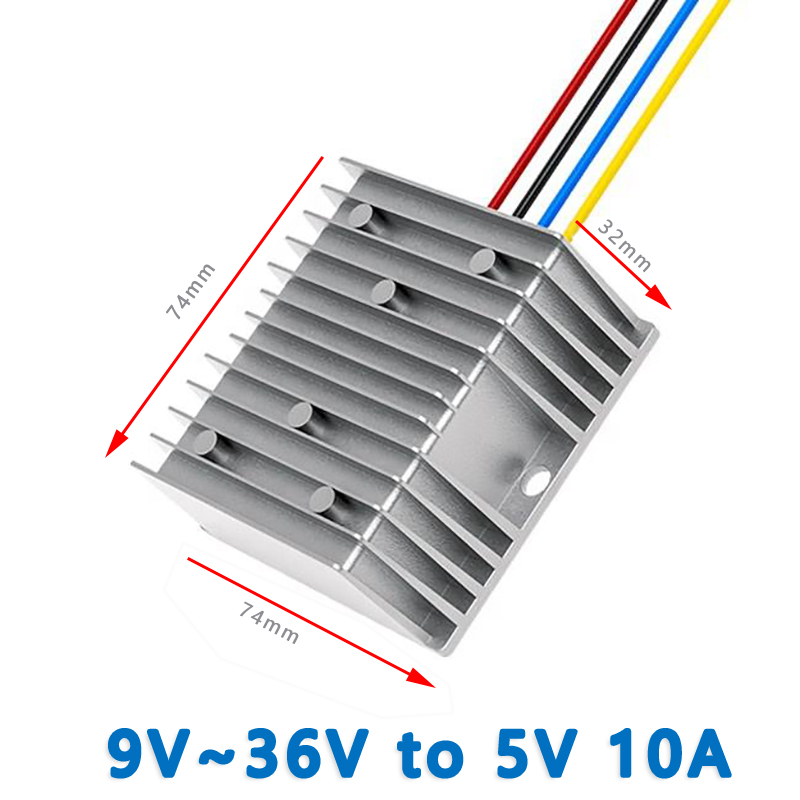

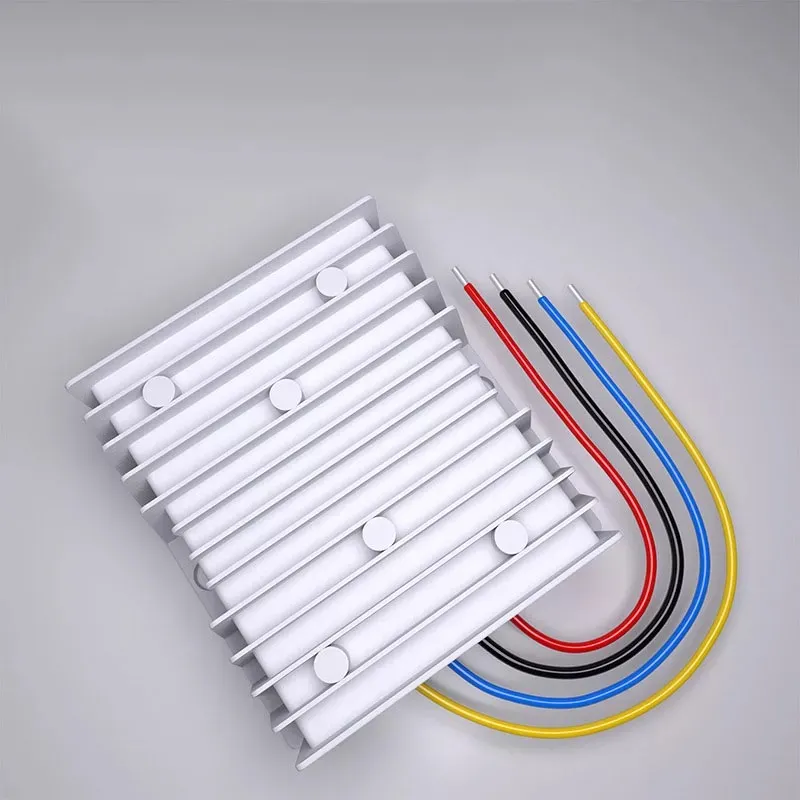

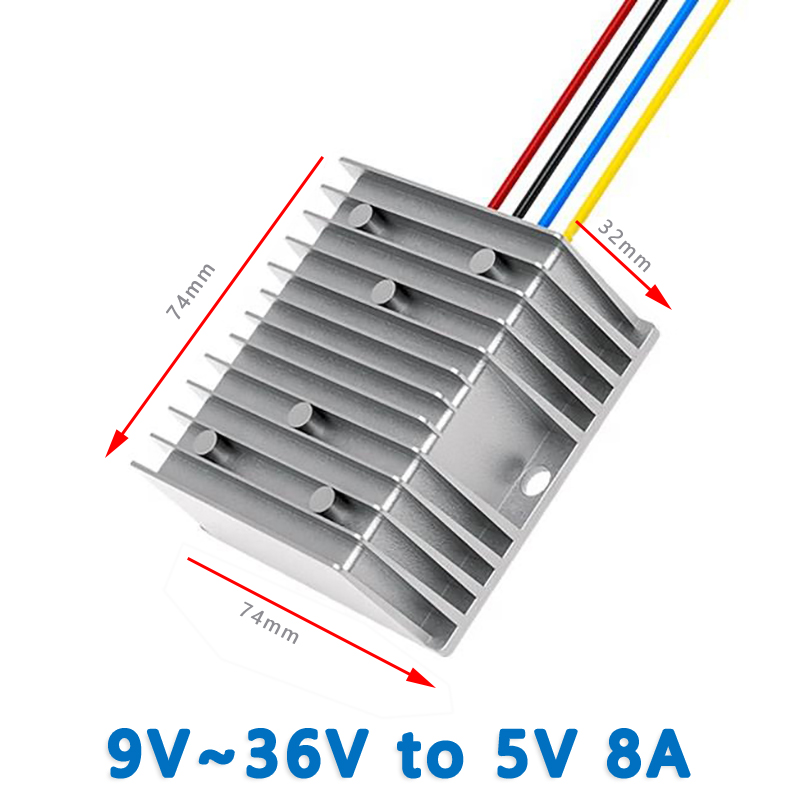

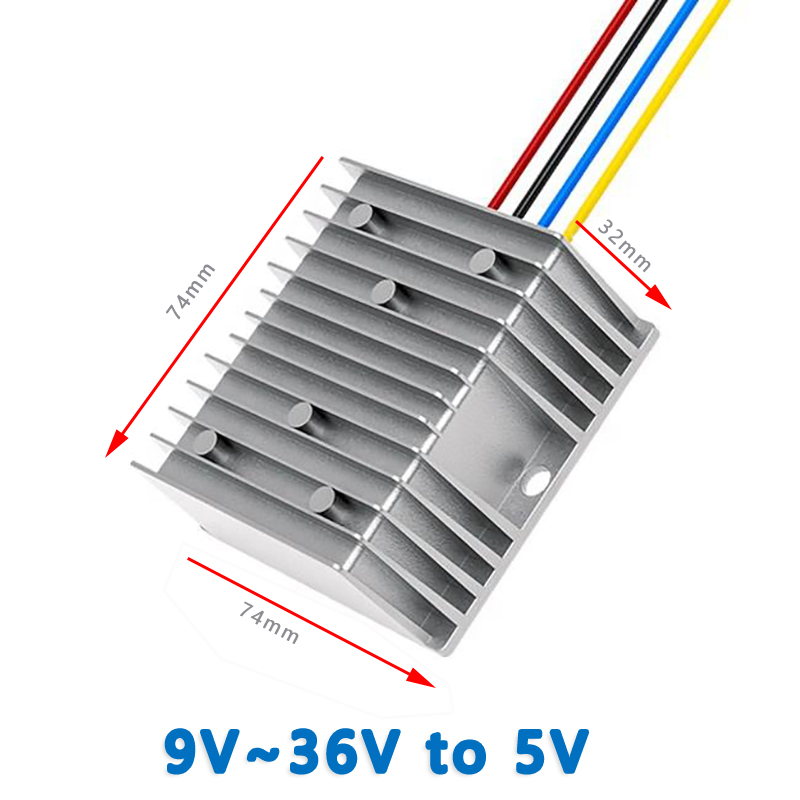

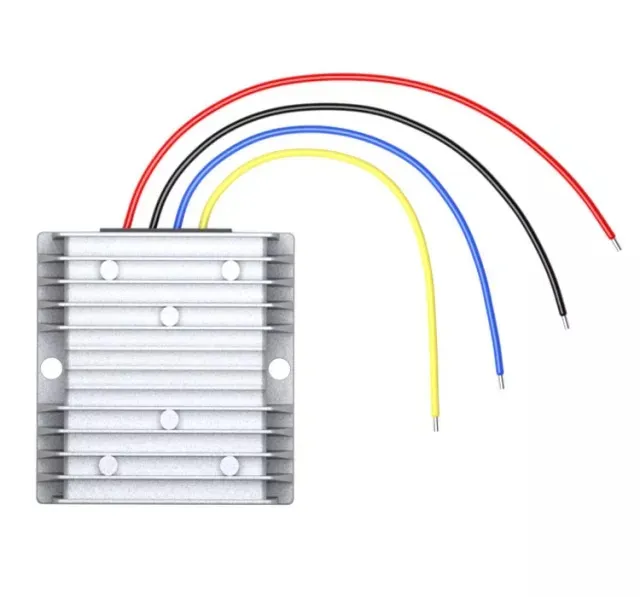

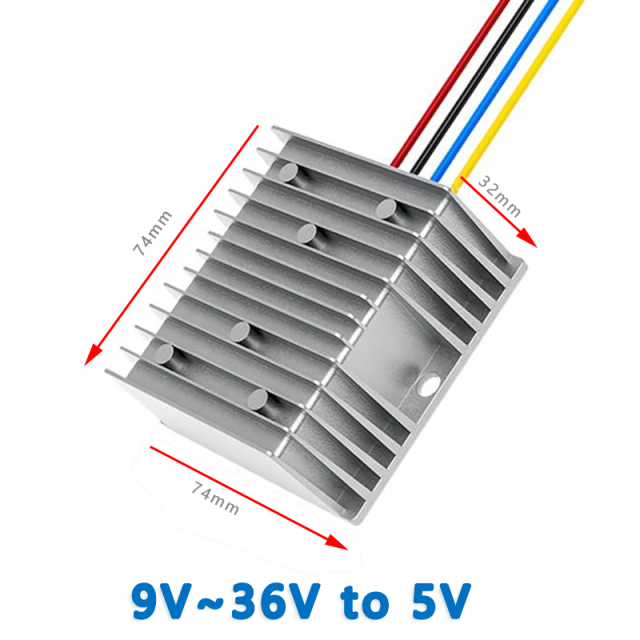

Input DC 12V/24V(9-36V)to Output DC 5V 8A 10A 15A 20A Isolated DC-DC converter
parameter
| Output current | 8A 10A 15A 20A |
| Output power | 40W 50W 75W 100W |
| Input voltage | DC 12V/24V(9-36V) |
| Output voltage | 5V |
| Conversion efficiency | 94%~96% |

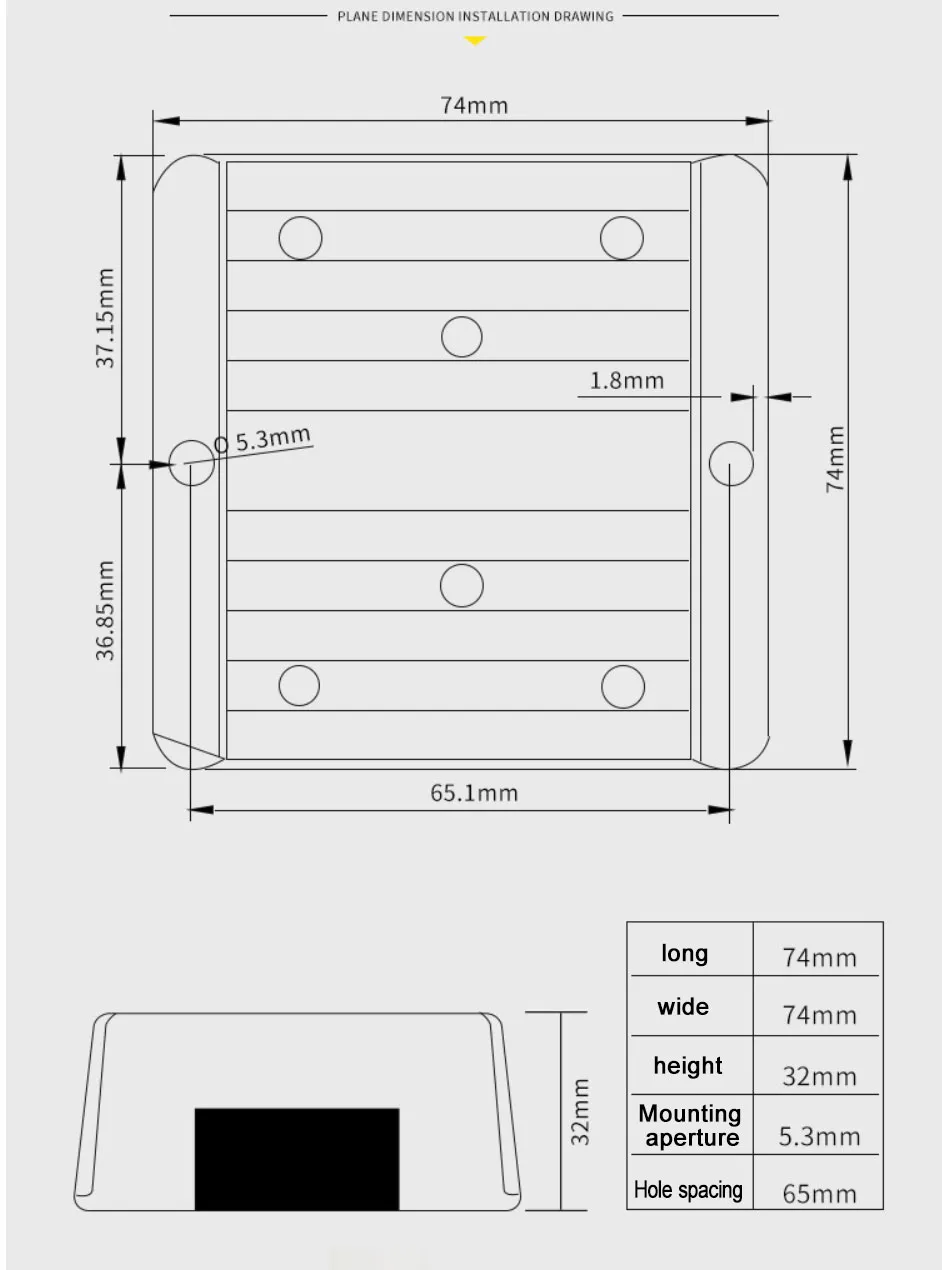

| Dimensions | length 74*width 74*height 32mm |
| Net weight | 300g |
| Wiring mode: | lead, wire length 16.5CM |
| Protection function |
• Over current protection • Over voltage protection • Over temperature rotection • Short circuit protection |
| Warranty time | 1 year |
| Lifespan | >100000 hours |
