Input DC 12V(8V-22v) to Output DC 3.3V 3.7v 4.2v 5v 6v 7.5v 9v 3A step-down Ultra thin DC to DC converter

4.5 (30)
$3.21 $0.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Discount
  • 3% OFF WITH PURCHASE OVER 10 UNITS
  • 6% OFF WITH PURCHASE OVER 50 UNITS
  • 10% OFF WITH PURCHASE OVER 100 UNITS
  • View More
  • View Less
    Please select the information you want X
  • MODEL:
    12V(8V-22v)-3.3v-3A
    12V(8V-22v)-3.7v-3A
    12V(8V-22v)-4.2v-3A
    12V(8V-22v)-5v-3A
    12V(8V-22v)-6v-3A
    12V(10V-22v)-7.5v-3A
    12V(11V-22v)-9v-3A
Quantity:
Availability: In Stock
  • Description
Input  DC  12V(8V-22v) to Output DC  3.3V  3.7v  4.2v  5v 6v 7.5v 9v  3A MAX on-board power step-down DC to DC converter


Product features
1: Chip, resistor, capacitor and all SMT process patches have high reliability and stability
Industrial power PWM chip synchronous rectification technology, built-in strong grid drive, adaptive dead time drive control, integrated intelligent protection function
2: Multi wire wound iron silicon aluminum magnetic ring inductive energy storage ultra-low impedance high frequency electrolytic capacitor filter
Inductor - iron silicon aluminum magnetic ring, high temperature resistant and super stable,
Electrolytic capacitor - ultra low impedance 20m Ω,
105 ℃ for more than 10000 hours.
3: Flame retardant plastic shell, epoxy resin potting
Flame retardant material shell to improve flame retardancy, toughness and strength.
Epoxy resin potting, better heat conduction, IP68 protection grade, waterproof, dustproof and anti-seismic.

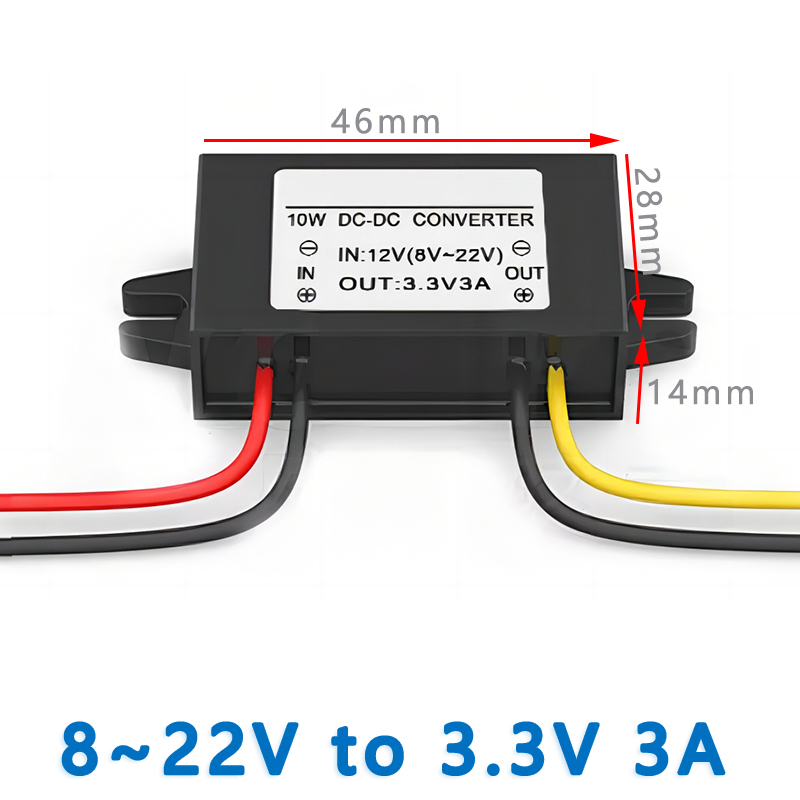

Product structure diagram

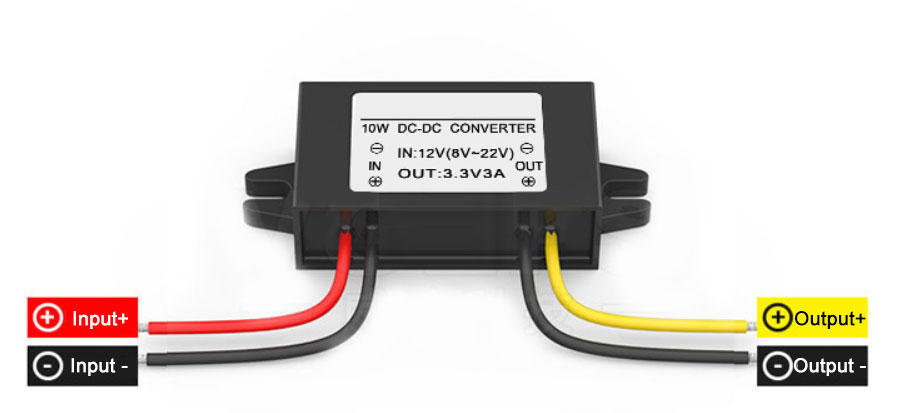

Wiring mode


Applicable voltage range:
On board LED display, recorder, broadband cat / router, printer router, walkie talkie, surveillance camera and various voltage application equipment.

parameter
Product model 12Vto3. 3V-9V 3A
Module properties DC-DC non isolated power supply
input voltage DC12V (8-22V)
output voltage DC3. 3V~9V±0.25V
Output current 3A MAX
output power 10W-27W
conversion efficiency 93%
working temperature -30°C~80°C
Waterproof grade IP68
Overall dimension 63x28x14mm
Net weight 30g
Wire length 13cm
Heat dissipation mode Natural heat dissipation
