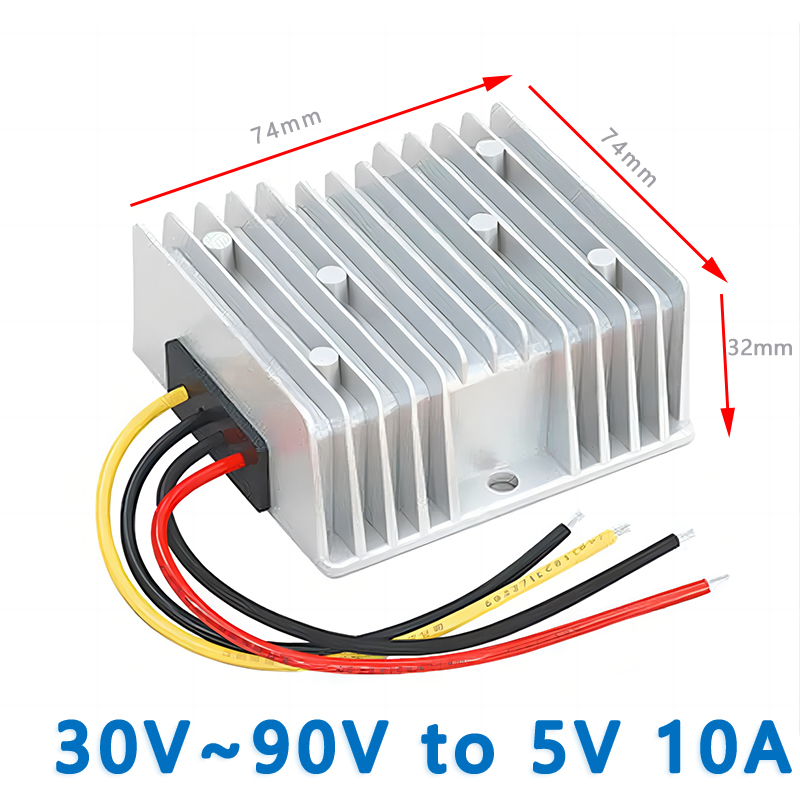

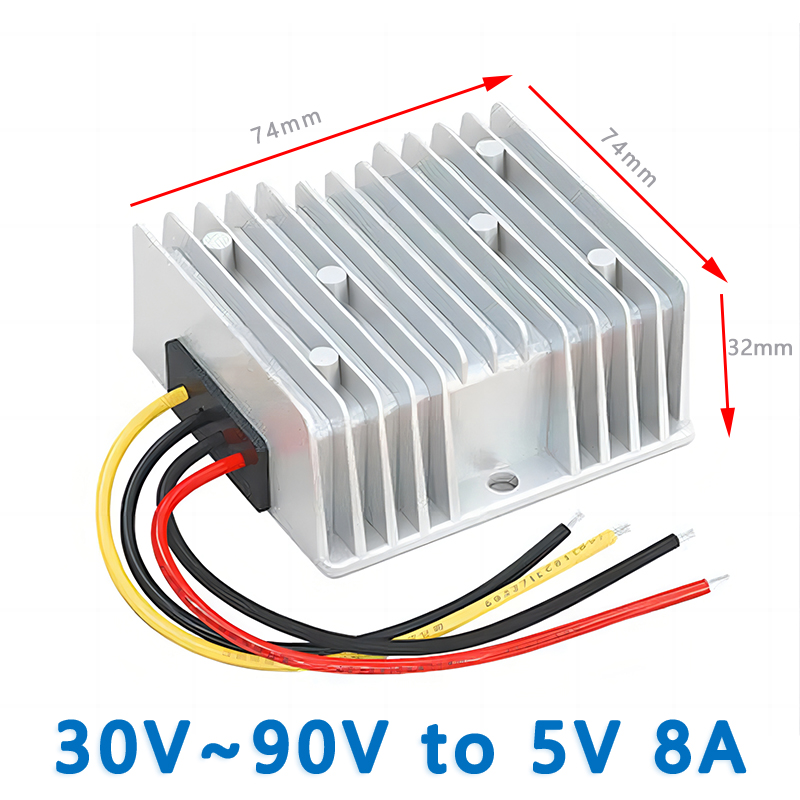

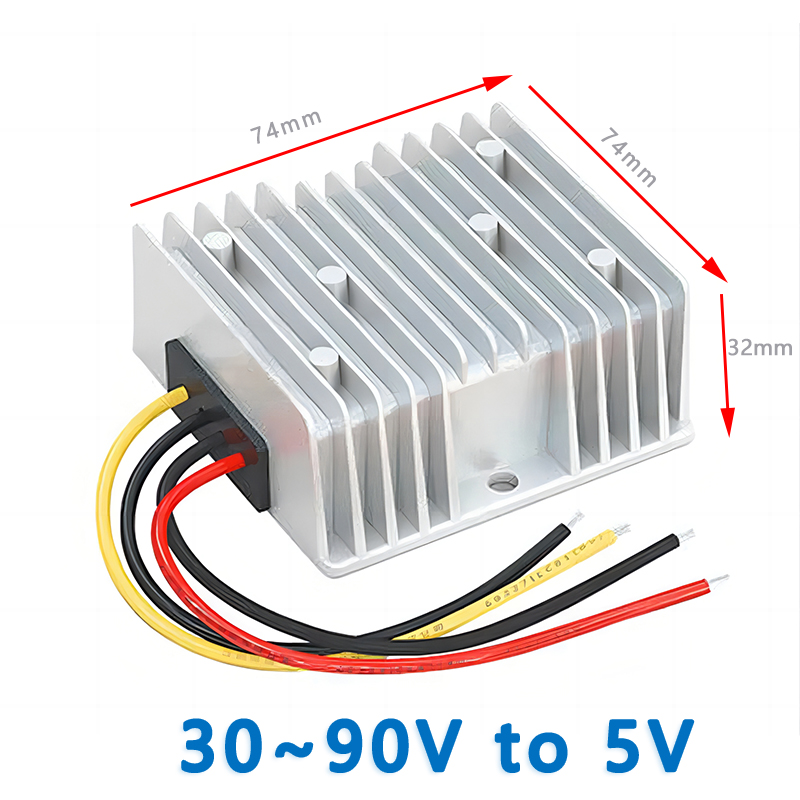

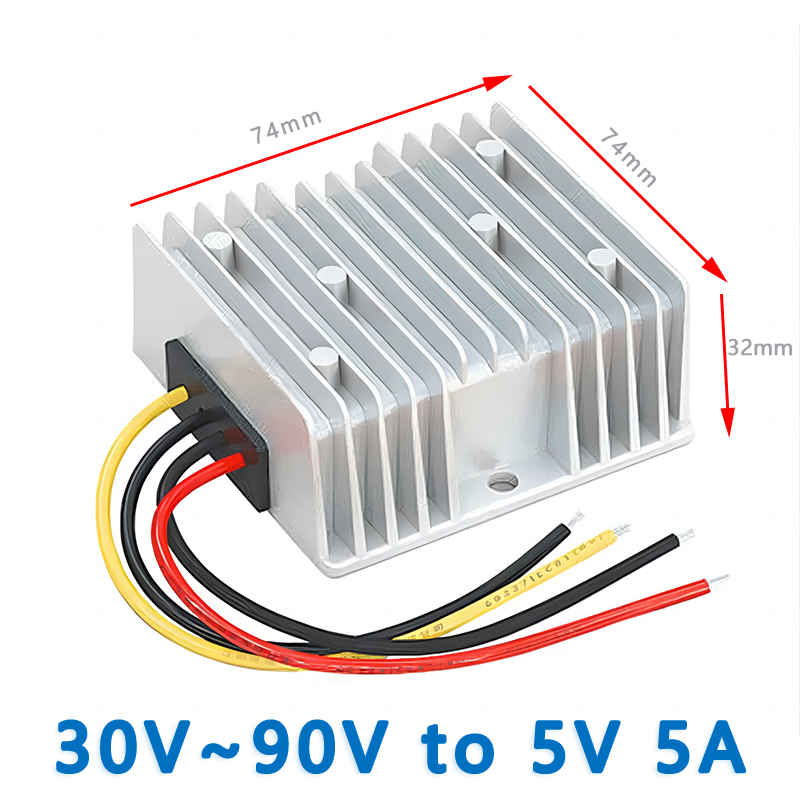

Input DC 36V 48V 60V 72V (30-90V) to Output DC 5V 5A 8A 10A 12A 15A 20A DC DC Converter
- 3% OFF WITH PURCHASE OVER 10 UNITS
- 6% OFF WITH PURCHASE OVER 50 UNITS
- 10% OFF WITH PURCHASE OVER 100 UNITS
|
Product Name |
Fulree DC Converter 36V 48V 60V 72V to 5V with ACC |
|
|
Brand |
Fulree |
|
|
Module Properties |
non-isolated buck module |
|
|
Rectification |
synchronous rectification |
|
|
Input |
||
|
Input Voltage |
DC36V 48V 60V 72V |
|
|
Input Voltage Range |
DC 30-90V |
|
|
Output |
||
|
Output Voltage |
DC 5V |
|
|
Output Current |
5A / 8A / 10A / 12A / 15A / 20A Max |
|
|
Output Power |
25W / 40W / 50W / 60W / 75W / 100W Max |
|
|
Conversion Efficiency |
92% | |
|
Voltage regulation |
±3% |
|
|
Load regulation |
± 2% |
|
|
Ripple (Full load test) |
< 100mV |
|
|
No-load current |
<100mA |
|
|
Working Temperature |
-40~80℃ |
|
|
Waterproof Rating |
IP68 |
|
|
Protection |
Over-current protection |
|
|
Overheat protection |
||
|
Short-circuit protection |
||
|
Application |
5V LED display, phone, dash cam, gps and etc load device | |
|
Certification |
CE/RoHS |
|
|
Case Material |
Aluminum |
|
|
Product Size (L x W x H) |
74*74*32mm |
|
|
Product Weight |
280g |
|
|
Warranty |
12 months, lifetime up to 100,000 hours |
|
|
Cooling Way |
Free air convection |
|
|
OEM&ODM Service |
Accept | |
