| Product Name | 36V 48V to 19v dc converter |
| Input rated voltage | DC 36V 48V |
| Input voltage range | DC 30V-60V |
| Efficiency | 93% (half load), 91% (full load) |
| Output voltage | DC 19V |
| Output current | 1A / 2A / Max |
| Protection | Over-current,Over-temperature Protection |
| Short-circuit protection | NO, if need pls add fuse on the positive pole on input |
| Input Reverse Polarity Protection | None (Please Series diode at the input port.) |
| NW | 97G |

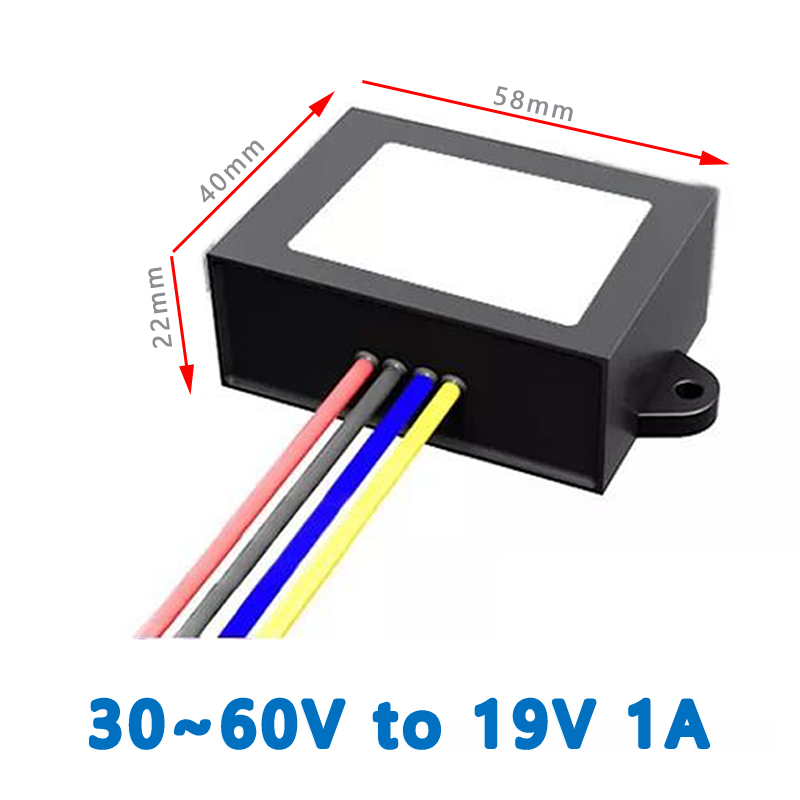

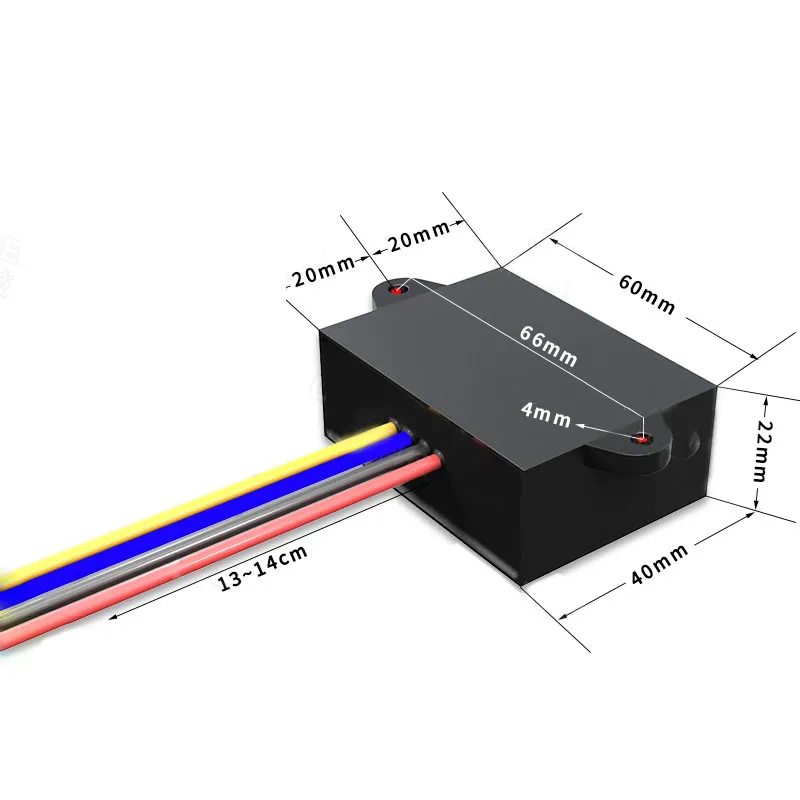

| Product size | 58*40*22MM |
|
Other output current option for 12V to 19V |
8A 10A, 15A(pls contact with our sales manager if need) |
|
Attention: >Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged |
|
