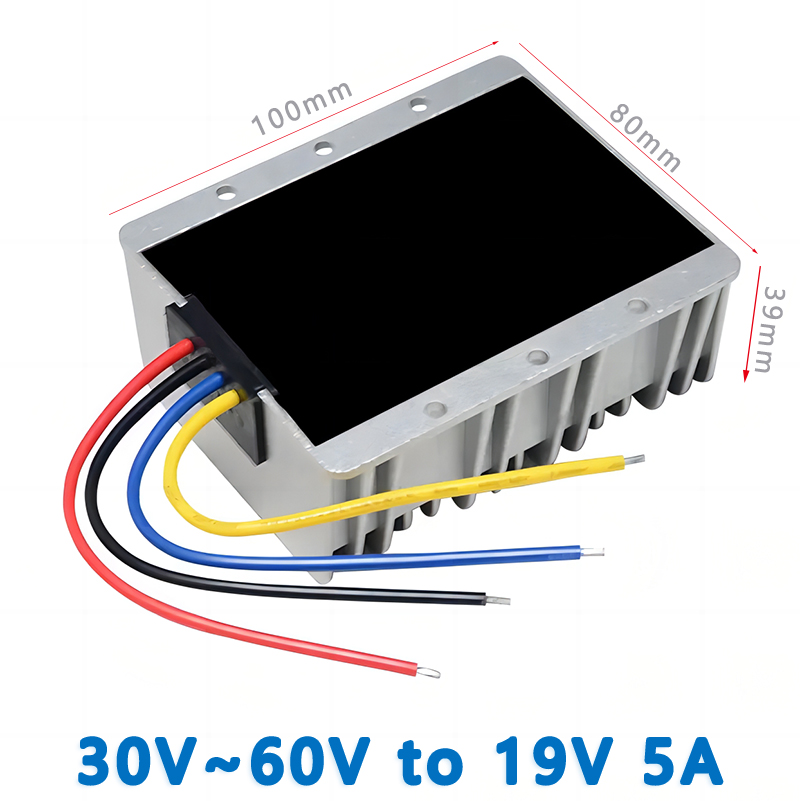

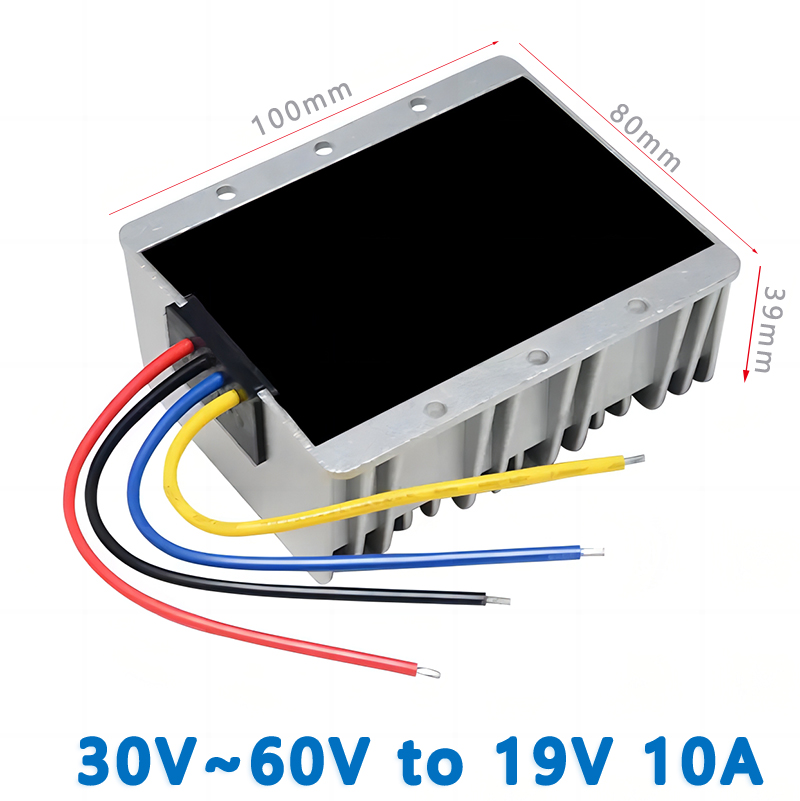

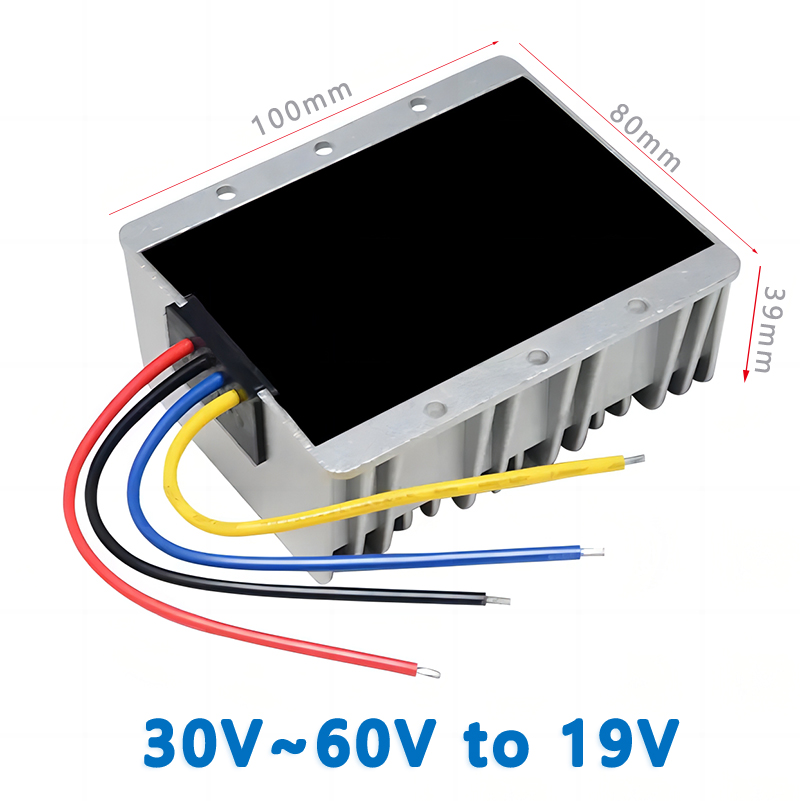

Input DC 36V 48V(30V-60V) to Output dc 19v 5A 8A 10A Isolated DC-DC converter
Product features:
Overvoltage protection: when the power supply is damaged, the output is automatically disconnected to prevent the high-voltage direct breakdown of electrical appliances when the power supply is damaged, so as to reduce the damage rate of electrical appliances.
Overcurrent protection: when the output current is greater than the set value, the output voltage decreases gradually until the converter is shut down without output.
Short circuit protection: under normal use, the output of the converter is short circuited to the ground instantly, which will not cause damage to the power converter.
Over temperature protection: the working environment temperature of the converter can be - 40-85 ℃ when the shell temperature exceeds 85 ℃ Converter automatic protection.
Output anti reverse connection protection: the output positive and negative poles are connected incorrectly, and the power module is not damaged. Prevent the wrong connection of output positive and negative electrodes and reduce the damage rate of power supply.
parameter
| Output current |
5A 8A 10A |
| input voltage |
DC 36V 48V(30V-60V) |
| output voltage |
DC19V |
| conversion efficiency |
95% |

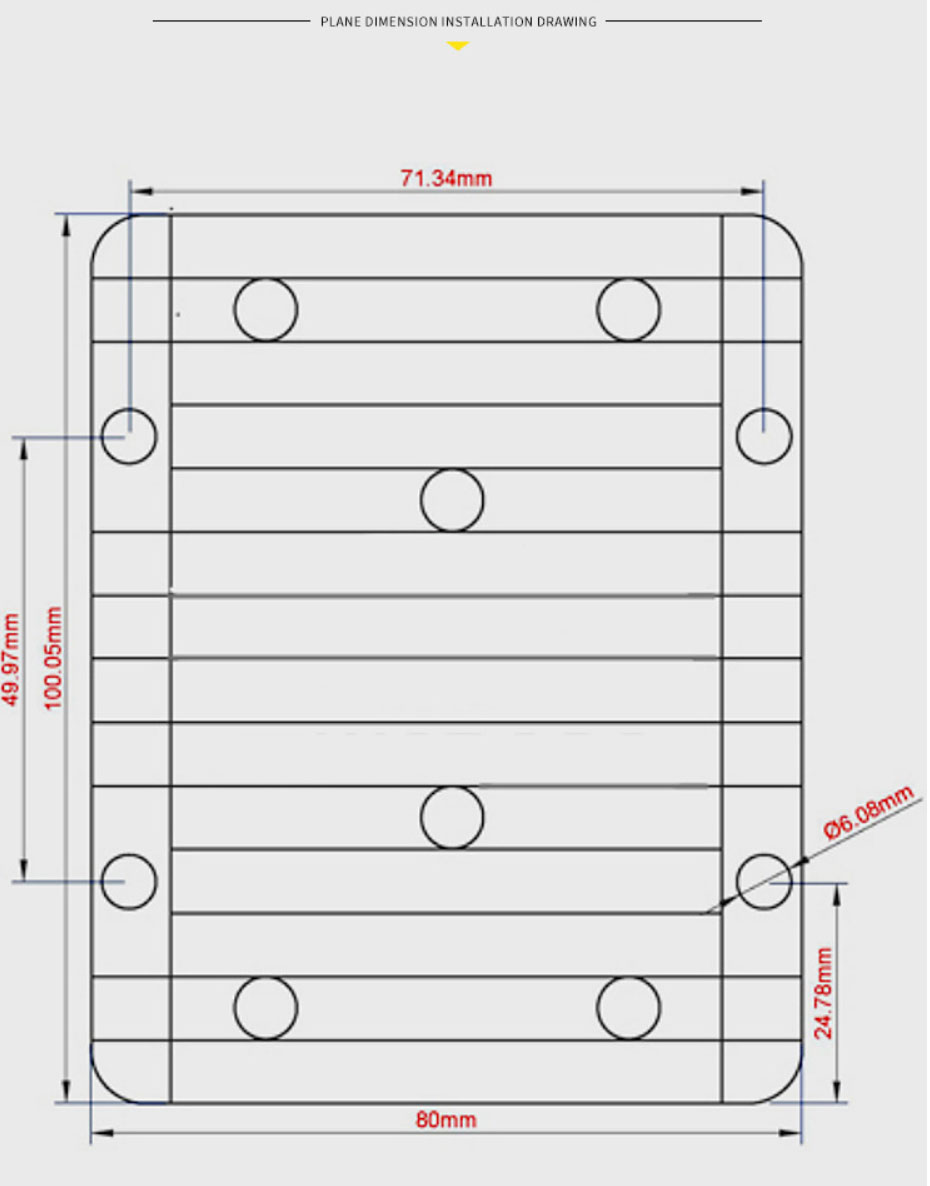

| Overall dimension |
Length 100 * width 80 * height 39mm |
| Net weight of finished product |
550g |
| Wiring mode |
Lead, wire length 16.5cm |
| Warranty time |
1 year |
| life |
>100000 hours |
