  • Description

Input   DC  12V 24V(10V~40V)  to  Output dc 7.5V  10A  15A    20A  25A   30A  DC-DC   step  down converter

Product Name DC 12V 24V(10V~40V) to DC 7.5V  10A 15A  20A 25A  30A  DC to DC  converter
Input rated voltage 12V 24V(10V~40V)
Input voltage range 12V 24V(10V~40V)
Efficiency 93% (half load), 91% (full load)
Output voltage 7.5V
Output current 10A 15A  20A 25A  30A
Output rated power 75W~225W
Protection Over-current,Over-temperature Protection


Short-circuit protection NO, if need pls add fuse on the positive pole on input
Input Reverse Polarity Protection None (Please Series diode at the input port.)
NW 280G

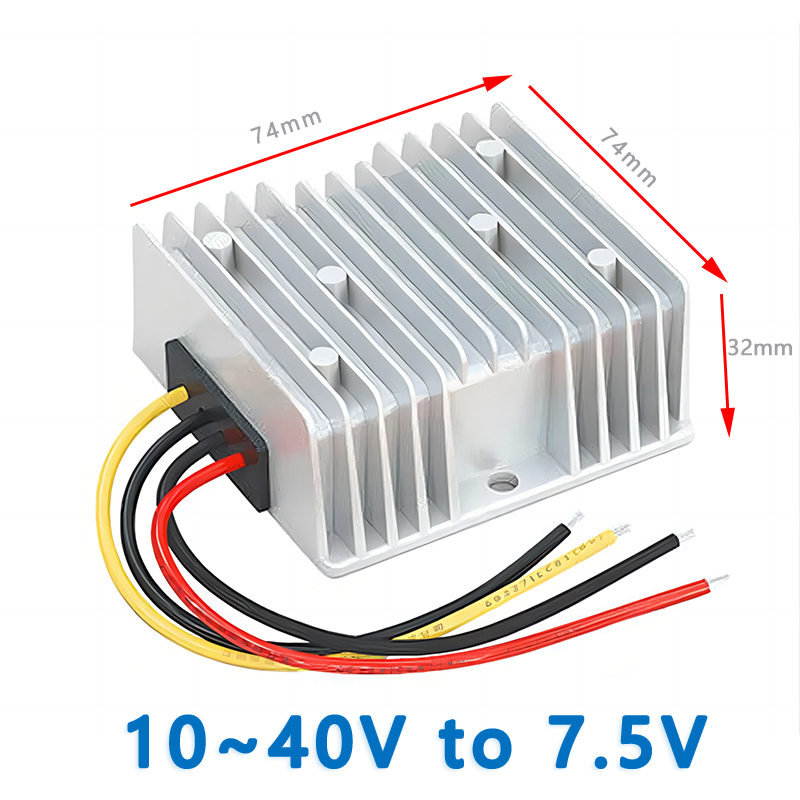

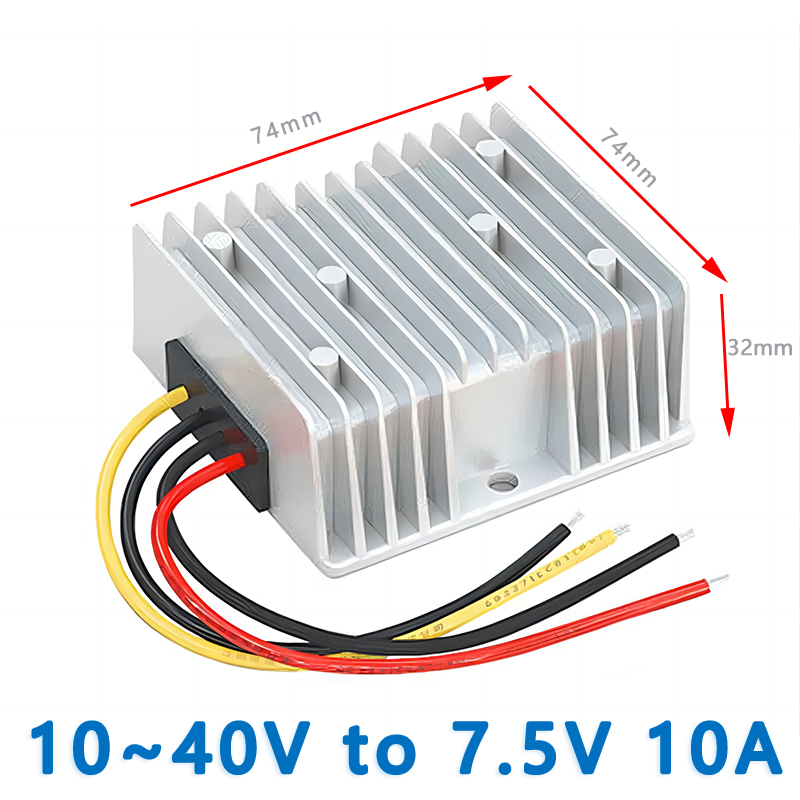

Product size  74*74*32MM



 Attention:

>Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged
>To assure this converter has the sufficient voltage and power, pls make sure the voltage and power input is enough.
