Product Name

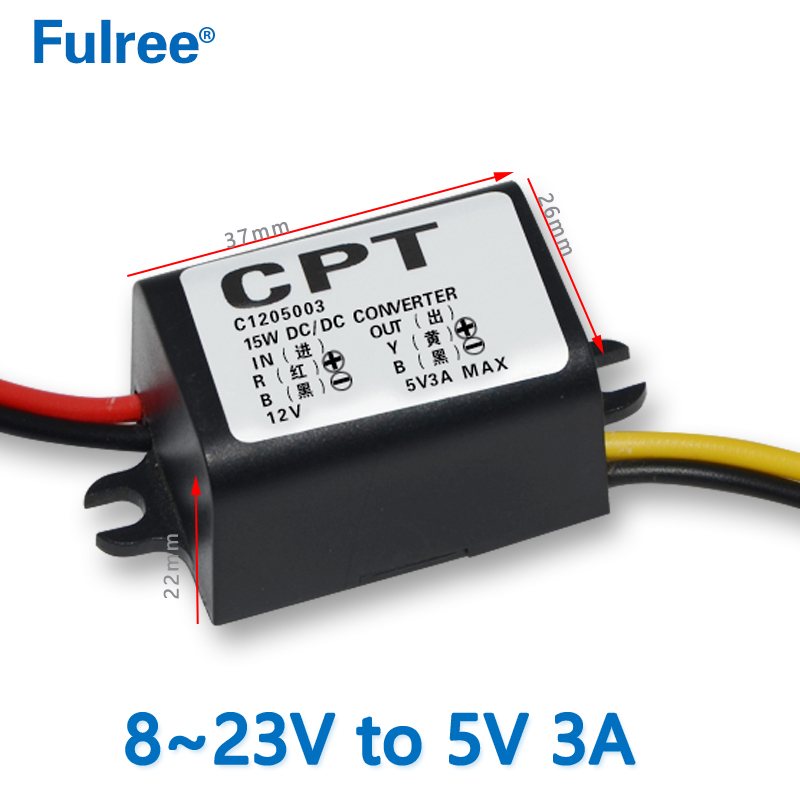

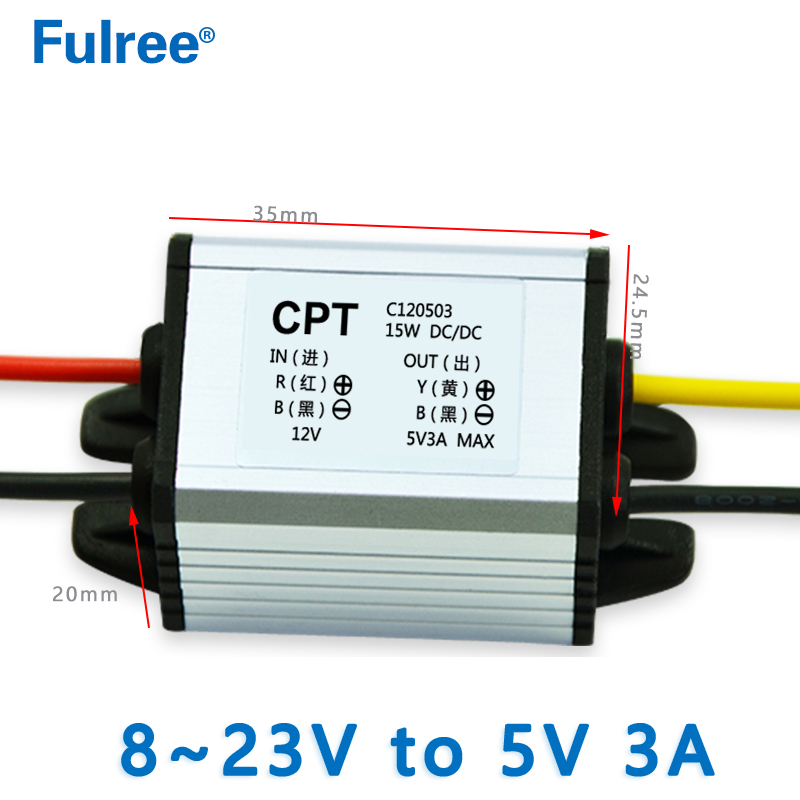

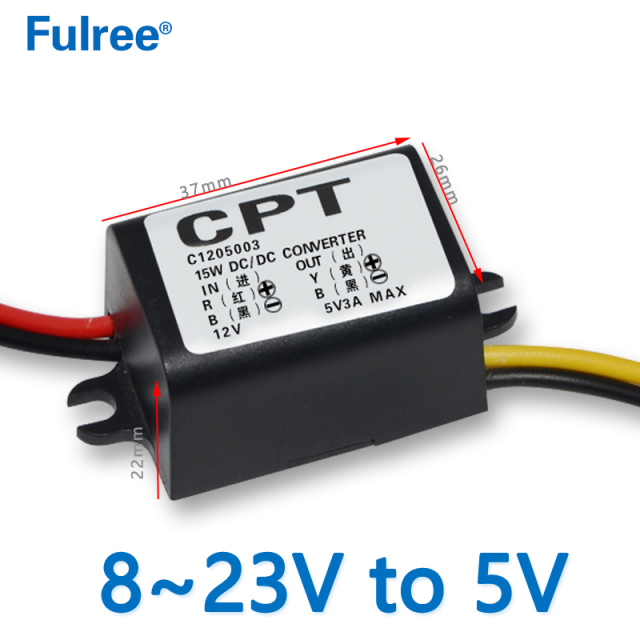

Fulree DC DC Converter 12V to 5V 3A 15W Max

Brand

Fulree

Model No.

Module Properties

non-isolated buck module

Rectification

synchronous rectification

Input (13-14cm)

Input Voltage

DC 12V

Input Voltage Range

DC 8-23V

Output (13-14cm)

Output Voltage

DC 5V

Output Current

3A Max

Output Power

15W Max

 Conversion Efficiency

Voltage regulation

±1%

Load regulation

± 2%

Ripple (Full load test)

< 150mV

No-load current

<100mA

Working Temperature

-40~80℃

Waterproof Rating

IP68

Protection

Over-current protection

Overheat protection

Output Short-circuit protection

Input Reverse Polarity protection

Application

Certification

CE/RoHS

  Case Material

Aluminum / Plastic, anti-shock, anti-drop, anti-moisture, anti-dust and so on

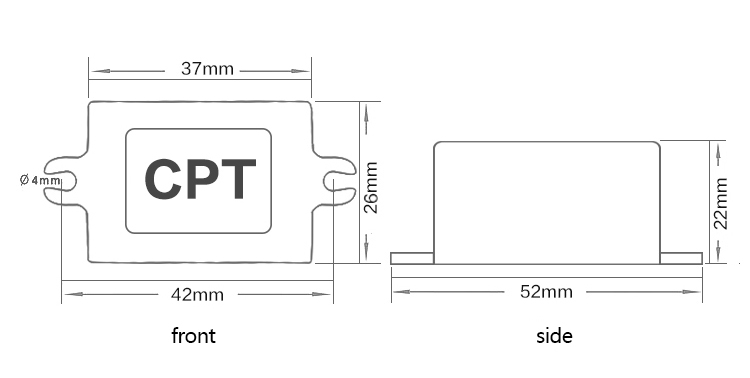

  Product Size (L x W x H)

AL:35*24.5*20mm / ABS:37*26*22mm

Product Weight

 AL:40g / ABS: 35g

Warranty

12 months, lifetime up to 100,000 hours

Cooling Way

Free air convection

OEM&ODM Service
