Product Name |

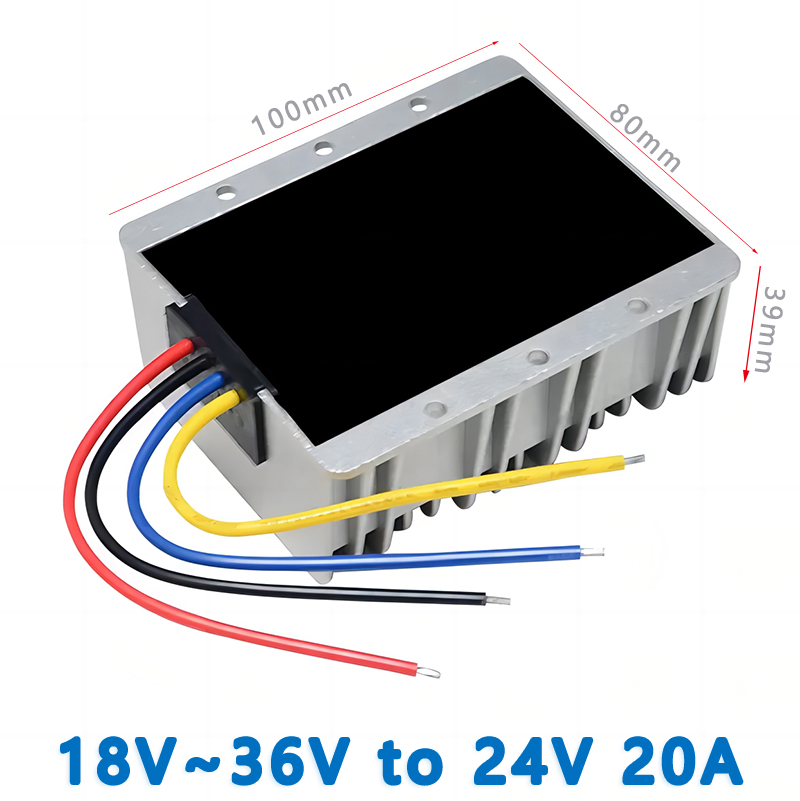

DC DC Buck Boost Converter 24V (18-36V) to 24V |
|
Brand |
Fulree |
|
Module Properties |
isolated buck boost module |
|
Rectification |
synchronous rectification |
|
Input |
|
|
Input Voltage |
DC 24V (18-36V) |
|
Input Voltage Range |
DC24V (18-36V) |
|
Output |
|
|
Output Voltage |
DC24V |
|
Output Current |
15A / 20A |
|
Output Power |
360W 480W |
|
Conversion Efficiency |
95% (@ 12V in) |
|
Voltage regulation |
±1% |
|
Load regulation |
± 2% |
|
Ripple (Full load test) |
< 170mV |
|
No-load current |
60mA |
|
Working Temperature |
-35°c ~ +70°c |
|
Waterproof Rating |
IP68 |
|
Protection |
Over-current protection |
|
Over-voltage protection |
|
|
Overheat protection |
|
|
Short-circuit protection |
|
|
Application |
Trucks,Golf Carts,Forklifts,Buses,Loaders,Logging Vehicles Wind Power System,Solar Power System, Electromotor,Telecommunications,Boat & Yacht and so on... |
|
Certification |
CE/RoHS/FCC |
|
Case Material |
Aluminum, anti-shock, anti-drop, anti-moisture, anti-dust and so on |
|
Product Size (L x W x H) |
100*80*39mm |
|
Product Weight |
500g |
|
Warranty |
12 months, lifetime up to 100,000 hours |
|
Cooling Way |
Free air convection |
|
OEM&ODM Service |
Accept |
