Waterproof Input AC 12V (AC 10-28V and DC 15-40V ) to Output DC 12V 1A / 1.5A / 2A / 3A Max AC/DC to DC converter CCTV Monitor Camera Supply Module
Product Description
|
Product Name
|
12V AC to 12V DC Converter
|
|
Brand
|
Fulree
|
|
Model No.
|
AD12120**B |
|
Module Properties
|
non-isolated buck module
|
|
Rectification
|
synchronous rectification
|
|
Input
|
|
Input Voltage
|
AC 12V
|
|
Input Voltage Range
|
AC 10-28V DC 15-40V
|
|
Output
|
|
Output Voltage
|
DC 12V
|
|
Output Current
|
1A / 1.5A / 2A / 3A Max, auto-adaption
|
|
Output Power
|
12W / 18W / 24W / 36W Max
|
|
Conversion Efficiency
|
85%
|
|
Voltage regulation
|
±1%
|
|
Load regulation
|
± 2%
|
|
Ripple (Full load test)
|
< 100mV
|
|
No-load current
|
< 100mA
|
|
Working Temperature
|
-40~80℃
|
|
Waterproof Rating
|
IP68
|
|
Protection
|
Over-current protection
|
| Overheat Protection |
|
Short circuit protection
|
|
Application
|
GPS Navigation, Monitoring, Motors
DVD,LED bulb lights,LED Display,Solar Panels System
Electrical appliances, industrial equipment, telecommunications and so on.
|
|
Certification
|
CE/RoHS
|
|
Case Material
|
Plastic, anti-shock, anti-drop, anti-moisture, anti-dust and so on
|
|
Product Size (L x W x H)
|
46*32*18mm
|
|
Installation Cable Length
|
13-14cm
|
|
Product Weight
|
65g
|
|
Warranty
|
12 months
|
|
Cooling Way
|
Free air convection
|
|
OEM Service
|
Accept OEM logo/label/manual/packing box, Contact Fulree Now!
|
|
Customized Service
|
Accept customized converter such as input/output voltage, cable, interface and etc, Contact Fulree Now!
|

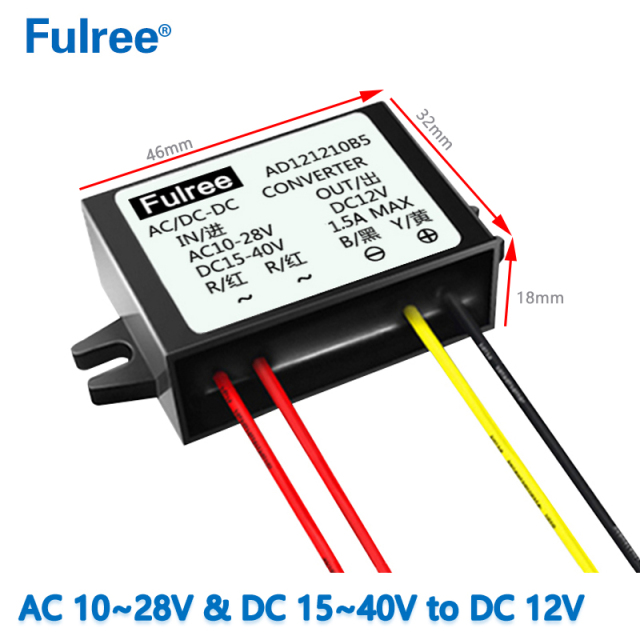

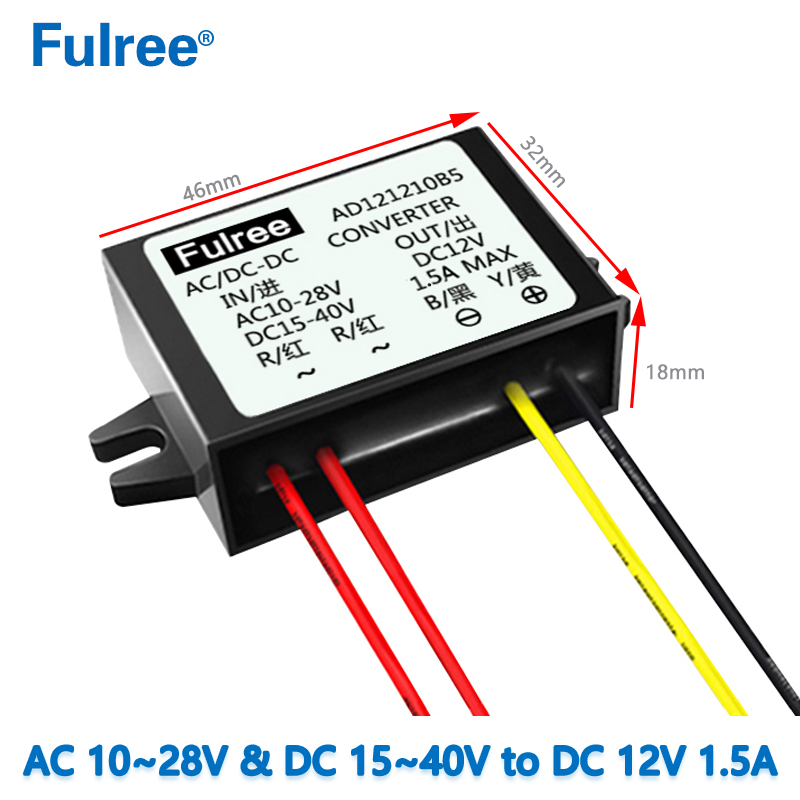

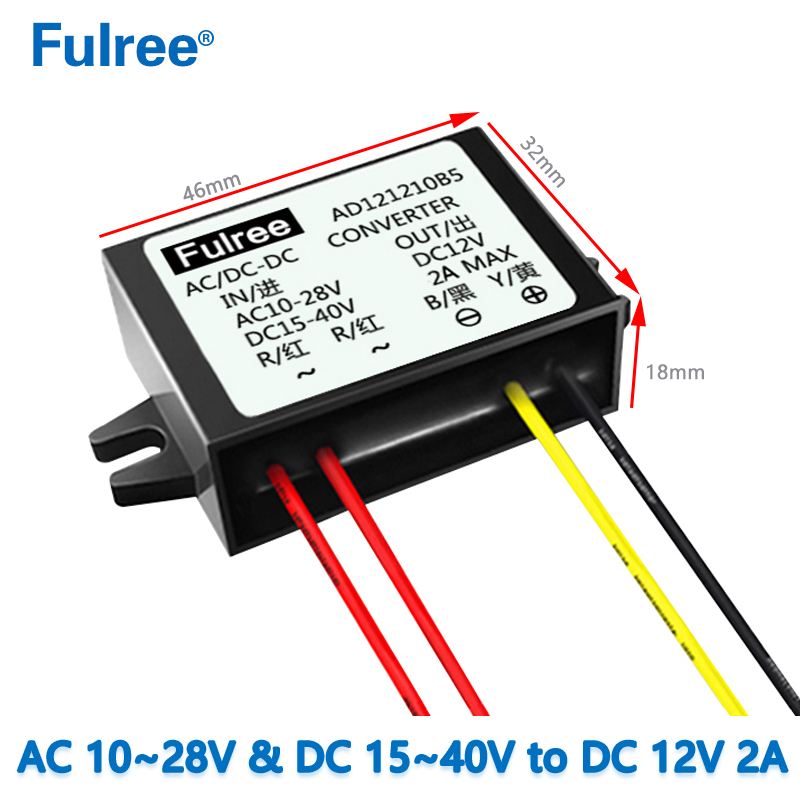

Product Picture
Waterproof 12V AC Convert to 12V DC 1A 1.5A 2A 3A Power Converter AC12V to DC12V Car CCTV Monitor Camera Supply Module
Packaging & Delivery
1. We pack each item with OPP bag individually, then put all items in export cartons (around 50-300pcs per carton). The export cartons will be taped to protect the parcel from water stains or something others, it's not easy to break or damage during the shipment by air or sea.
2. We make shipment between 3-15 days for normal order and 3 to 5 days for samples.
3. We can offer you express like FedEx, DHL, UPS & TNT when you make a relatively small order like samples. The ocean shipping is also available when you place a big order. The customers can use their own freight forwarder account.
4. If you need some special request on shipment, please note us before placing order.
5. In order to clear customs soon, please provide accurate receiving address including zip code and taxes number. The HS code is 8504401400.
Why Choose Fulree?
Service ......... RMA(24/7 Technical Support), OEM, ODM
Quality...........100% full inspection before delivery, Less than 0.5% of failure rate!
Warranty....... Up to 12 months!
Price..................Competitive Factory Price!
Professional......Produce security DC DC converter for 8 years in China!
Reliable.............One of the largest power supply business manufacturers in China!
Assurance.........Any problem of quality, Fulree would refund the payment!
Payment.............T/T bank wire transfer, Escrow, West Union and Paypal!
Delivery...............Fast! After receive payment 3-15 days for normal small orders!
Privacy …….....Protect your sales area, designs, ideas and all your private information!
Fulree................Your best DC DC Converter Solution Choice! We Design and support!
