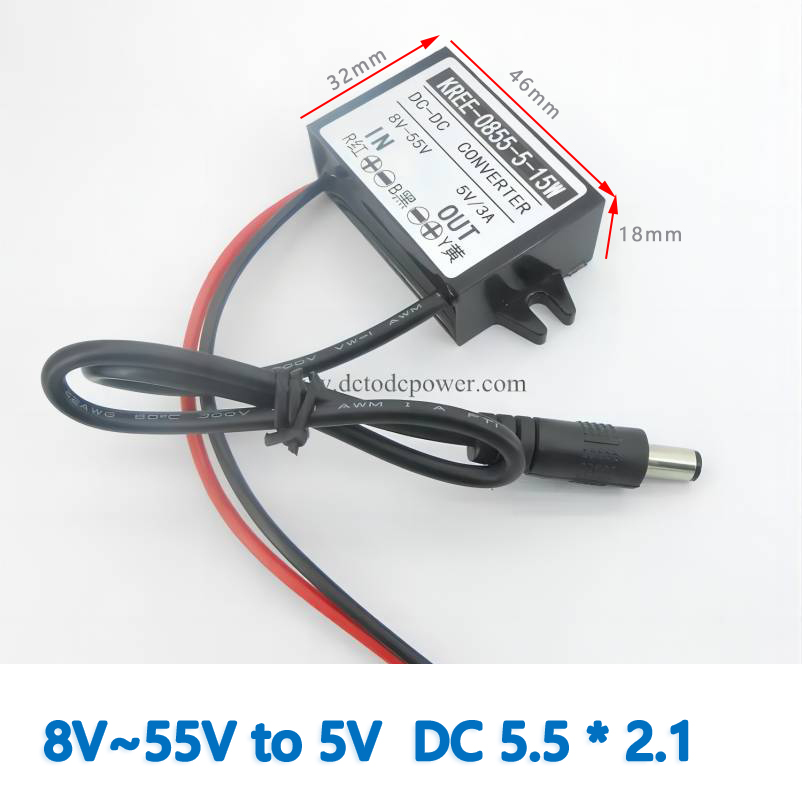

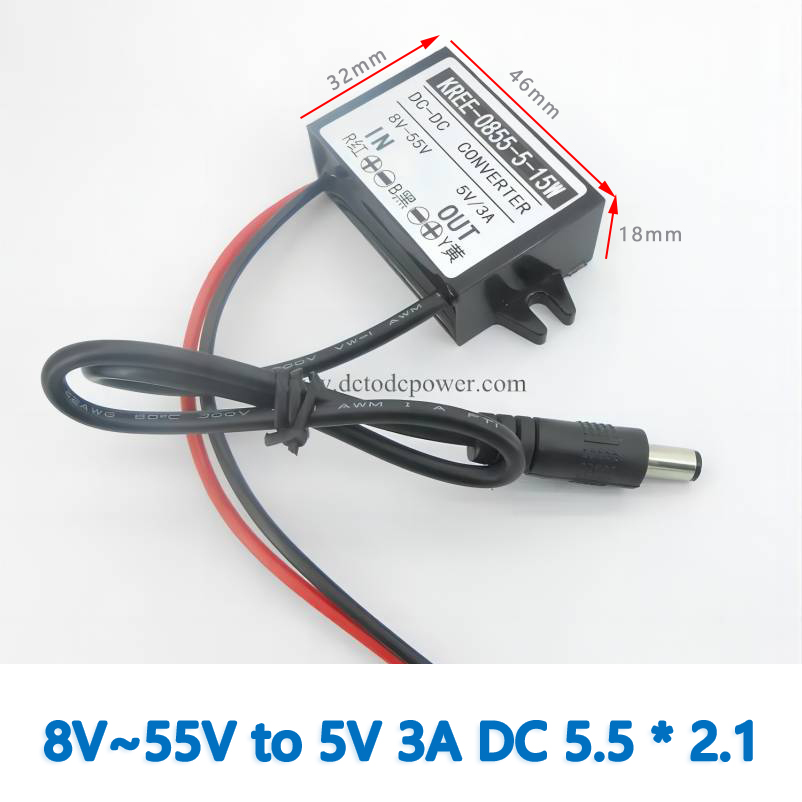

DC-DC converter Input DC 12V 24V 36V 48V （8-55V) to Output DC 5V 3A 15W

DC-DC converter Input  DC  12V 24V 36V 48V （8-55V) to Output DC  5V 3A 15W

Keywords: module DC-DC buck power converter

Product Type: KREE-0855-5-15W

Products Classification: 5.5 * 2.1DC head 1A 5.5 * 2.1DC head 3A

Product details:
Output Power: 100W or less
Voltage conversion: Other
Whether with USB: yes

Parameters Table
Input voltage: DC12V 24V 36V 48V (between 8V-55V)
Output voltage: DC5V
Output Current: 1A 3A
Output Power: 5W 15W
Conversion efficiency: up to 96% of the output ripple: 50mV (MAX)
Operating temperature: Industrial grade (-40 ℃ to + 85 ℃)

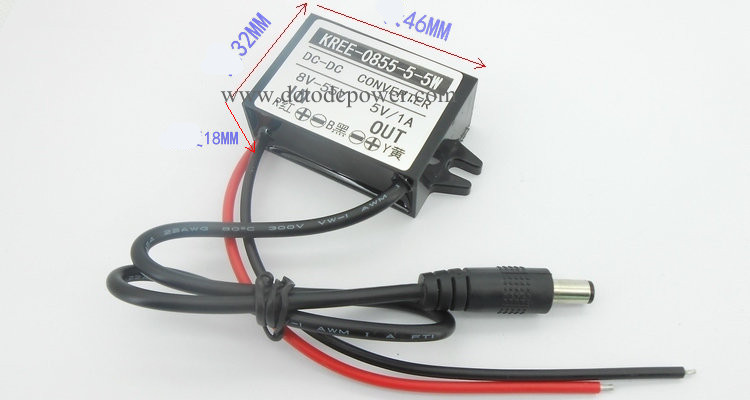

Volume: 46 * 32 * 18mm
Weight: 65 g

Features

1. Imported integrated switching regulator module manufacturing.

2. synchronous rectification, the conversion rate of 96% or more, very low heat.

3. comes with reverse polarity protection, over-voltage, over-current, over-temperature, short circuit protection automatic braking function, and work in the conditions of recovery.

4. epoxy potting, waterproof, shock, moisture and dust.

5. Enter the length of the line is about 14CM, slim, small size, easy installation.

6. Connection: Enter the red (+) black line (-), the output: (12V) DC head size: the positive, negative outside, on the 20th red and black and copper wire, wire length 31CM (include DC head)

7, the output DC head many models; we can also be customized to other models; for example (5.5 * 2.5) (3.5 * 1.35) (2.5 * 0.7) require custom friends must communicate with customer service, oh well then photographed.

7. Scope: bus, CMB, large trucks, motor car, solar power, bus display, taxi advertising screen, absolute taxi radio without interference, car audio, LCD TVs, LED, intercom and monitoring systems .
