Description

Fulree Input DC 12V 24V( 8-35V) Reduce to Output DC 5V 6V 9V 3.3V 3.7V 4.2V 7.5V 5A MAX Step Down Buck Voltage DC TO DC Converter Regulator Transformer Module

Product Overviews

Model	F35J**V5A2S
Input rated voltage	DC 12V 24V
Input voltage range	DC 8-35V (Minimum differential pressure 3V)
Efficiency	95%
Output voltage	3.3V / 3.7V / 4.2V / 5V / 6V / 7.5V / 9V
Output current	5A MAX
Output rated power	16.5W / 18.5W / 21W / 25W / 30W / 37.5W / 45W Max
Voltage regulation	< 3%
Load regulation	< 2%
Working temperature	-40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)
Module Properties	non-isolate module
Rectification	synchronous rectification
Waterproof rating	IP67
Full load temperature rise:	45°c
Protection	Over-current, Over-temperature protection,Short circuit Protection
Input Reverse Polarity Protection	None (Please Series diode at the input port.)
NW	approx 35G

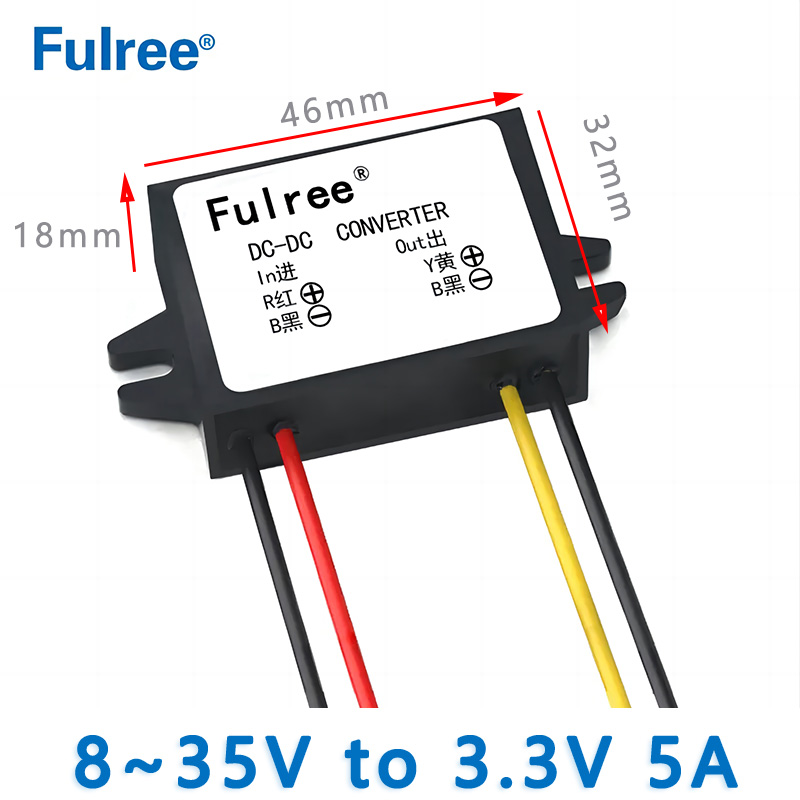

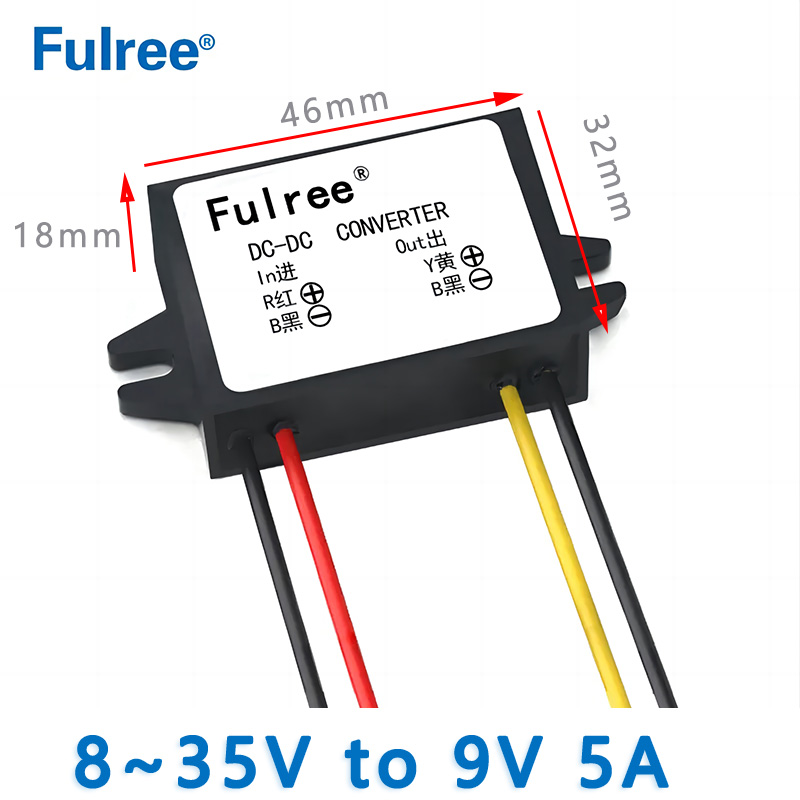

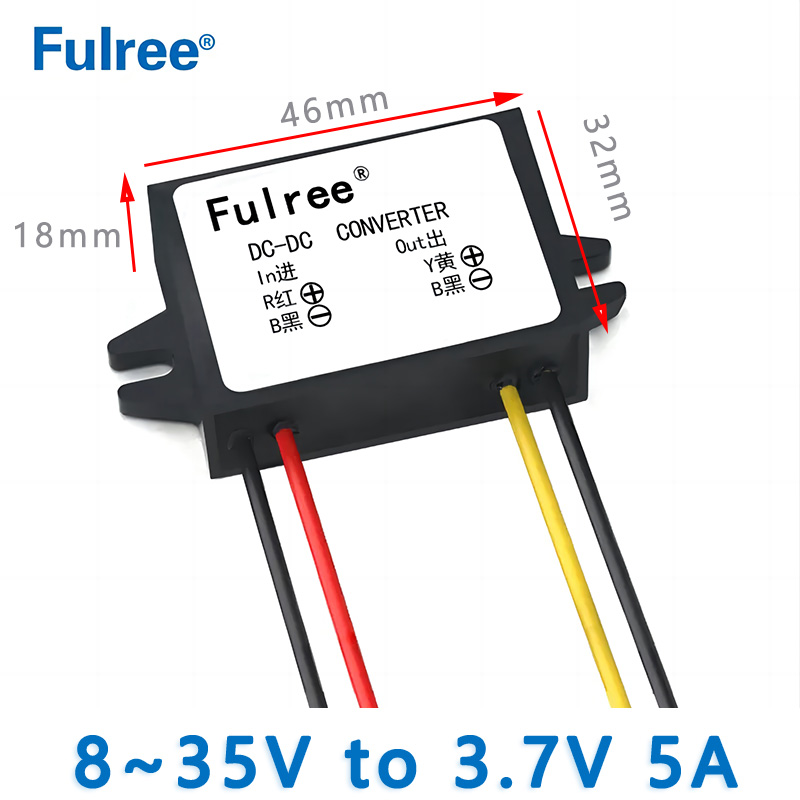

Product size	463218mm
Other output current option DC DC Converter 12V24V TO 3.3-9V	3A/8A/10A/15A (pls contact with our sales manager if need)
Attention: >Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged >To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.
