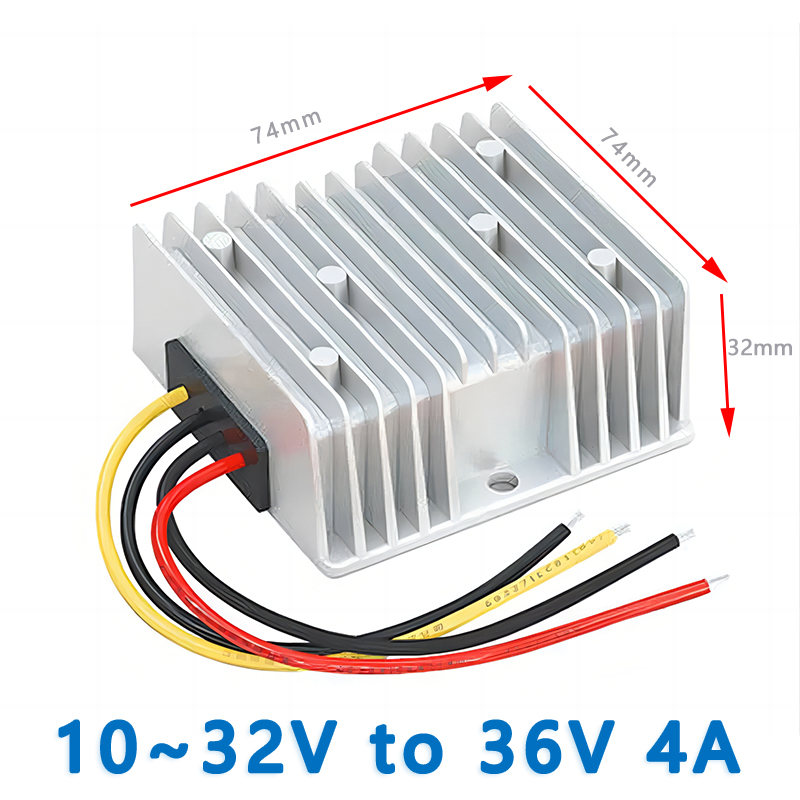

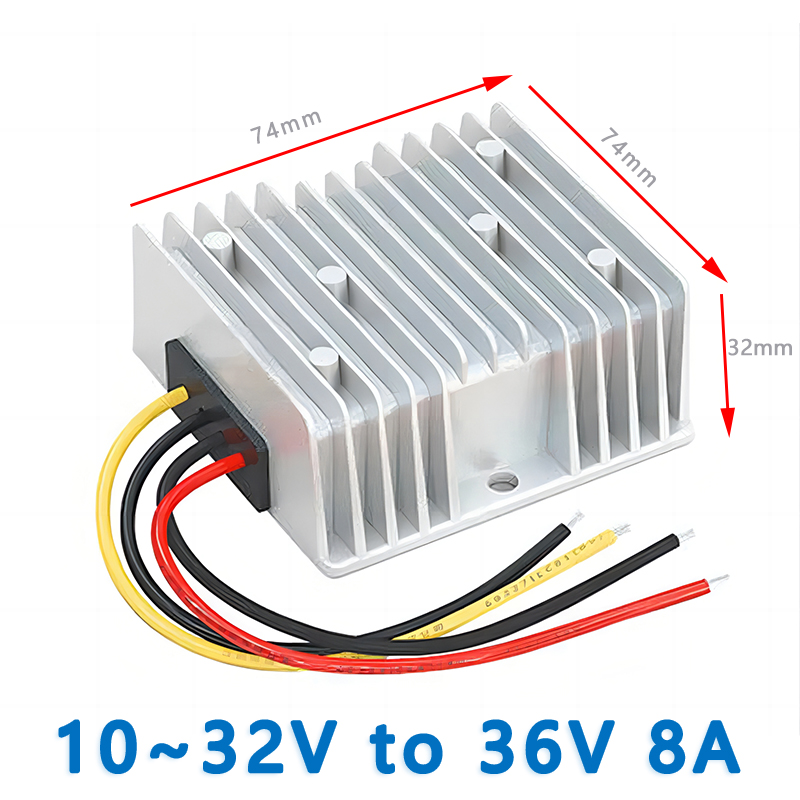

| Model | F12S36V*A5L |
| Input rated voltage | DC 12V 24V |
| Input voltage range | DC 10-32V |
| Efficiency | 96% |
| Output voltage | DC 36V |
| Output current | 3A / 4A / 5A / 6A / 8A Max |
| Output rated power | 108W / 144W / 180W / 216W / 288W Max |
| Output peak power | 170W |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Working temperature |
-20°c ~+80°c( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation) |
| Module Properties |
non-isolate module |
| Rectification | synchronous rectification |
| Waterproof rating | IP67 |
| Full load temperature rise: | 45°c |
| Protection |
Over-current, Over-temperature protection,Instant absorption of high voltage protection |
| Input Reverse Polarity Protection | None (Please Series diode at the input port.) |
| NW | approx 280G |
| Product size | 74*74*32mm |
|
Other output current option for DC 12V24V TO 36V |
3A/5A/8A (pls contact with our sales manager if need) |
|
Attention: |
|
