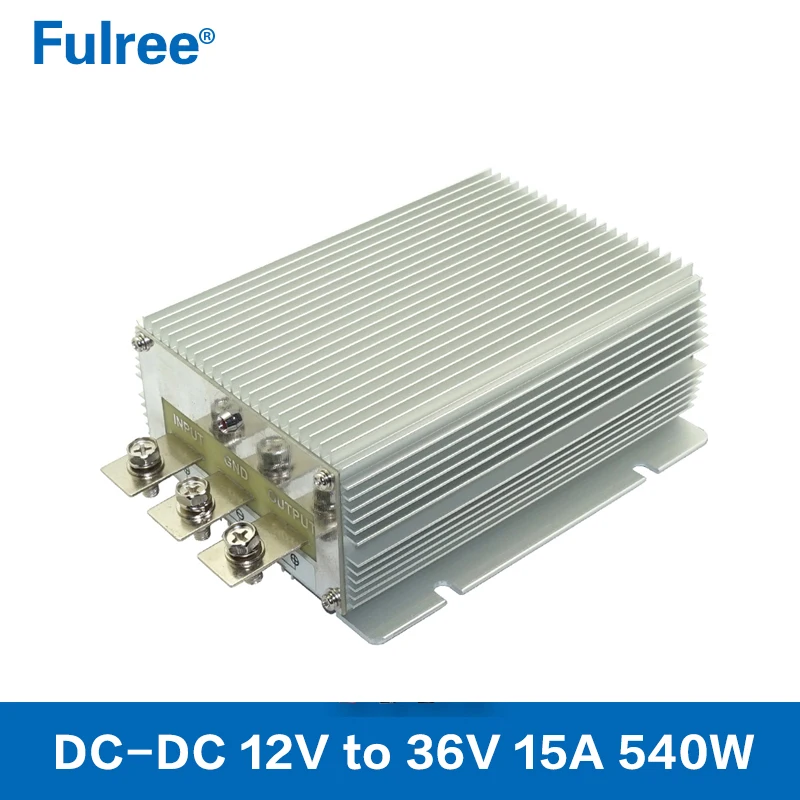

| Model | 123615 / 123620 |
| Type | DC DC Converter |
| Input rated voltage | DC 12V DC |
| Input voltage range | DC 10-18V DC |
| Efficiency | 96% |
| Output voltage | DC 36V |
| Output current | 15A / 20A Max |
| Output rated power | 540W / 720W Max |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Working temperature |
-40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation) |
| Module Properties |
non-isolated boost module |
| Rectification | synchronous rectification |
| Waterproof rating | IP68 |
| Full load temperature rise: | 50°c |
| Protection | Over-current,Over-voltage and Overheat Protection |
| Input/Output Installation | INPUT---------Input Positive“+” GND------Input/Output Negative "-" OUTPUT------Output Positive "+" |
| NW | 1.70kg |

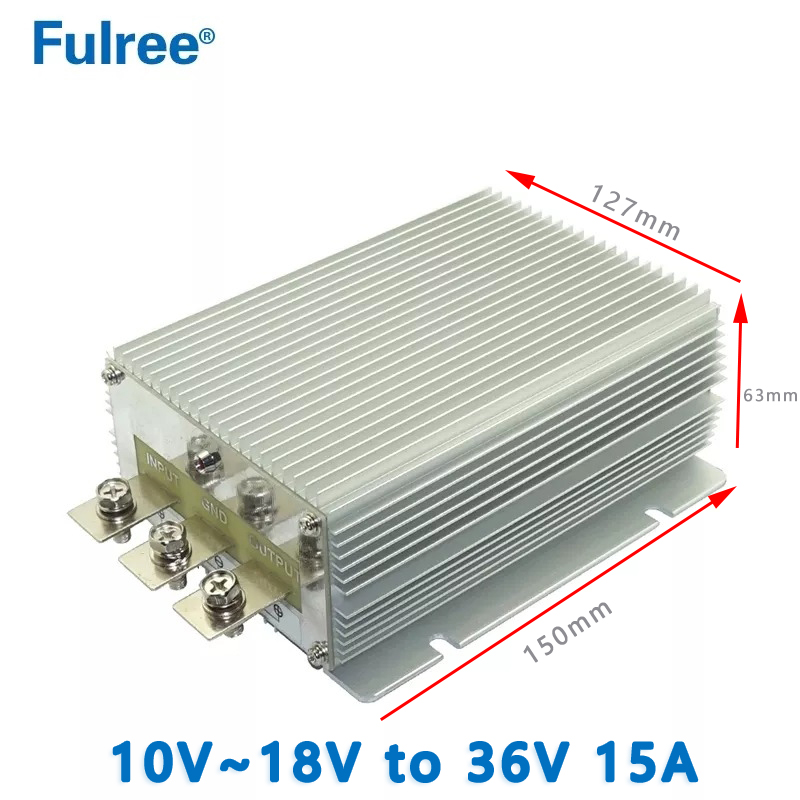

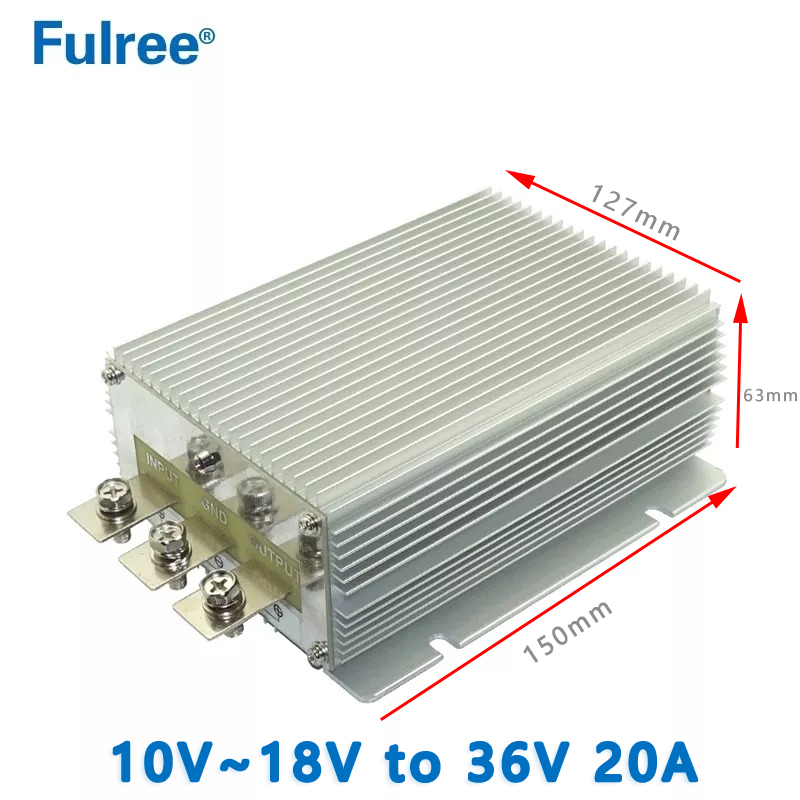

| Product size | 150*127*63mm |
|
Attention: >Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged |
|
