Product Name |

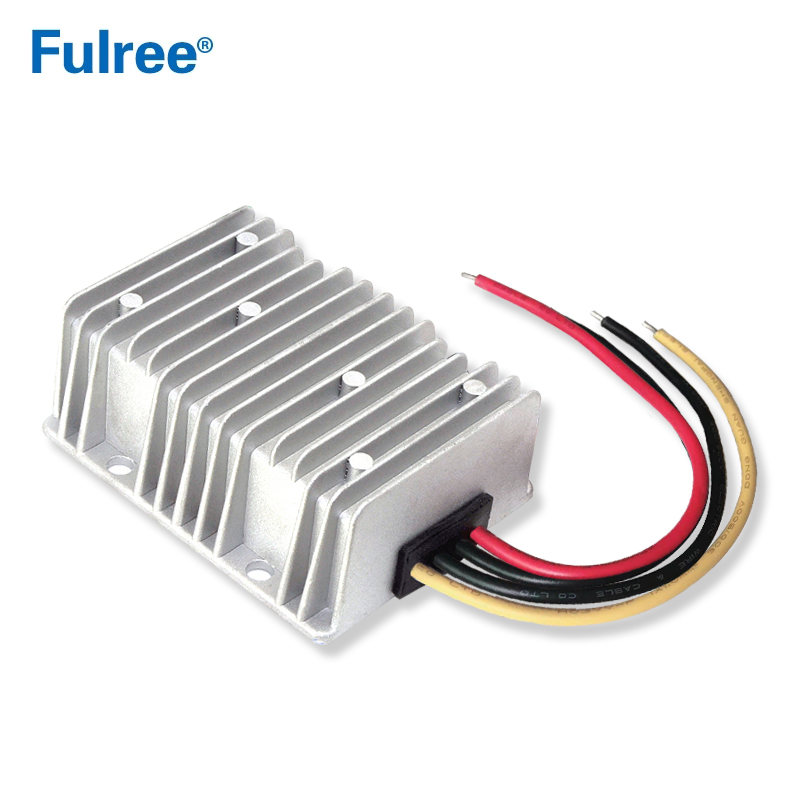

Fulree DC DC Converter 12V to 36V 10A 360W |
|
|
Brand |
Fulree |
|
|
Model No. |
123610 | |
|
Module Properties |
non-isolated boost module |
|
|
Rectification |
synchronous rectification |
|
|
Input |
||
|
Input Voltage |
DC 12V |
|
|
Input Voltage Range |
DC 10-25V |
|
|
Output |
||
|
Output Voltage |
DC 36V |
|
|
Output Current |
10A Max |
|
|
Output Power |
360W Max |
|
|
Conversion Efficiency |
97% (half load), 96% (full load) | |
|
Voltage regulation |
±1% |
|
|
Load regulation |
± 2% |
|
|
Ripple (Full load test) |
< 180mV |
|
|
No-load current |
30mA |
|
|
Working Temperature |
-40~80℃ |
|
|
Waterproof Rating |
IP68 |
|
|
Protection |
Over-current protection |
|
|
Over-voltage protection |
||
|
Overheat protection |
||
|
Input/Output Reverse Polarity Protection |

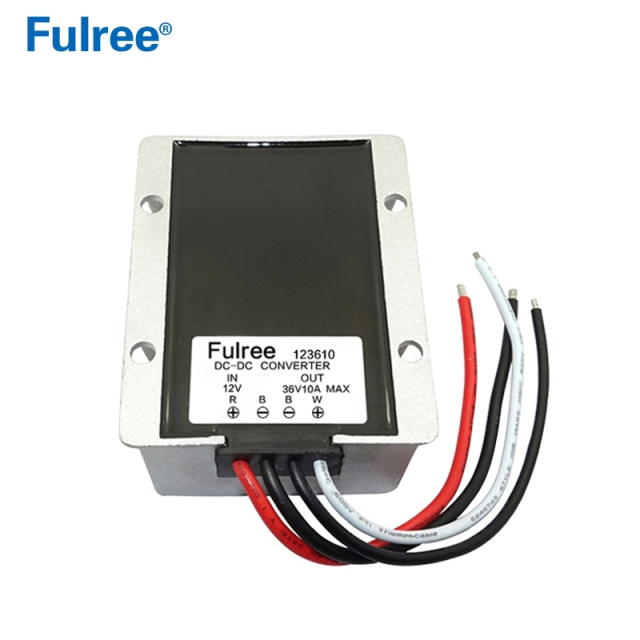

No, please follow label instructions wiring strictly: red for input positive, black is negative, white for output positive. If you need this function, please contact with us to customize it. |
|
|
Application |
Electric motors, fans, Audio, Trucks, Golf Carts ,Forklifts GPS Navigation, Monitoring, Air conditioning LED car display, DVD, LED bulb lights Solar Panel Power Syste |
|
|
Certification |
CE/RoHS |
|
|
Case Material |
Aluminum, anti-shock, anti-drop, anti-moisture, anti-dust and so on |
|
|

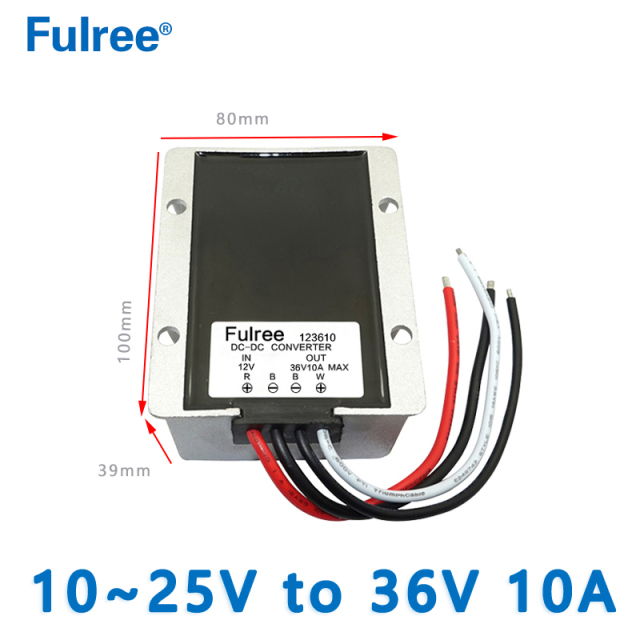

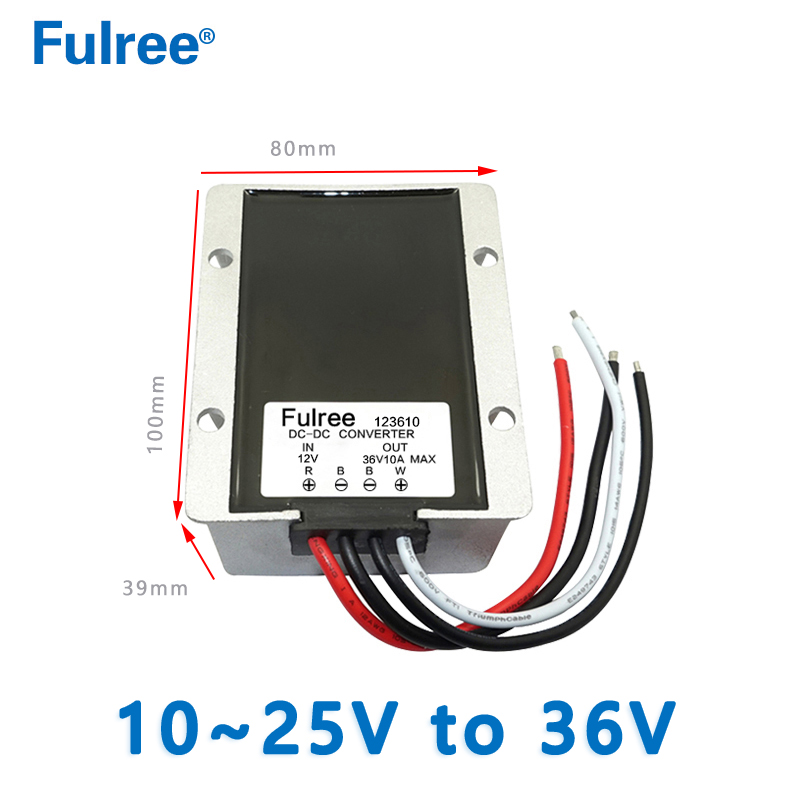

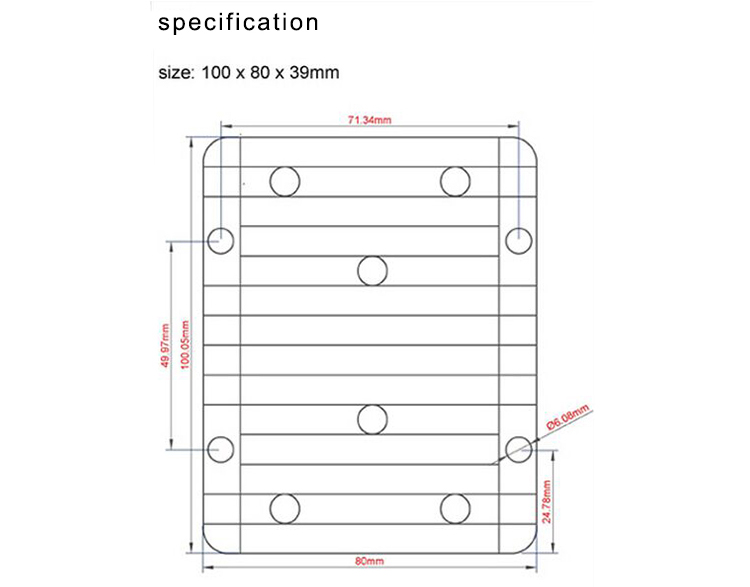

Product Size (L x W x H) |
100*80*39mm |
|
|
Product Weight |
500g |
|
|
Warranty |
12 months, lifetime up to 100,000 hours |
|
|
Cooling Way |
Free air convection |
|
|
OEM&ODM Service |
Accept | |
